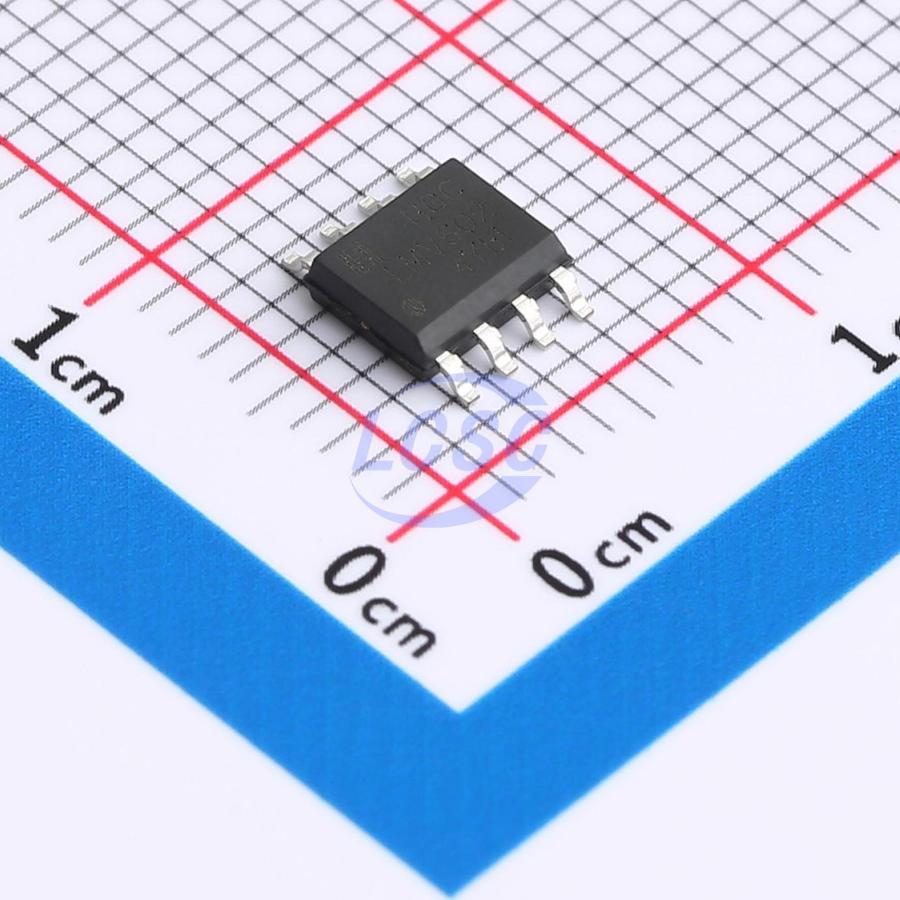

LMV602DRG
84mA 2 3.5mV 600V/ms 1pA 62dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
1MHZ CMOS Rail-to-Rail IO Opamp with RF Filter
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LMV602DRG
- Store part #
- C19723766
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C19723766
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.01 | ₹95.05 |
| 50+ | ₹14.92 | ₹746.00 |
| 150+ | ₹13.18 | ₹1,977.00 |
| 500+ | ₹10.99 | ₹5,495.00 |
| 2,500+ | ₹10.03 | ₹25,075.00 |
| 5,000+ | ₹9.45 | ₹47,250.00 |
5 × ₹19.01
₹95.05
excl. GST
₹112.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV602DRG
₹95.05 for 5 + GST
Specifications
- Output Current
- 84mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 62dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 40uA
- Gain Bandwidth Product
- 1MHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
