STDatasheet (PDF)

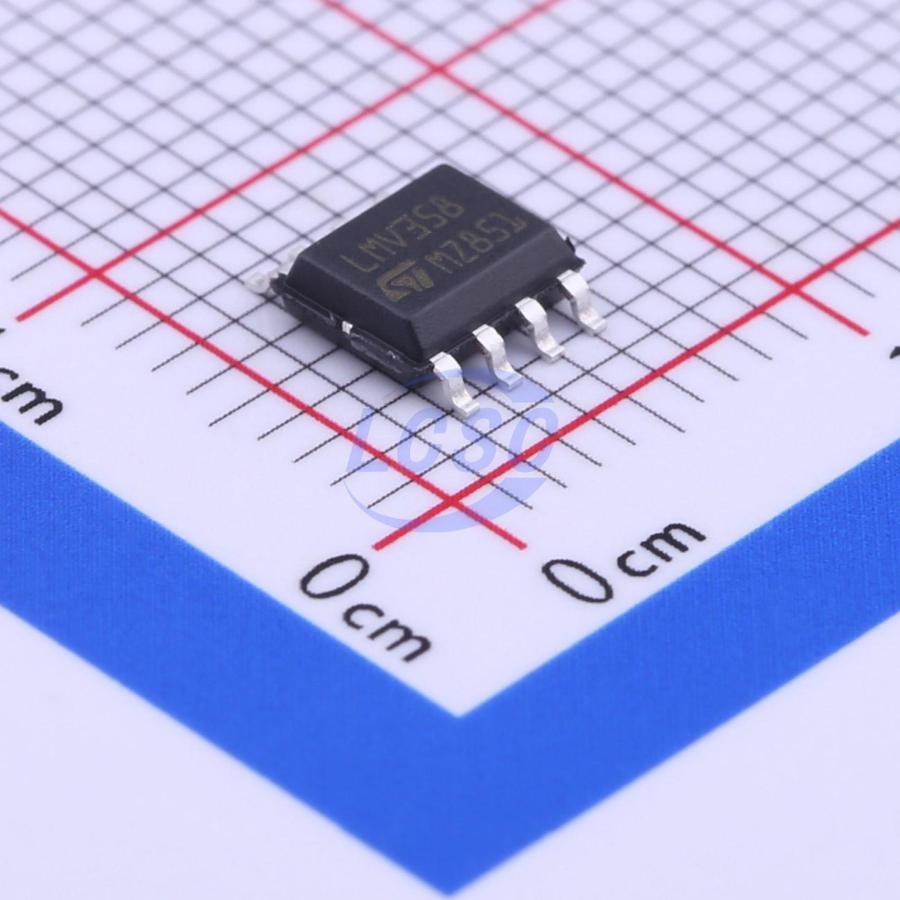

LMV358IDT
46mA 2 3mV 450V/ms 95dB 95nA 145uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Low cost, low power, input/output rail-to-rail operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- LMV358IDT
- Store part #
- C7980
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,140 in stock
#C7980
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.59 | ₹242.95 |
| 50+ | ₹38.84 | ₹1,942.00 |
| 150+ | ₹34.68 | ₹5,202.00 |
| 500+ | ₹24.22 | ₹12,110.00 |
| 2,500+ | ₹21.90 | ₹54,750.00 |
| 5,000+ | ₹20.51 | ₹1,02,550.00 |
5 × ₹48.59
₹242.95
excl. GST
₹286.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358IDT
₹242.95 for 5 + GST
Specifications
- Output Current
- 46mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 450V/ms
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 95nA
- Input Offset Voltage Drift(Vos TC)
- 9uV/℃
- Quiescent Current
- 145uA
- Gain Bandwidth Product
- 1MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The LMV321/358/324 family (single, dual, and quad) answers the need for low cost, general purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 μA consumption current, and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The LMV321 device is housed in the space saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.
Applications
- Battery powered electronic equipment
- Personal medical care (glucose meters)
- Laptops
Key features
- Operating range from VCC = 2.7 to 6 V
- Rail-to-rail input and output
- Extended Vicm (VDD - 0.2 V to VCC + 0.2 V)
- Low supply current (145 μA)
- Gain bandwidth product (1 MHz)
- ESD tolerance (2 kV)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV358ADTR(XBLW)#C18723606XBLW · SOP-8 | XBLW | SOP-8 | 6,840 | ₹9.94 · 6,840 in stock | View |
 | LMV358M/TR#C234204HGSEMI · SOP-8 | HGSEMI | SOP-8 | 605 | ₹11.70 · 605 in stock | View |
 | HT2358ARZ#C2834451HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 425 | ₹14.94 · 425 in stock | View |
 | HT358VRZ#C2834457HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 2,340 | ₹18.36 · 2,340 in stock | View |
 | TPV358S8#C2923372TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,875 | ₹18.09 · 3,875 in stock | View |
