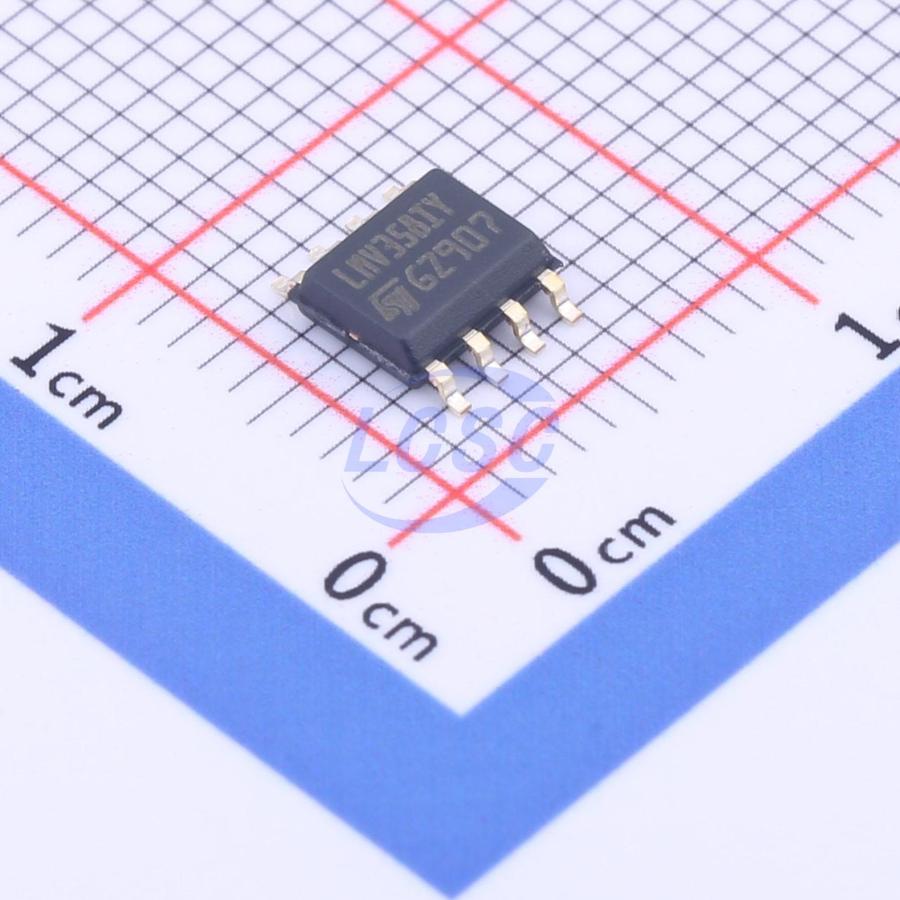

LMV358IYDT
46mA 2 100uV 450V/ms 85dB 85nA 145uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Low-power, rail-to-rail input/output op-amp
- Manufacturer
- ST
- Manufacturer part #
- LMV358IYDT
- Store part #
- C283298
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C283298
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.61 | ₹68.61 |
| 10+ | ₹56.66 | ₹566.60 |
| 30+ | ₹51.45 | ₹1,543.50 |
| 100+ | ₹45.17 | ₹4,517.00 |
| 500+ | ₹42.34 | ₹21,170.00 |
| 1,000+ | ₹40.60 | ₹40,600.00 |
1 × ₹68.61
₹68.61
excl. GST
₹80.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358IYDT
₹68.61 for 1 + GST
Specifications
- Output Current
- 46mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 450V/ms
- Input Offset Current(Ios)
- 25nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 85nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 145uA
- Gain Bandwidth Product
- 1MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The LMV321/358/324 family (single, dual, and quad) answers the need for low cost, general-purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 μA consumption current, and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The LMV321 device is housed in the space-saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.
Applications
- Battery powered electronic equipment
- Personal medical care (glucose meters)
- Laptops
Key features
- Operating range from V_CC = 2.7 to 6 V
- Rail-to-rail input and output
- Extended V_icm (V_DD - 0.2 V to V_CC + 0.2 V)
- Low supply current (145 μA)
- Gain bandwidth product (1 MHz)
- ESD tolerance (2 kV)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV358IDT#C7980ST · SO-8 | ST | SO-8 | 9,140 | ₹48.59 · 9,140 in stock | View |
 | HT8722ARZ#C2976640HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 31,537 | ₹27.16 · 31,537 in stock | View |
 | TLV2462ID#C1347236TI · SOIC-8 | TI | SOIC-8 | On request | Price on request | Quote |
 | TLV2462IDR#C2057632TI · SOIC-8 | TI | SOIC-8 | 8 | ₹555.33 · 8 in stock | View |
 | TLV2462AID#C2869591TI · SOIC-8 | TI | SOIC-8 | 10 | ₹433.69 · 10 in stock | View |
