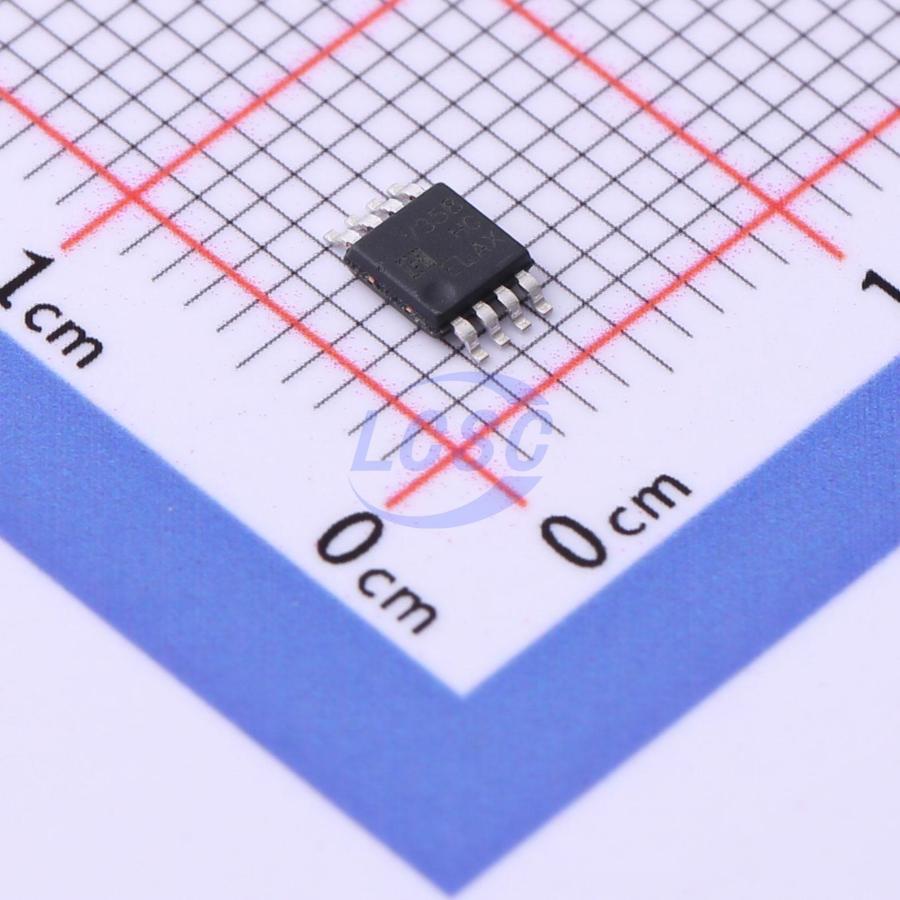

LMV358MM/TR
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output MSOP-8
MSOP-8RoHSActive
1MHz CMoS Rail-to-Rail IO Opamp with RF Filter
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV358MM/TR
- Store part #
- C2926391
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,505 in stock
#C2926391
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.53 | ₹67.65 |
| 50+ | ₹10.93 | ₹546.50 |
| 150+ | ₹9.63 | ₹1,444.50 |
| 500+ | ₹8.65 | ₹4,325.00 |
| 3,000+ | ₹7.34 | ₹22,020.00 |
| 6,000+ | ₹6.95 | ₹41,700.00 |
5 × ₹13.53
₹67.65
excl. GST
₹79.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV358MM/TR
₹67.65 for 5 + GST
Specifications
- Output Current
- 18mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 88dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV602MM/TR#C2926371HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,955 | ₹16.03 · 2,955 in stock | View |
 | OPA2374MM/TR#C3007947HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,248 | ₹61.08 · 2,248 in stock | View |
 | OPA2314MM/TR#C20622959HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,885 | ₹32.80 · 2,885 in stock | View |
| LMV358AMM/TR#C47148928HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,925 | ₹13.07 · 2,925 in stock | View | |
 | AD8606MM/TR#C41415985HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 936 | ₹75.29 · 936 in stock | View |
