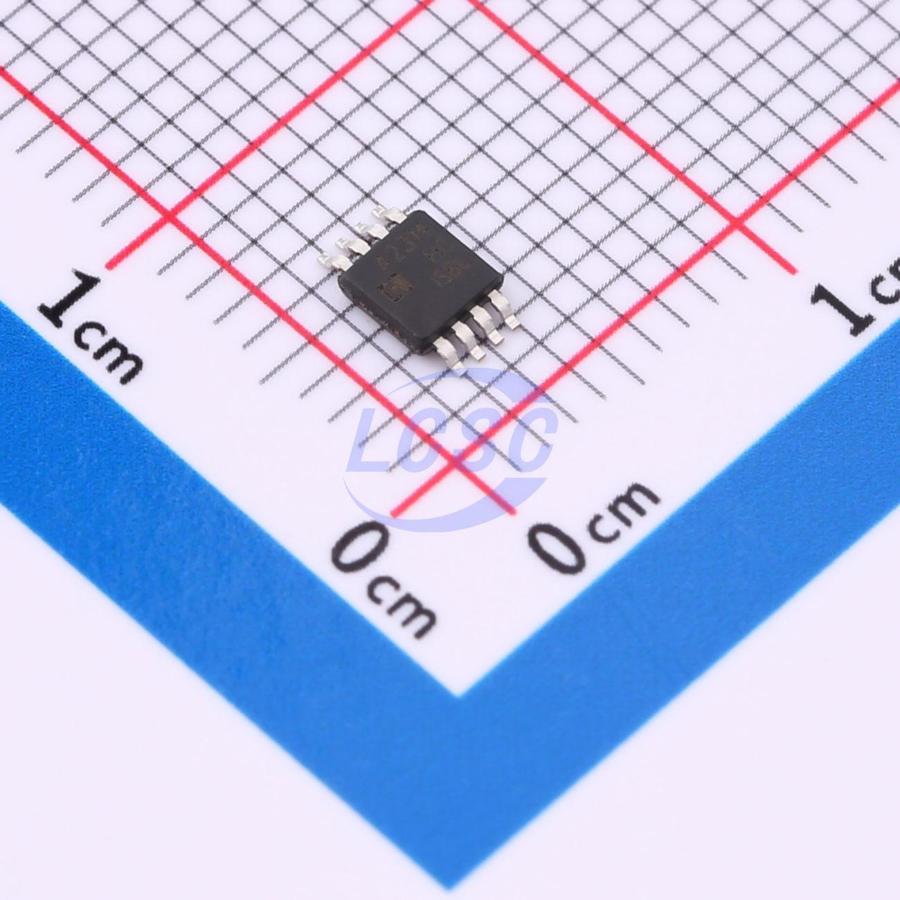

OPA2314MM/TR

53mA 2 3.5mV 1.66V/us 1pA 82dB 250uA 3MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

3MHz CMOS Rail-to-Rail IO Opamps

Manufacturer: HGSEMI
Manufacturer part #: OPA2314MM/TR
Store part #: C20622959
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,885 in stock

#C20622959

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹32.80	₹164.00
50+	₹25.68	₹1,284.00
150+	₹22.62	₹3,393.00
500+	₹18.83	₹9,415.00
3,000+	₹17.13	₹51,390.00
6,000+	₹16.11	₹96,660.00

Quantity (min 5, multiples of 5)

5 × ₹32.80

₹164.00

excl. GST

₹193.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2314MM/TR

₹164.00 for 5 + GST

Specifications

Output Current: 53mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 1.66V/us
Input Offset Current(Ios): 64pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 82dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Quiescent Current: 250uA
Gain Bandwidth Product: 3MHz
Features: Enable/shutdown function;Built-in compensation
Input Voltage Noise Density: 18nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.187 g

Overview

The OPA314/2314/4314 have a high gain-bandwidth product of 3MHz, a slew rate of 1.66V/μs, and a quiescent current of 250μA per amplifier at 5V. They are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for OPA314/2314/4314. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.1V to 5.5V. The OPA314 dual is available in Green SOT23-5 and SOP-8 packages. The OPA2314 dual is available in Green SOP-8 and MSOP-8 packages. The OPA4314 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

Sensors
Active Filters
Cellular and Cordless Phones
Laptops and PDAs
Audio
Handheld Test Equipment
Battery-Powered Instrumentation
A/D Converters

Key features

Single-Supply Operation from +2.1V to +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 3MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Operating Temperature: -40°C to +125°C
Small Package: OPA314 Available in SOP-8 and SOT23-5 Packages OPA2314 Available in SOP-8 and MSOP-8 Packages OPA4314 Available in SOP-14 and TSSOP-14 Packages
