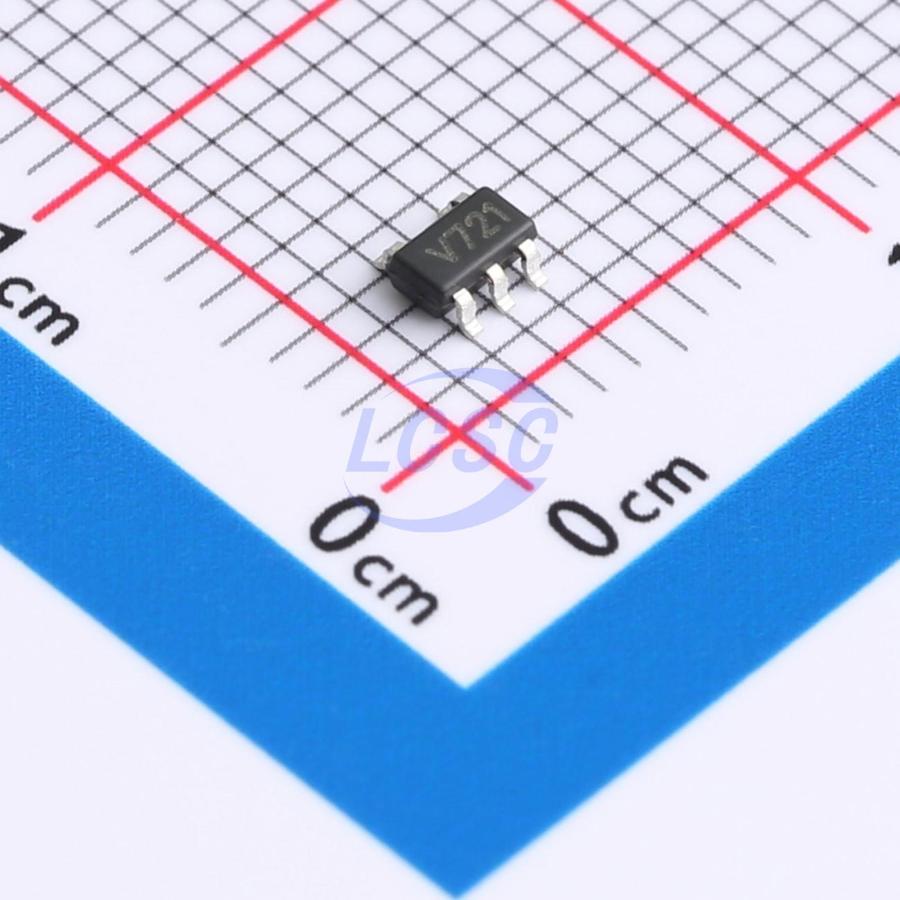

LMV721IDBVR(XBLW)

40mA 1 3.5mV 9V/us 84dB 1pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

10MHz, Rail-to-Rail Operational Amplifiers

Manufacturer: XBLW
Manufacturer part #: LMV721IDBVR(XBLW)
Store part #: C36936517
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,505 in stock

#C36936517

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.38	₹86.90
50+	₹13.75	₹687.50
150+	₹11.92	₹1,788.00
500+	₹10.56	₹5,280.00
3,000+	₹9.46	₹28,380.00
6,000+	₹8.92	₹53,520.00

Quantity (min 5, multiples of 5)

5 × ₹17.38

₹86.90

excl. GST

₹102.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV721IDBVR(XBLW)

₹86.90 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 84dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation
Input Voltage Noise Density: 20nV/√Hz@10kHz
Dual Supply: -2.25V~-1.25V;1.25V~2.25V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The LMV721 (single), LMV722 (dual) and LMV724 (quad) are low noise, low voltage, and micro power operational amplifiers. With an excellent bandwidth of 10MHz, a slew rate of 9V/µs, and a quiescent current of 1000µA per amplifier at 5V, the LMV72X family can be designed into a wide range of applications. The LMV72X op-amps are designed to provide optimal performance in low voltage and low noise systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are 3.5mV. These parts provide rail-to-rail output swing into heavy loads. The LMV72X family is specified for single or dual power supplies of +2.5V to +5.5V. The LMV721 is available in SOT-23-5 and SC70-5 packages. The LMV722 is available in SOP-8, MSOP-8 and TSSOP-8 packages. The LMV724 is available in SOP-14 and TSSOP-14 packages.
