XBLWDatasheet (PDF)

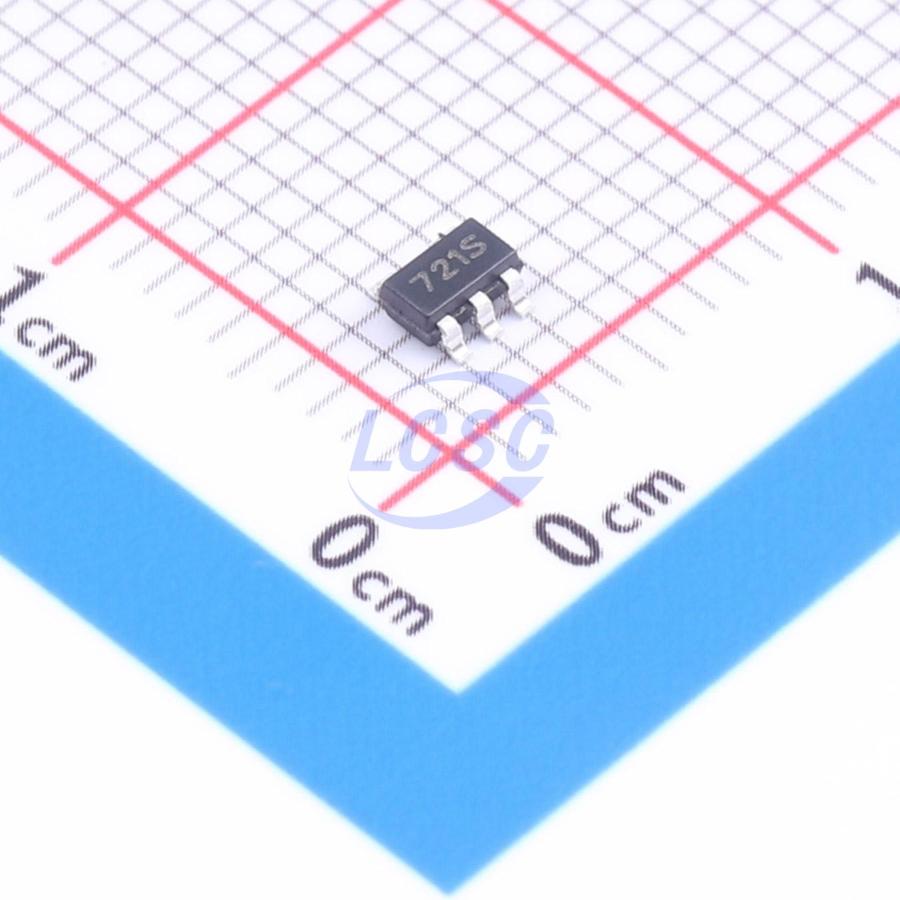

XBL721S
140mA 1 200uV 8.5V/us 1pA 70dB 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5LROHS CompliantActive
Single-channel low-voltage rail-to-rail input/output precision op-amp
- Manufacturer
- XBLW
- Manufacturer part #
- XBL721S
- Store part #
- C53436505
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C53436505
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.82 | ₹88.20 |
| 100+ | ₹7.01 | ₹701.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.82
₹88.20
excl. GST
₹104.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XBL721S
₹88.20 for 10 + GST
Specifications
- Output Current
- 140mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The XBL721, XBL722, and XBL724 series support low-voltage operation with rail-to-rail input and output capability, and offer an excellent speed/power ratio, delivering outstanding bandwidth (10MHz) and slew rate (8.5V/μs). These op-amps are unity-gain stable and feature extremely low input bias current. The XBL721, XBL722, and XBL724 offer low offset voltage, guaranteed no greater than 0.5mV at 25°C, Vs = 5V, VCM = Vs/2. The XBL721, XBL722, and XBL724 series op-amps operate from a single supply of 2.1V to 5.5V or dual supplies of ±1.05V to ±2.75V. These devices are ideal for sensor interfaces, active filters, and portable applications.
Applications
- Sensors
- Active filters
- Test equipment
- Driving A/D converters
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±3.0mV max
- Input voltage range: -0.2V to +5.7V at Vs = 5.5V
- Supply range: +2.1V to +5.5V
- Operating temperature range: -40°C to +125°C
- Compact package: SOT23-5
- Compatible with LMV721, LMV722, LMV724
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV721IDBVR(XBLW)#C36936517XBLW · SOT-23-5 | XBLW | SOT-23-5 | 1,505 | ₹17.38 · 1,505 in stock | View |
