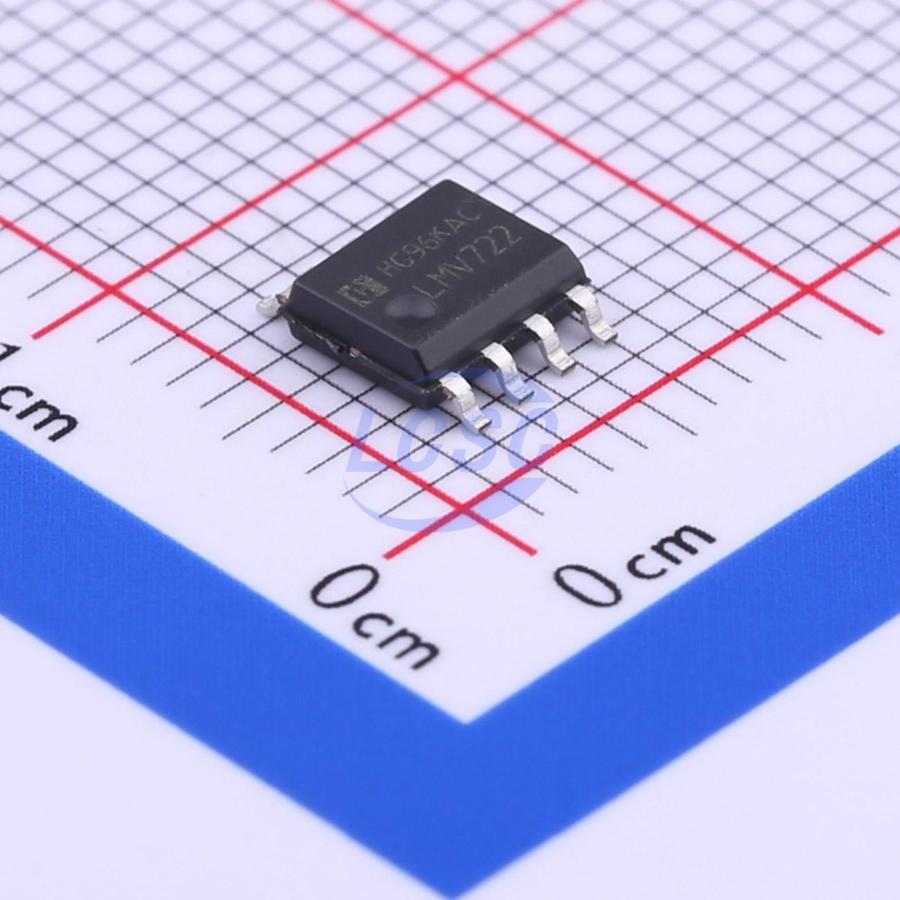

LMV722M/TR
70mA 2 4.6mV 9V/us 1pA 63dB 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
11MHz CMoS Rail-to-Rail IO Opamps
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV722M/TR
- Store part #
- C398145
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,710 in stock
#C398145
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.36 | ₹121.80 |
| 50+ | ₹19.46 | ₹973.00 |
| 150+ | ₹17.36 | ₹2,604.00 |
| 500+ | ₹14.72 | ₹7,360.00 |
| 2,500+ | ₹13.65 | ₹34,125.00 |
| 5,000+ | ₹12.95 | ₹64,750.00 |
5 × ₹24.36
₹121.80
excl. GST
₹143.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV722M/TR
₹121.80 for 5 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4.6mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 63dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 1.1mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 8nV/√Hz@10kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.407 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGV722M/TR#C19193491HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,430 | ₹16.02 · 2,430 in stock | View |
| AD8606M/TR#C41415984HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,370 | ₹53.83 · 2,370 in stock | View | |
 | MCP622M/TR-HG#C54800092HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,475 | ₹66.51 · 2,475 in stock | View |
 | TSV7722M/TR-HG#C54800093HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,470 | ₹74.18 · 2,470 in stock | View |
 | TSV772M/TR-HG#C54800094HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,495 | ₹71.63 · 2,495 in stock | View |
