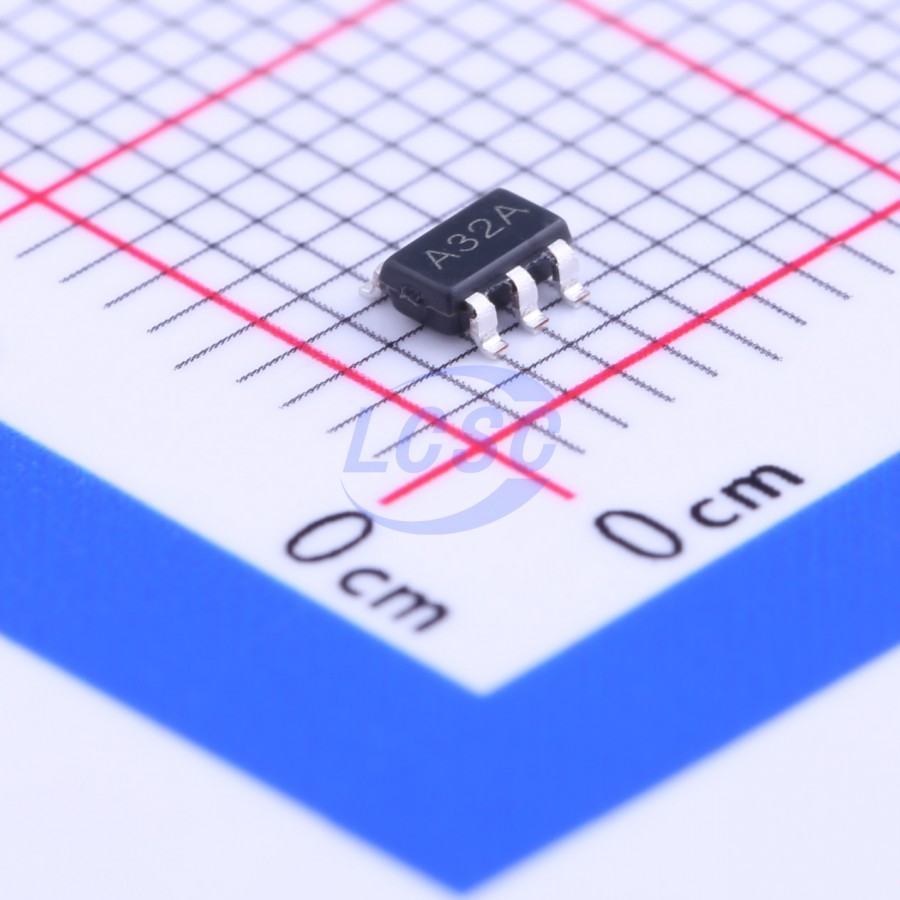

LMV751M5/NOPB
15mA 1 50uV 2.3V/us 103dB 1.5pA 500uA 5MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Low Noise, Low Vos, Single Op Amp
- Manufacturer
- TI
- Manufacturer part #
- LMV751M5/NOPB
- Store part #
- C181395
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,955 in stock
#C181395
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹473.85 | ₹473.85 |
| 10+ | ₹401.93 | ₹4,019.30 |
| 30+ | ₹356.96 | ₹10,708.80 |
| 100+ | ₹297.00 | ₹29,700.00 |
| 500+ | ₹276.14 | ₹1,38,070.00 |
| 1,000+ | ₹267.23 | ₹2,67,230.00 |
1 × ₹473.85
₹473.85
excl. GST
₹559.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMV751M5/NOPB
₹473.85 for 1 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 2.3V/us
- Input Offset Current(Ios)
- 0.2pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 103dB
- Ib - Input Bias Current
- 1.5pA
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 6.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The LMV751 is a high performance CMOS operational amplifier intended for applications requiring low noise and low input offset voltage. It offers modest bandwidth of 4.5MHz for very low supply current and is unity gain stable. The output stage is able to drive high capacitance, up to 1000pF and source or sink 8mA output current. It is supplied in the space saving SOT-23-5 Tiny package. The LMV751 is designed to meet the demands of small size, low power, and high performance required by cellular phones and similar battery operated portable electronics.
Applications
- Cellular Phones
- Portable Equipment
- Radio Systems
Key features
- Low Noise 6.5nV/√Hz
- Low Vos (0.05mV typ.)
- Wideband 4.5MHz GBP typ.
- Low Supply Current 500μA typ.
- Low Supply Voltage 2.7V to 5.0V
- Ground-Referenced Inputs
- Unity Gain Stable
- Small Package
