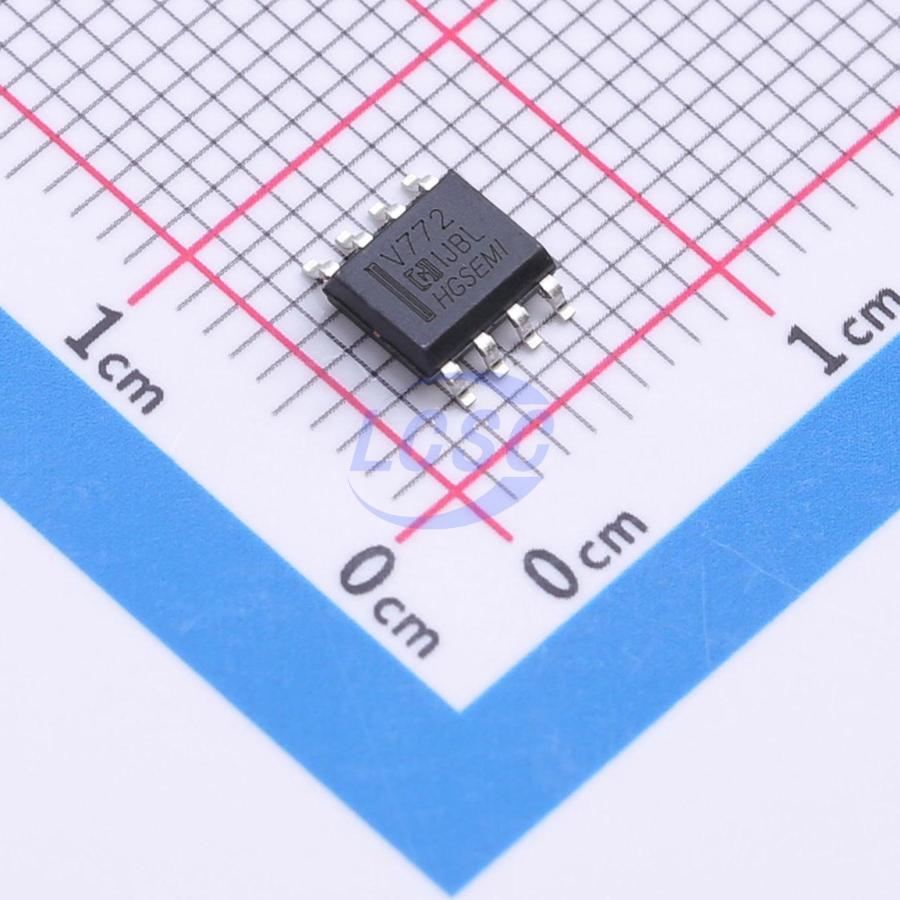

HGSEMI

LMV772M/TR

24mA 2 1mV 1.4V/us 100pA 90dB 3.5MHz 550uA Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Low Offset, Low Noise, Rail-to-Rail Output Operational Amplifiers

Manufacturer: HGSEMI
Manufacturer part #: LMV772M/TR
Store part #: C41380757
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,327 in stock

#C41380757

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹51.70	₹51.70
10+	₹40.52	₹405.20
30+	₹35.73	₹1,071.90
100+	₹29.95	₹2,995.00
500+	₹27.35	₹13,675.00
1,000+	₹25.76	₹25,760.00

Quantity (min 1)

1 × ₹51.70

₹51.70

excl. GST

₹61.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV772M/TR

₹51.70 for 1 + GST

Specifications

Output Current: 24mA
Number of Channels: 2
Vos - Input Offset Voltage: 1mV
Slew Rate: 1.4V/us
Input Offset Current(Ios): 0.004pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 100pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 350nV/℃
Gain Bandwidth Product: 3.5MHz
Quiescent Current: 550uA
Input Voltage Noise Density: 7.5nV/√Hz@10kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.077 g

Overview

The LMV771/LMV772/LMV774 are Single, Dual, and Quad low noise precision operational amplifiers intended for use in a wide range of applications. Other important characteristics of the family include extended operating temperature range, -40°C to 125°C, tiny SC70-5 package for LMV771, and low input bias current. The extended temperature range of -40°C to 125°C allows the LMV771/LMV772/LMV774 to accommodate a broad range of applications. The LMV771/LMV772/LMV774 are guaranteed to operate over the voltage range of 2.7V to 5.0V and all have rail-to-rail output. The LMV771/LMV772/LMV774 family is designed for precision, low noise, low voltage, and miniature systems. These amplifiers provide rail-to-rail output swing into heavy loads. The maximum input offset voltage for LMV771 is 850uV at room temperature and the input common mode voltage range includes ground. The LMV771 is offered in the tiny SC70-5 package, LMV772 in space saving MSOP-8 and SOP-8, and the LMV774 in SOP-14 and TSSOP-14.

Applications

Transducer amplifier
Instrumentation amplifier
Precision current sensing
Data acquisition systems
Active filters and buffers
Sample and hold
Portable/battery powered electronics

Key features

Guaranteed 2.7V and 5V specifications
Maximum VOS (LMV771): 850uA(limit)
Voltage Noise; f = 100Hz: 12.5nV/√Hz; f = 10kHz: 7.5nV/√Hz
Rail-to-Rail output swing; w/600Ω load; 100mV from rail w/2kΩ load; 50mV from rail
Open loop gain w/2kΩ load: 100dB
VCM: 0 to V+ - 0.9V
Supply current (per amplifier): 550uA
Gain bandwidth product: 3.5MHz
Temperature range: -40°C to 125°C
