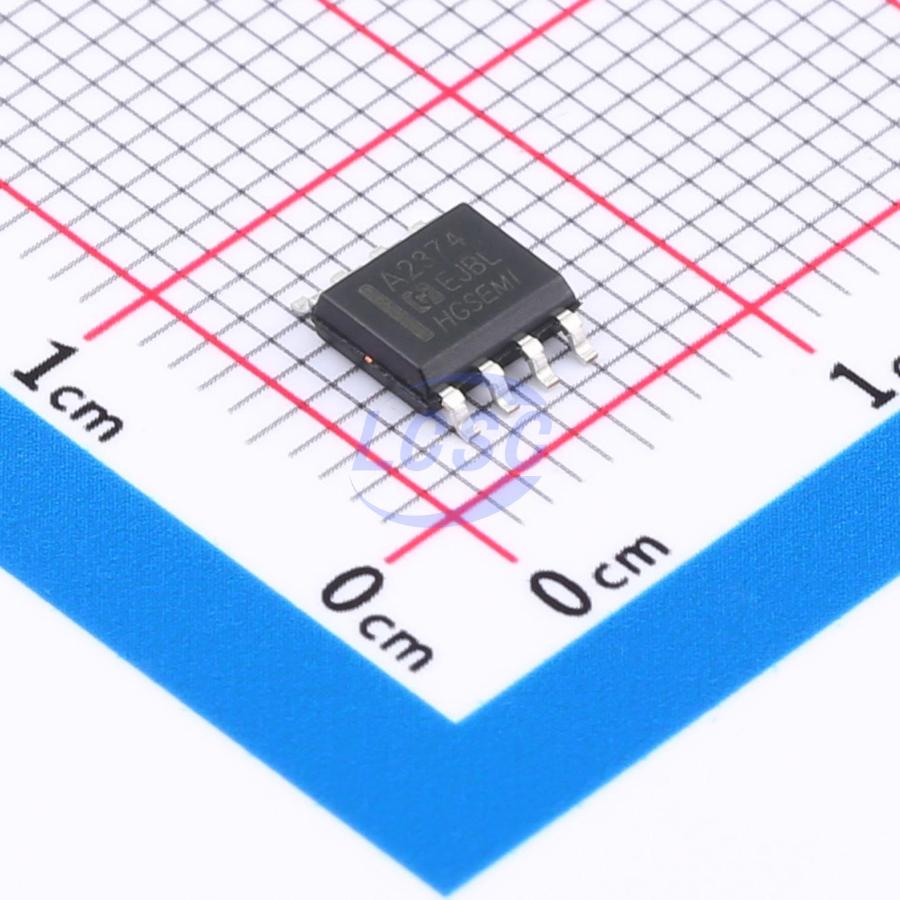

OPA2374M/TR
53mA 2 5mV 5V/us 10pA 90dB 585uA 6.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
6.5MHz, Rail-to-Rail I/O, CMos Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA2374M/TR
- Store part #
- C444392
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,457 in stock
#C444392
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.86 | ₹45.86 |
| 10+ | ₹40.21 | ₹402.10 |
| 30+ | ₹38.02 | ₹1,140.60 |
| 100+ | ₹34.98 | ₹3,498.00 |
| 500+ | ₹30.85 | ₹15,425.00 |
| 1,000+ | ₹29.99 | ₹29,990.00 |
1 × ₹45.86
₹45.86
excl. GST
₹54.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2374M/TR
₹45.86 for 1 + GST
Specifications
- Output Current
- 53mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 6.5uV/℃
- Quiescent Current
- 585uA
- Gain Bandwidth Product
- 6.5MHz
- Input Voltage Noise Density
- 10nV/√Hz@10kHz
- Dual Supply
- -2.75V~-1.15V;1.15V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.223 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV722AIM/TR#C49328978HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,155 | ₹17.38 · 2,155 in stock | View |
 | LMV722M/TR#C398145HGSEMI · SOP-8 | HGSEMI | SOP-8 | 3,710 | ₹24.36 · 3,710 in stock | View |
| AD8606M/TR#C41415984HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,370 | ₹53.83 · 2,370 in stock | View | |
 | HGV722M/TR#C19193491HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,430 | ₹16.02 · 2,430 in stock | View |
 | MCP622M/TR-HG#C54800092HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,475 | ₹66.51 · 2,475 in stock | View |
