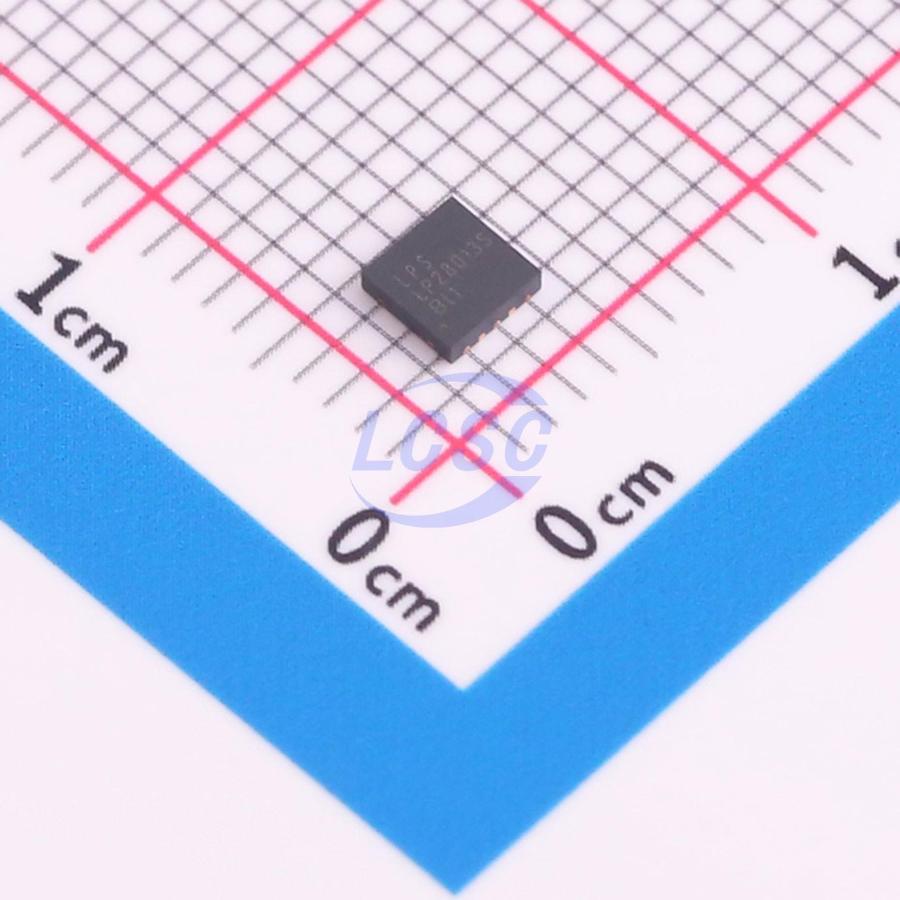

LP28013SQVF
Lithium Battery 1A TDFN-10-EP(3x3) Battery Management
1A Single Chip Li-lon and Li-Polymer Charger
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP28013SQVF
- Store part #
- C2890380
- Package / case
- TDFN-10-EP(3x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,565 in stock
#C2890380
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.98 | ₹149.90 |
| 50+ | ₹26.37 | ₹1,318.50 |
| 150+ | ₹24.82 | ₹3,723.00 |
| 500+ | ₹22.89 | ₹11,445.00 |
| 2,500+ | ₹22.03 | ₹55,075.00 |
| 5,000+ | ₹21.51 | ₹1,07,550.00 |
5 × ₹29.98
₹149.90
excl. GST
₹176.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LP28013SQVF
₹149.90 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Quiescent Current
- 160uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Short-Circuit Protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.489 g
Overview
The LP28013S is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally by ISET pin with a single resistor. The LP28013S automatically terminates the charge cycle when the charge current drops to 1/10 setting current value after the final float voltage is reached. Other features include charge current monitor, under voltage lockout, automatic recharge, status pins and battery temperature detection.
Applications
- Portable Media Players/Game
- Power Bank
- Semiconductor
- Bluetooth Applications
- PDA/MID
Key features
- Input Voltage up to 28V
- Input Over Voltage Protection: 7V
- Short-circuit protection
- Programmable Charge Current up to 1A
- 1μA Battery Reverse Current
- Over temperature Sensing Protection
- Protection of Reverse Connection of Battery
- Constant-Current/Constant-Voltage Operation with Thermal Regulation
- TDFN-10 Package
- RoHS Compliant and 100% Lead (Pb)-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP28303AQVF#C517000LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 11,290 | ₹46.16 · 11,290 in stock | View |
 | LP4078QVF#C42460088LOWPOWER · DFN-10-EP(3x3) | LOWPOWER | DFN-10-EP(3x3) | 4,350 | ₹32.47 · 4,350 in stock | View |
 | LP28013AQVF#C517139LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 4,315 | ₹37.35 · 4,315 in stock | View |
 | LP28013QVF-44#C517140LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 930 | ₹51.97 · 930 in stock | View |
 | LP28013HQVF-435#C2890381LOWPOWER · TDFN-10-EP(3x3) | LOWPOWER | TDFN-10-EP(3x3) | 1,900 | ₹30.57 · 1,900 in stock | View |
