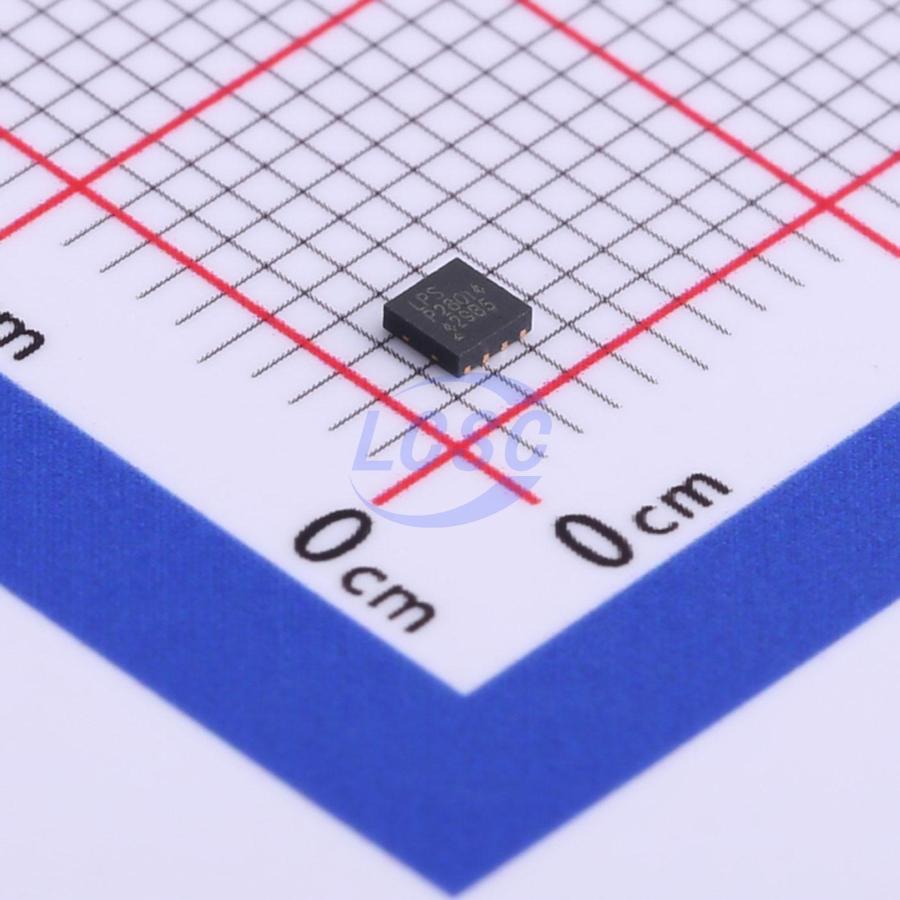

LP28014SQVF
Lithium Battery 500mA TDFN-8-EP(2x2) Battery Management
500mA Single Chip Li-Ion and Li-Polymer Charger
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP28014SQVF
- Store part #
- C517146
- Package / case
- TDFN-8-EP(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,597 in stock
#C517146
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹22.03 | ₹22.03 |
| 10+ | ₹19.24 | ₹192.40 |
| 30+ | ₹18.03 | ₹540.90 |
| 100+ | ₹16.54 | ₹1,654.00 |
| 500+ | ₹15.88 | ₹7,940.00 |
| 1,000+ | ₹15.48 | ₹15,480.00 |
1 × ₹22.03
₹22.03
excl. GST
₹26.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LP28014SQVF
₹22.03 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Short-Circuit Protection;Reverse current blocking;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The LP28014S is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. Its TDFN-8 package and low external component count make the LP28014S ideally suited for portable applications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be ISET programmed externally with a single resistor. When the input supply is removed, the LP28014S automatically enters a low current state, dropping the battery drain current to less than <1μA. Other features include charge current monitor, under voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
Applications
- Portable Media Players/Game
- Power Bank
- Bluetooth Applications PDA/MID
Key features
- input voltage up to 28V
- input Over Voltage Protection: 7V
- Short-circuit protection
- Programmable Charge Current: 50mA to 500mA
- <1μA Battery Reverse Current
- Protection of Reverse Connection of Battery
- No MOSFET, Sense Resistor or Blocking Diode Required
- Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
- TDFN-8 2mmx2mm Package
- RoHS Compliant and 100% Lead (Pb)-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP4069QVF#C2902420LOWPOWER · TDFN-8L(2x2) | LOWPOWER | TDFN-8L(2x2) | 3,995 | ₹19.49 · 3,995 in stock | View |
 | LP4066QVF#C2935090LOWPOWER · TDFN-8-EP(2x2) | LOWPOWER | TDFN-8-EP(2x2) | 1,876 | ₹35.46 · 1,876 in stock | View |
 | LP4061QVF#C2935089LOWPOWER · TDFN-8-EP(2x2) | LOWPOWER | TDFN-8-EP(2x2) | 184 | ₹21.98 · 184 in stock | View |
 | LP4069PQVF#C42460085LOWPOWER · TDFN-8-EP(2x2) | LOWPOWER | TDFN-8-EP(2x2) | 2,990 | ₹18.22 · 2,990 in stock | View |
 | LP4069QVF-435#C2902421LOWPOWER · TDFN-8L(2x2) | LOWPOWER | TDFN-8L(2x2) | On request | Price on request | Quote |
