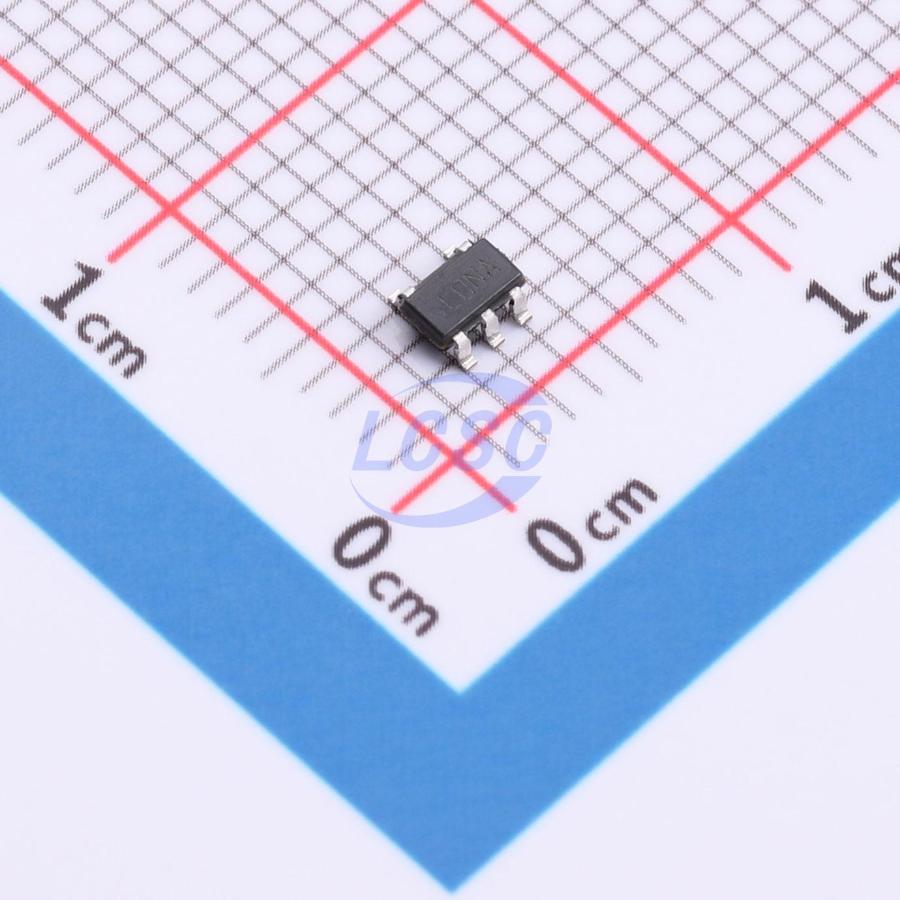

LP2980AIM5X-2.5/NOPB

The LP2980-N is a 50-mA, fixed-output voltage regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized VIP (Vertically Integrated PNP) process, the LP2980-N delivers unequaled performance in all specifications critical to battery-powered designs: Dropout voltage: Typically 120 mV at 50-mA load, and 7 mV at 1-mA load. Ground pin current: Typically 375 μA at 50-mA load, and 80 μA at 1-mA load. Sleep mode: Less than 1 - μA quiescent current when ON/OFF pin is pulled to less than 0.18 V. Minimum part count: Requires only a 1-μF capacitor on the regulator output. Precision output: Initial output voltage tolerance of ±0.5% (A grade). 5-V, 4.7-V, 3.3-V, 3-V, and 2.5-V versions available as standard products.

Applications

• Cellular Phone
• Palmtop/Laptop Computer
• Personal Digital Assistant (PDA)
• Camcorder
• Personal Stereo
• Camera

Key features

• 2.1-V to 16-V Input Voltage Range 5-V, 4.7-V, 3.3-V, 3-V, and 2.5-V Output Versions
• Ultra-Low-Dropout Voltage Output Voltage Accuracy 0.5% (A Grade)
• Ensured 50-mA Output Current Requires Only 1-μF External Capacitance
• <1 - μA Quiescent Current When Shutdown Low Ground Pin Current at All Load Currents High Peak Current Capability (150 mA Typical)
• Wide Supply Voltage Range (16 V Maximum)
• Fast Dynamic Response to Line and Load
• Low ZOUT Over Wide Frequency Range
• Overtemperature and Overcurrent Protection
• -40°C to 125°C Junction Temperature Range
