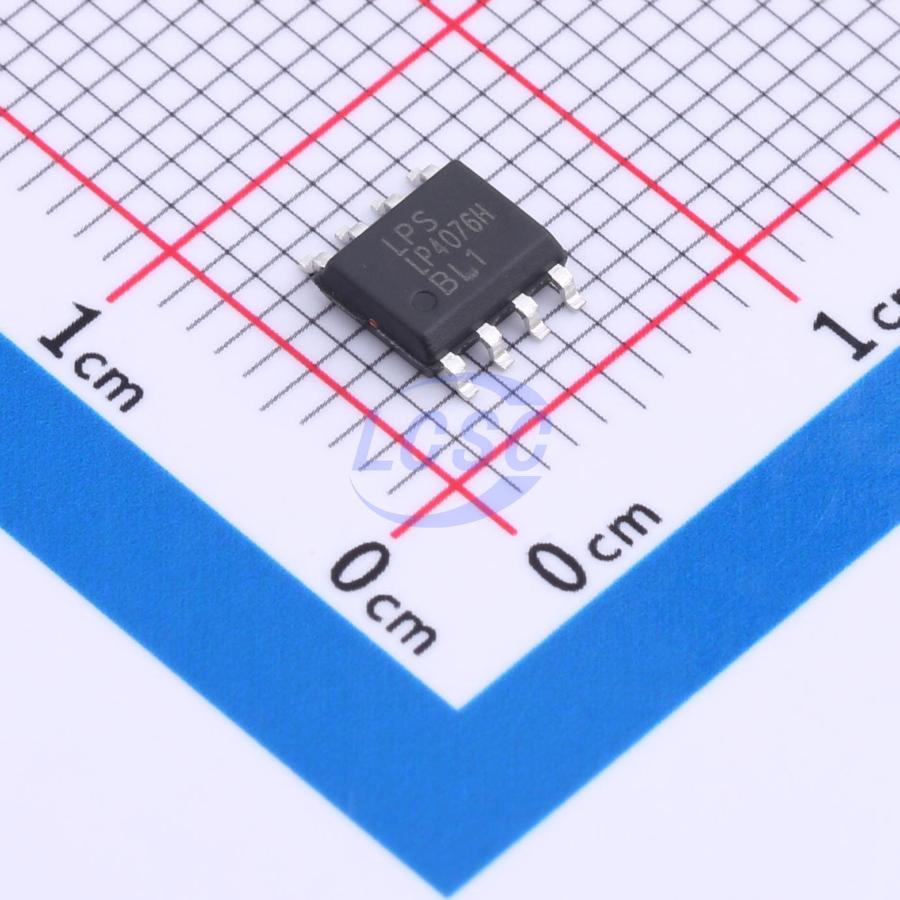

LP4076HSPF-435
Lithium Battery 1A ESOP-8 Battery Management
1A Single Chip Li-lon and Li-Polymer Charger
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP4076HSPF-435
- Store part #
- C2890370
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C2890370
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.56 | ₹107.80 |
| 50+ | ₹18.83 | ₹941.50 |
| 150+ | ₹17.67 | ₹2,650.50 |
| 500+ | ₹16.20 | ₹8,100.00 |
| 2,500+ | ₹15.55 | ₹38,875.00 |
| 4,000+ | ₹15.16 | ₹60,640.00 |
5 × ₹21.56
₹107.80
excl. GST
₹127.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LP4076HSPF-435
₹107.80 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Quiescent Current
- 2uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~28V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Short-Circuit Protection;Reverse current blocking;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.181 g
Overview
The LP4076H is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. Its ESOP8 package and low external component count make the device ideally suited for portable applications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at VFLOAT, and the charge current can be programmed externally by ISET pin with a single resistor. The LP4076H automatically terminates the charge GPSen cycle when the charge current drops to 1/10 setting current value after the final float voltage is reached. When the input supply is removed, the device automatically enters a low current state, dropping the battery drain current to less than 2μA. Other features include charge current monitor, under voltage lockout, automatic recharge and charge status pins.
Applications
- Portable Media Players/Game Power Bank
- Bluetooth Applications
- PDA/MID
Key features
- Input Voltage up to 28V
- Input Over Voltage Protection：7V
- Short-circuit protection
- Programmable Charge Current up to 1A
- 1μA Battery Reverse Current
- Protection of Reverse Connection of Battery
- No MOSFET, Sense Resistor or Blocking Diode Required
- Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
- ESOP8 Package
- RoHS Compliant and 100% Lead (Pb)-Free
