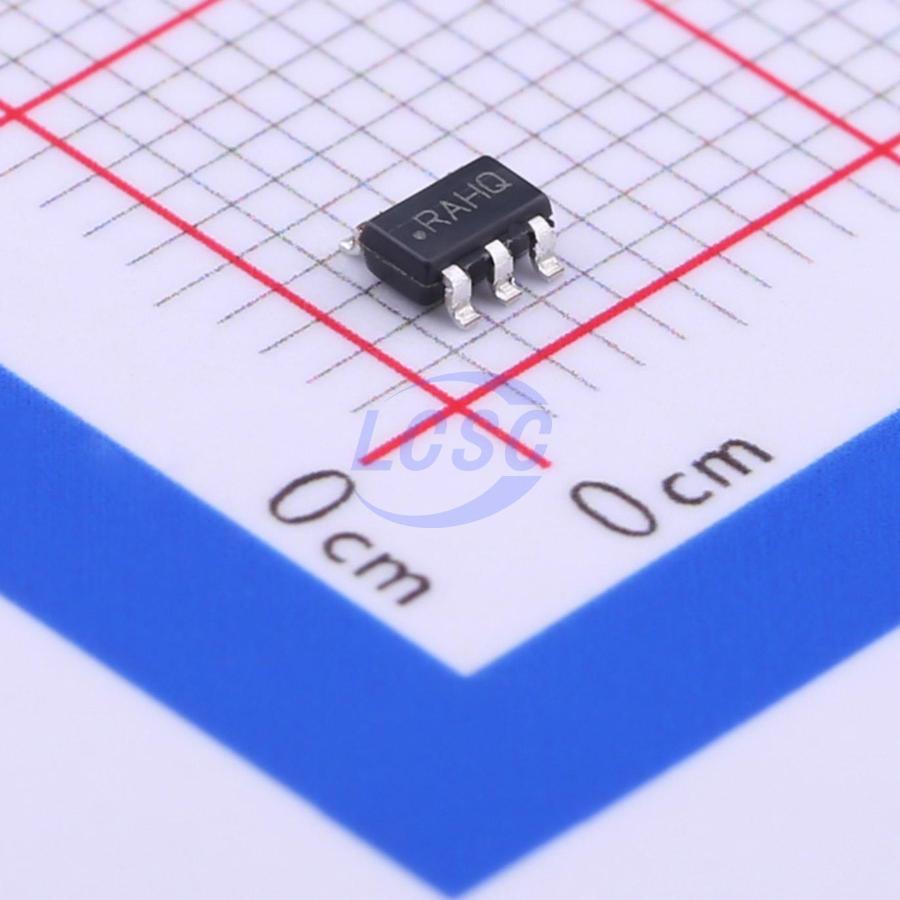

LP5907QMFX-3.3Q1

The LP5907-Q1 is a linear regulator capable of delivering 250mA output current. This device is specifically designed for RF and analog circuits, meeting their requirements for low noise, high PSRR, low quiescent current, and low line or load transient response. The LP5907-Q1 employs innovative design techniques to deliver excellent noise performance without a noise bypass capacitor, while supporting remote placement of the output capacitor. This device is designed to work with 1μF input and 1μF output ceramic capacitors (no separate noise bypass capacitor required). Fixed output voltage ranges from 1.20V to 4.50V (in 25mV increments).

Applications

• Infotainment
• Instrumentation
• Body Electronics

Key features

• AEC-Q100 Grade 1 compliant
• Stable performance with 1µF ceramic input and output capacitors
• No noise bypass capacitor required
• Remote output capacitor placement supported
• Thermal overload and short-circuit protection
• Operating junction temperature range: -40°C to 125°C
• Input voltage range: 2.2V to 5.5V
• Output voltage range: 1.2V to 4.5V
• Output current: 250mA
• Low output voltage noise: <10μV RMS
• PSRR: 82dB at 1kHz
• Output voltage accuracy: ±2%
• Near-zero IQ (disabled): <1μA
• Ultra-low IQ (enabled): 12μA
• Start-up time: 80μs
• Low dropout: 120mV (typical)
