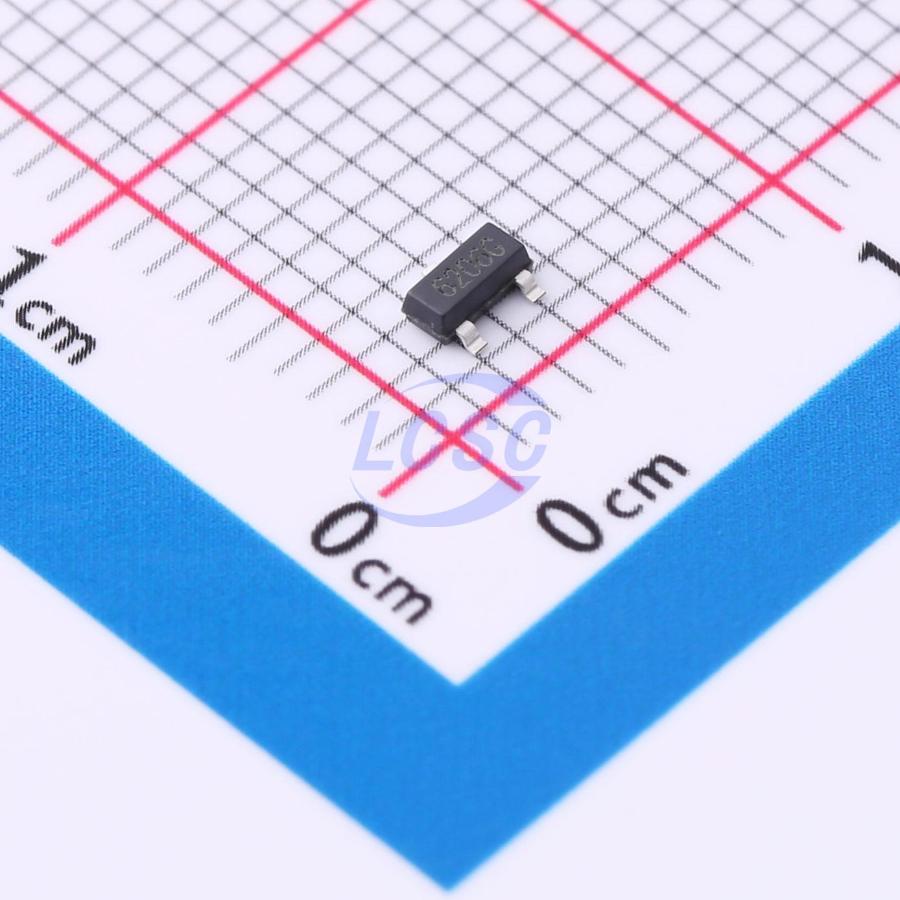

LR6206B-U33
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT23B
SOT23BROHS CompliantActive
Low-power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR6206B-U33
- Store part #
- C5336486
- Package / case
- SOT23B
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,320 in stock
#C5336486
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.31 | ₹66.20 |
| 200+ | ₹2.61 | ₹522.00 |
| 600+ | ₹2.22 | ₹1,332.00 |
| 3,000+ | ₹1.98 | ₹5,940.00 |
| 9,000+ | ₹1.79 | ₹16,110.00 |
| 21,000+ | ₹1.67 | ₹35,070.00 |
20 × ₹3.31
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR6206B-U33
₹66.20 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
The LR6206B series is a low-power linear regulator based on CMOS technology, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages in the range of 1.2V to 5.0V. The built-in short-circuit protection circuit ensures safe operation and extended service life. The LR6206B delivers 300mA output current with minimal input-output voltage differential while maintaining excellent regulation. Due to the low dropout between input and output, these devices are particularly well-suited for computers, consumer products, and industrial equipment.
Applications
- Battery-powered devices
- Communication equipment
- Consumer electronics
- Audio/video equipment
- Home appliance power supply systems
- Portable computer power supply systems
Key features
- Low input power consumption
- Low input dropout voltage
- Input voltage rating: 6.5V
- Low quiescent current: 6uA
- High output accuracy: ±2%
- Integrated short-circuit protection
