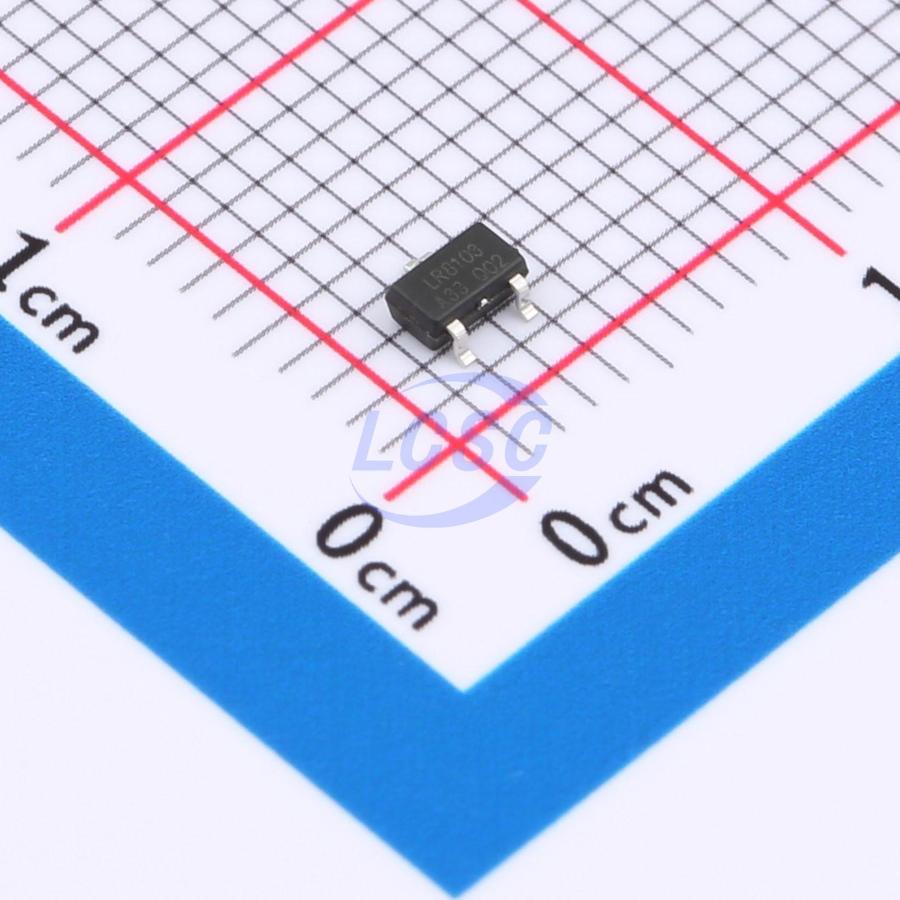

LR8103A-T33(0.8uA)
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103A-T33(0.8uA)
- Store part #
- C29781225
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C29781225
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.88 | ₹97.60 |
| 200+ | ₹3.86 | ₹772.00 |
| 600+ | ₹3.36 | ₹2,016.00 |
| 3,000+ | ₹2.98 | ₹8,940.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
| 21,000+ | ₹2.51 | ₹52,710.00 |
20 × ₹4.88
₹97.60
excl. GST
₹115.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103A-T33(0.8uA)
₹97.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.046 g
Overview
The LR8103 series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages in the range of 1.2V to 5.0V, with an output current capability of 300mA. A built-in short-circuit protection circuit ensures safe operation and extended service life.
