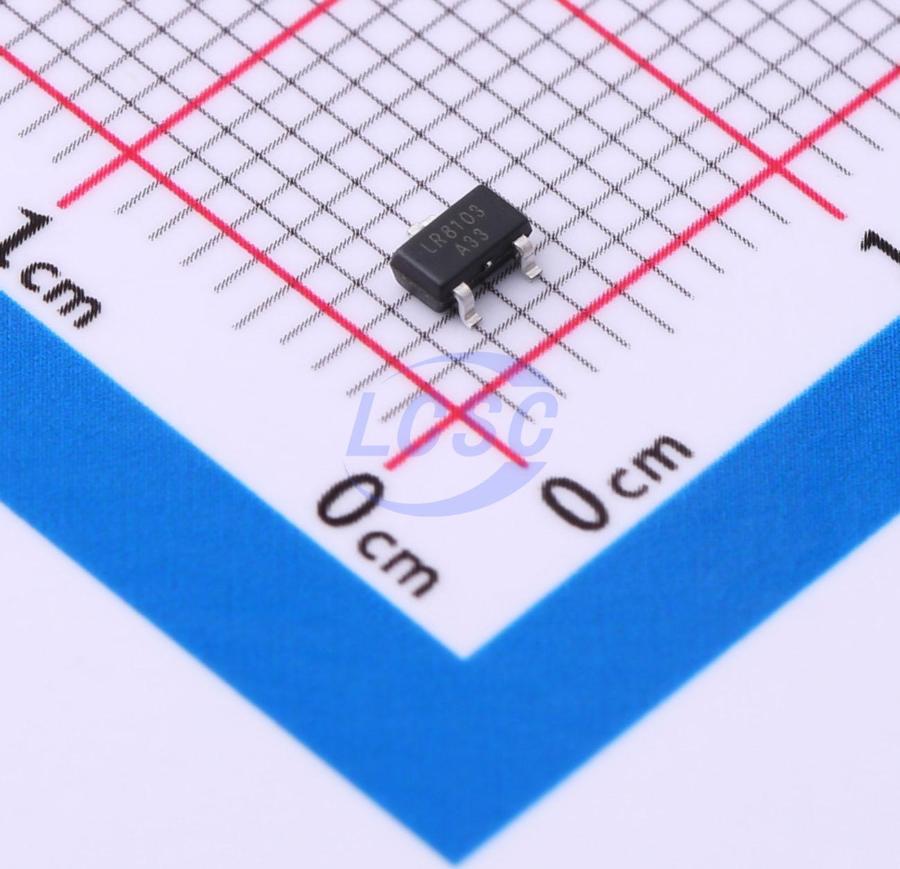

LR8103A-T33
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103A-T33
- Store part #
- C5336479
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C5336479
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.26 | ₹62.60 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.39 | ₹1,317.00 |
| 3,000+ | ₹3.61 | ₹10,830.00 |
| 6,000+ | ₹3.24 | ₹19,440.00 |
| 9,000+ | ₹3.06 | ₹27,540.00 |
10 × ₹6.26
₹62.60
excl. GST
₹73.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103A-T33
₹62.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
Low input power consumption Low dropout voltage Input voltage rating: 6.5V Low quiescent current: 0.8uA High output accuracy: ±1% Integrated short-circuit protection The LR8103 series is a low-power LDO linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages ranging from 1.2V to 5.0V, capable of delivering 300mA output current. The built-in short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Battery-powered devices
- Communication equipment
- Consumer electronics
- Audio/video equipment
- Home appliance power supply systems
- Portable computer power supply systems
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8203A-T33#C5220841LR · SOT-23-3L | LR | SOT-23-3L | 2,140 | ₹6.30 · 2,140 in stock | View |
 | LR6206B-U33#C5336486LR · SOT23B | LR | SOT23B | 2,320 | ₹3.31 · 2,320 in stock | View |
 | LR8103A-T33(0.8uA)#C29781225LR · SOT-23-3L | LR | SOT-23-3L | 1,500 | ₹4.88 · 1,500 in stock | View |
 | LR8323A-T33(24V300mA)#C29781215LR · SOT-23-3L | LR | SOT-23-3L | 1,630 | ₹9.68 · 1,630 in stock | View |
