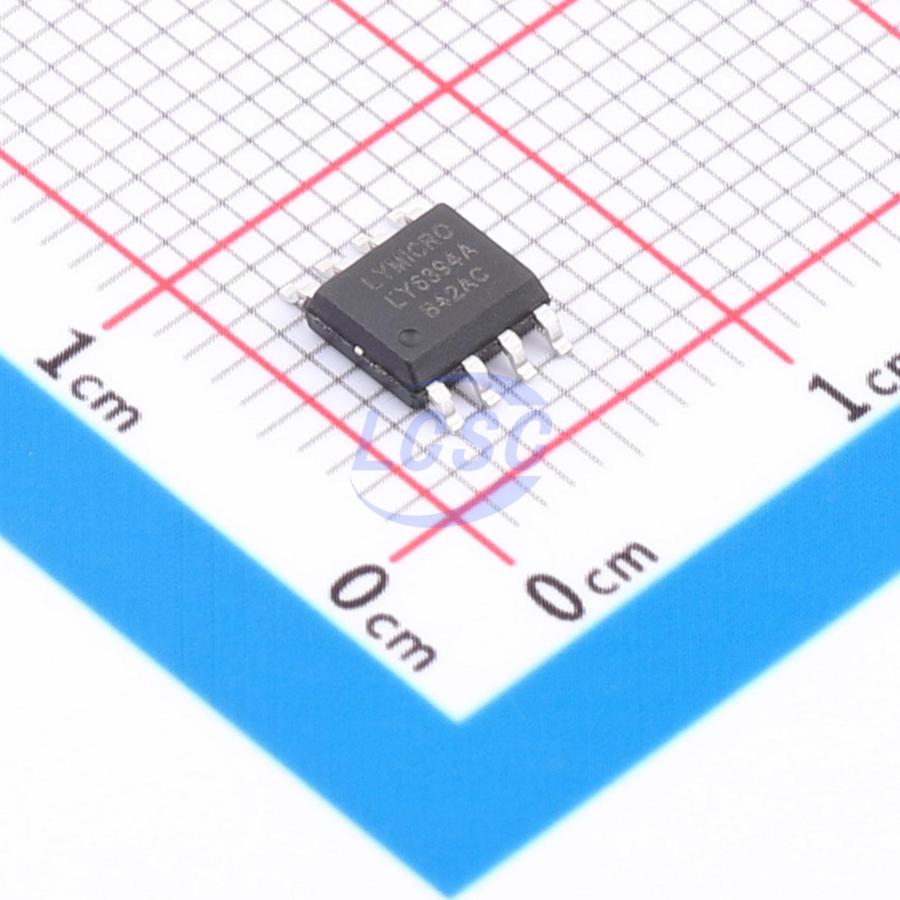

LY6394A
Battery Charging IC Battery Protection IC Lithium Battery ESOP-8
Power management chip for TWS earbud charging case
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- LY6394A
- Store part #
- C46613896
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,945 in stock
#C46613896
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.42 | ₹62.10 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 2,500+ | ₹6.76 | ₹16,900.00 |
| 4,000+ | ₹6.38 | ₹25,520.00 |
5 × ₹12.42
₹62.10
excl. GST
₹73.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LY6394A
₹62.10 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Quiescent Current
- 4.5uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.6V~5.5V
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.156 g
Overview
LY6394 is a fully integrated power management IC designed for Bluetooth earphone charging cases. The chip integrates lithium battery charging management, a synchronous boost converter, battery gauge, and protection function modules. It supports automatic load detection with auto-shutdown mode and 5V always-on output mode. In auto-shutdown mode, the default standby voltage is 2V; by connecting a pull-up resistor from the BAT pin to the OUT pin, the standby voltage can be set to the battery voltage. The standby current in auto-shutdown mode is 4.5uA, while the chip standby current in 5V always-on output mode is 45uA.
Applications
- Bluetooth earphone charging case
- Power bank
- Portable lithium battery applications
Key features
- Auto on/off and always-on output modes, freely configurable
- Light-load auto-shutdown current: 7mA
- Standby voltage options: 2V or battery voltage
- Adapter adaptive voltage: 4.6V
- Power-down mode standby current: 4.5uA
- 5V always-on output mode standby current: 45uA
- Charging current options: 200mA or 300mA
- Maximum discharge current: 500mA
- Output overvoltage, short-circuit, and overcurrent protection
- Intelligent temperature control
- Supports 1~4 LED battery level indication
- Supports single-click to power on, long-press to power off
- Boost efficiency up to 93%
- ESOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LY6394EA#C46613898Lingyang Micro · ESOP-8 | Lingyang Micro | ESOP-8 | 3,985 | ₹12.42 · 3,985 in stock | View |
 | LY6394TA#C46613900Lingyang Micro · ESOP-8 | Lingyang Micro | ESOP-8 | 3,940 | ₹9.25 · 3,940 in stock | View |
 | LY6394B#C46613897Lingyang Micro · ESOP-8 | Lingyang Micro | ESOP-8 | 680 | ₹12.45 · 680 in stock | View |
 | LY6394EB#C46613899Lingyang Micro · ESOP-8 | Lingyang Micro | ESOP-8 | 4,000 | ₹8.89 · 4,000 in stock | View |
 | LY6397A#C46613885Lingyang Micro · ESOP-8 | Lingyang Micro | ESOP-8 | 3,990 | ₹10.68 · 3,990 in stock | View |
