UTCDatasheet (PDF)

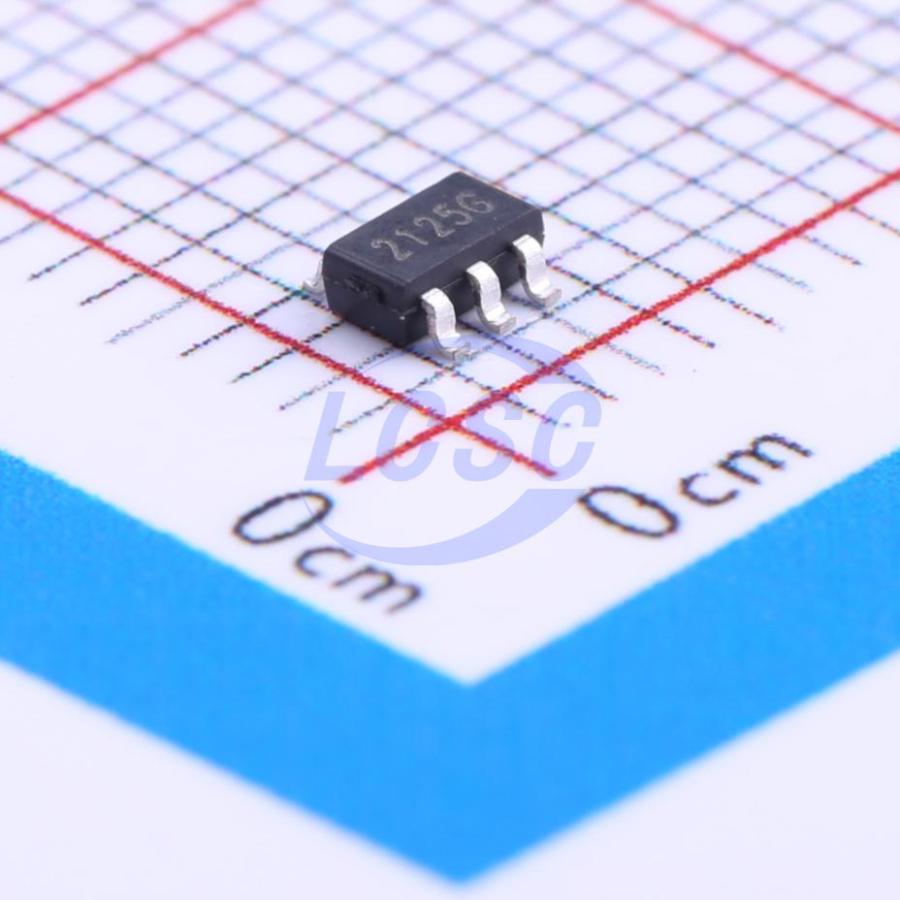

M2125G-AF5-R
30mA 1 2mV 1.2V/us 90dB 25nA 1mA 1.2MHz SOT-25 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-25ROHS CompliantActive
Single-Supply Operational Amplifier
- Manufacturer
- UTC
- Manufacturer part #
- M2125G-AF5-R
- Store part #
- C171494
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C171494
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.99 | ₹109.95 |
| 50+ | ₹17.38 | ₹869.00 |
| 150+ | ₹15.40 | ₹2,310.00 |
| 500+ | ₹12.94 | ₹6,470.00 |
| 3,000+ | ₹11.84 | ₹35,520.00 |
| 6,000+ | ₹11.19 | ₹67,140.00 |
5 × ₹21.99
₹109.95
excl. GST
₹129.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
M2125G-AF5-R
₹109.95 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 25nA
- Quiescent Current
- 1mA
- Gain Bandwidth Product
- 1.2MHz
- Dual Supply
- -20V~-2.7V;2.7V~20V
- Single Supply
- 2.7V~20V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The UTC M2125 is a single-supply operational amplifier.
Key features
- Single-Supply Operation
- Low Operating Voltage: ±2.7V~20V
- Low Operating Current: 1.0mA (typ.)
- Slew Rate: 1.2V/μs (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6021T-E/OT#C50538MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 4,498 | ₹161.21 · 4,498 in stock | View |
 | MCP6021RT-E/OT#C623458MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 1 | ₹204.73 · 1 in stock | View |
 | SL310S-T05A#C54950565Slkor · SOT-23-5 | Slkor | SOT-23-5 | 3,000 | ₹13.02 · 3,000 in stock | View |
 | SL612S-T05A#C54950568Slkor · SOT-23-5 | Slkor | SOT-23-5 | 3,000 | ₹26.75 · 3,000 in stock | View |
 | TP2261-TR#C51209763PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 5,690 | ₹42.10 · 5,690 in stock | View |
