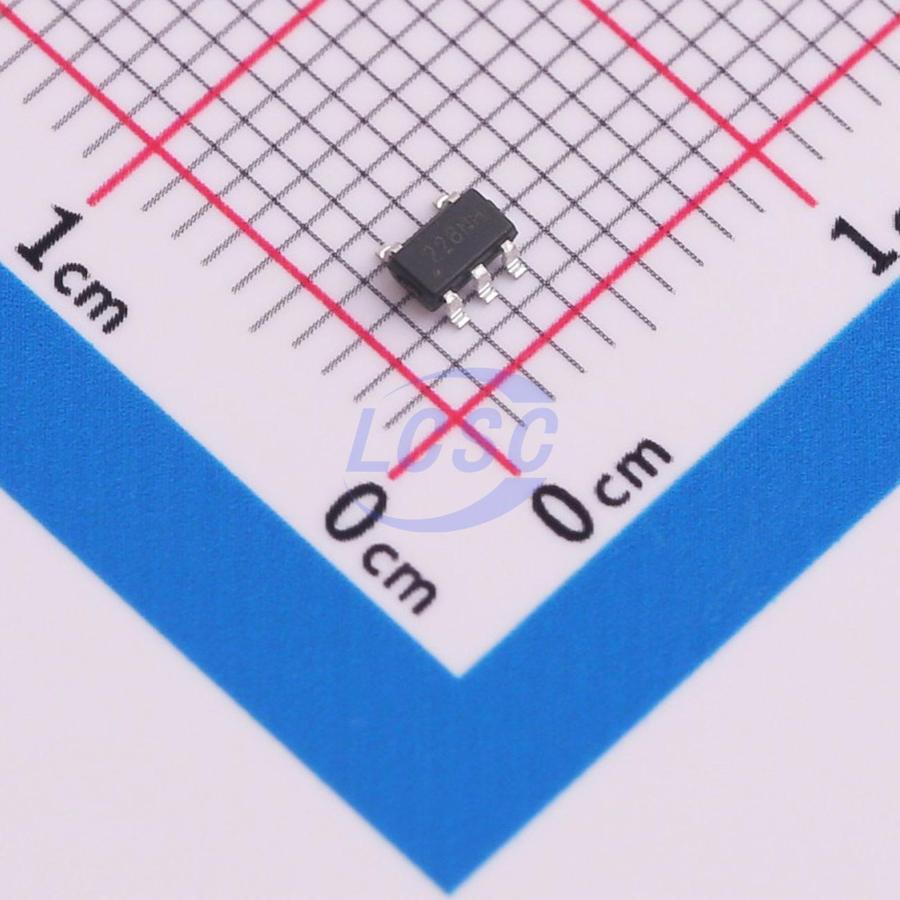

TP2261-TR

The TP226X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 3.5MHz bandwidth, 15V/μs slew rate and low distortion while drawing only typical 700μμ of quiescent current per amplifier. The input common-mode voltage range extends to V–, and the outputs swing rail-to-rail. The TP226X family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance. The combination of features makes the TP226X ideal choices for industrial control, motor control and portable audio amplification, sound ports, and other consumer audio.

Applications

• Sensor Interface
• Motor Control
• Industrial Control
• Audio

Key features

• Supply Voltage: 3V to 36V
• Low Supply Current: Maximum 1000μμ per channel
• Differential Input Voltage Range to Supply Rail, can Work as Comparator
• Input Rail to -Vs, Rail to Rail Output
• Fast Response: 3.5 MHz Bandwidth, 15V/μs Slew Rate, 100ns Overload Recovery
• Low Offset Voltage: ±2mV Maximum at 25°C, ±2.5mV Maximum at -40°C to 85°C, ±3mV Maximum at -40°C to 125°C
• Very Low THD + N: 0.0005% at Gain = 1, 1kHz
• Excellent EMIRR: 60dB at 900MHz
• 2KV HBM, 1KV CDM, 150mA Latch Up
• -40°C to 125°C Operation Temperature Range
