TIDatasheet (PDF)

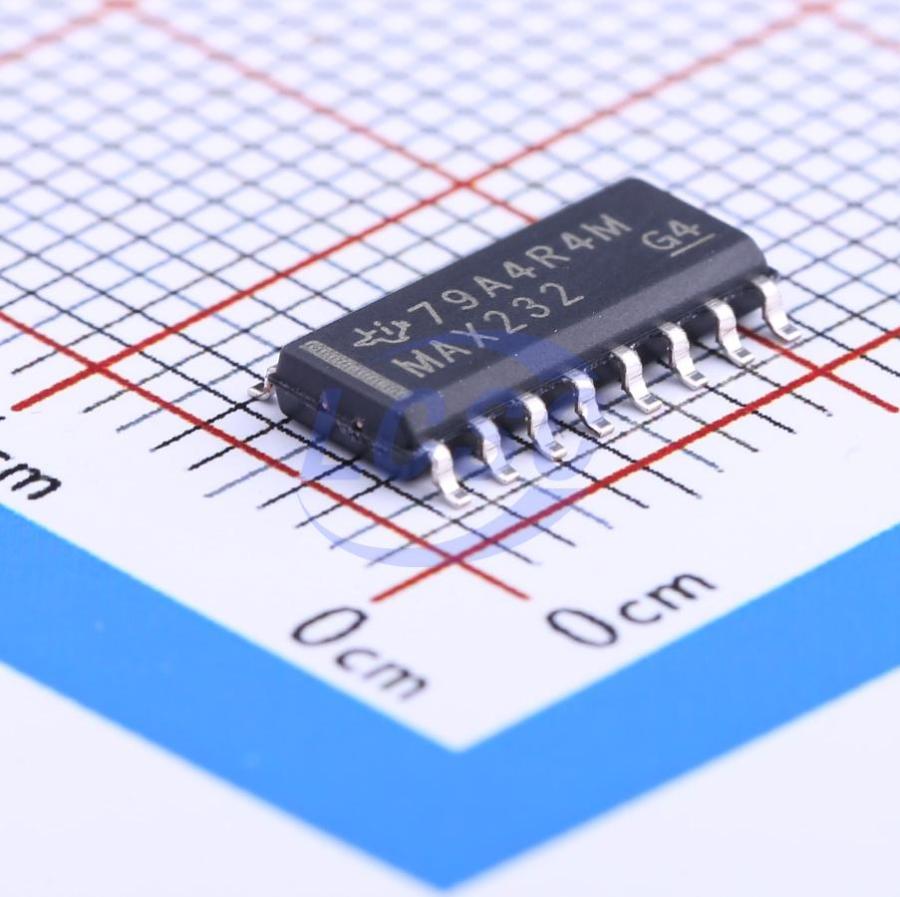

MAX232DR
4.5V~5.5V Transceiver 120Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS CompliantActive
Dual EIA-232 Drivers/Receivers
- Manufacturer
- TI
- Manufacturer part #
- MAX232DR
- Store part #
- C158068
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,042 in stock
#C158068
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.50 | ₹112.50 |
| 10+ | ₹101.13 | ₹1,011.30 |
| 30+ | ₹93.03 | ₹2,790.90 |
| 100+ | ₹86.54 | ₹8,654.00 |
| 500+ | ₹84.37 | ₹42,185.00 |
| 1,000+ | ₹83.10 | ₹83,100.00 |
1 × ₹112.50
₹112.50
excl. GST
₹132.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232DR
₹112.50 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- 0℃~+70℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.349 g
Overview
The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels.
Applications
- TIA/EIA-232-F
- Battery-Powered Systems
- Terminals
- Modems
- Computers
Key features
- Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28
- Operates From a Single 5-V Power Supply With 1.0-µF Charge-Pump Capacitors
- Operates up to 120 kbit/s
- Two Drivers and Two Receivers ±30-V Input Levels
- Low Supply Current: 8 mA Typical
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A)
- Upgrade With Improved ESD (15-kV HBM) and 0.1-µF Charge-Pump Capacitors is Available With the MAX202 Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232D#C350552TI · SOIC-16 | TI | SOIC-16 | 627 | ₹101.60 · 627 in stock | View |
 | MAX202CSE-TUDI#C53286123Tudi · SOP-16 | Tudi | SOP-16 | 9 | ₹99.87 · 9 in stock | View |
 | SP232EEN(UMW)#C2904740UMW · SOP-16 | UMW | SOP-16 | 30,680 | ₹36.94 · 30,680 in stock | View |
 | MAX232ESE(UMW)#C2904791UMW · SOP-16 | UMW | SOP-16 | 10,825 | ₹47.51 · 10,825 in stock | View |
 | ADM232AARNZ(UMW)#C2904792UMW · SOP-16 | UMW | SOP-16 | 5,484 | ₹37.50 · 5,484 in stock | View |
