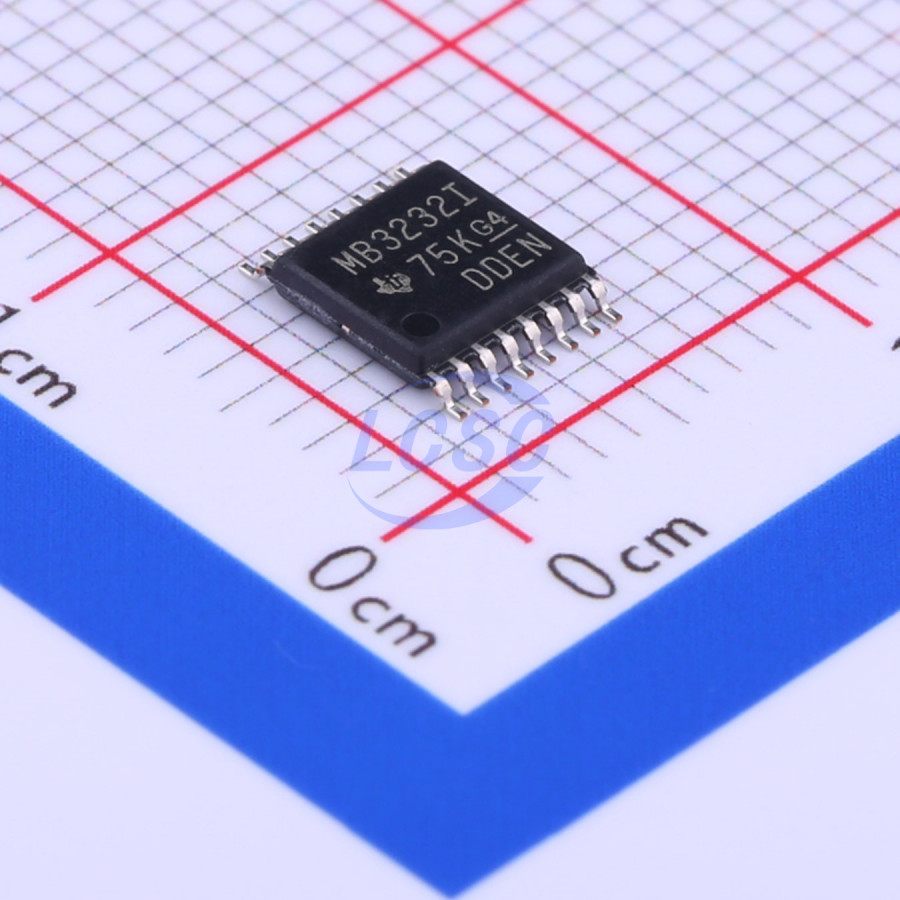

MAX3232IPW
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
MAX3232 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With ±15-kV ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3232IPW
- Store part #
- C354121
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,222 in stock
#C354121
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.06 | ₹86.06 |
| 10+ | ₹69.76 | ₹697.60 |
| 30+ | ₹62.80 | ₹1,884.00 |
| 100+ | ₹51.29 | ₹5,129.00 |
| 500+ | ₹47.59 | ₹23,795.00 |
| 1,000+ | ₹45.21 | ₹45,210.00 |
1 × ₹86.06
₹86.06
excl. GST
₹101.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 90 per tube
MAX3232IPW
₹86.06 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 90 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serialport connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- PDAs
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
- Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
- Operates With 3-V to 5.5-V Vcc Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA Typical
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- Alternative High-Speed Terminal-Compatible Devices (1 Mbit/s) SN65C3232 (-40°C to 85°C), SN75C3232 (0°C to 70°C)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232IPWR#C113205TI · TSSOP-16 | TI | TSSOP-16 | 24,623 | ₹60.47 · 24,623 in stock | View |
 | TRS3232EQPWRQ1#C79296TI · TSSOP-16 | TI | TSSOP-16 | 3,170 | ₹239.86 · 3,170 in stock | View |
 | SP3232EBEY-L/TR#C132106MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 12,194 | ₹55.49 · 12,194 in stock | View |
 | ICL3232EIV-16Z-T#C152391RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 55 | ₹559.63 · 55 in stock | View |
 | ICL3232IVZ#C1543929RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 14 | ₹338.75 · 14 in stock | View |
