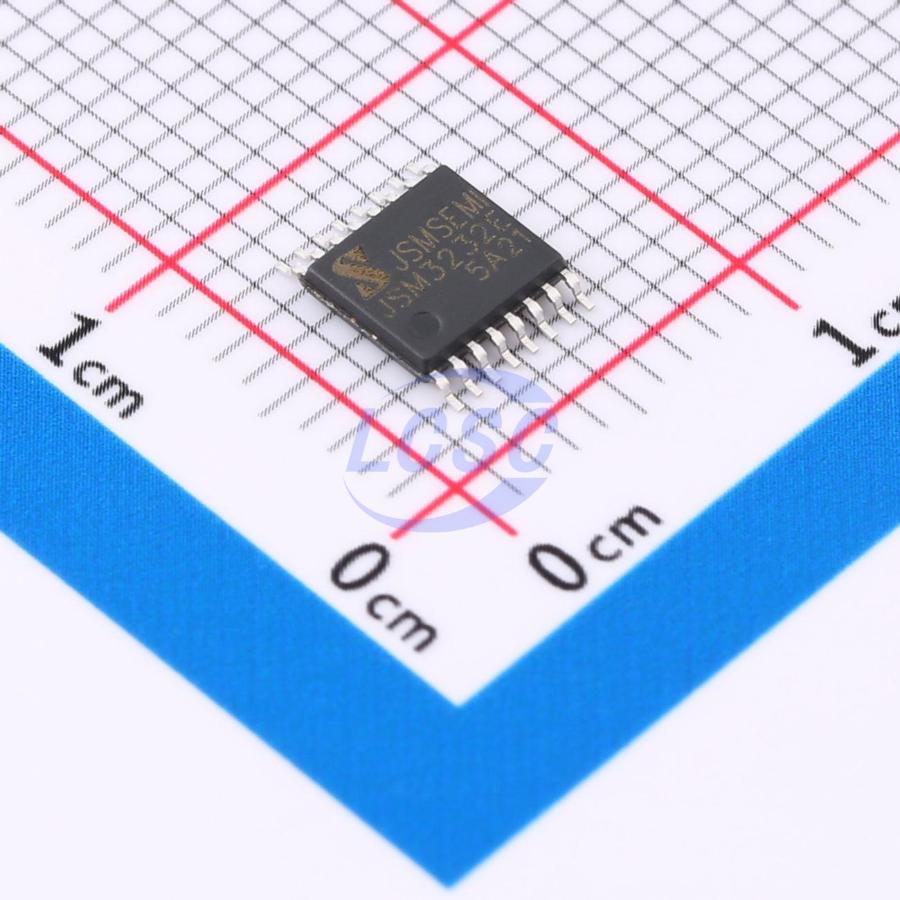

MAX3232IPWR-JSM
Transceiver 3V~5.5V 500Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MAX3232IPWR-JSM
- Store part #
- C49006645
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C49006645
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.98 | ₹174.90 |
| 50+ | ₹30.42 | ₹1,521.00 |
| 150+ | ₹28.47 | ₹4,270.50 |
| 500+ | ₹26.08 | ₹13,040.00 |
| 2,500+ | ₹24.99 | ₹62,475.00 |
| 5,000+ | ₹24.34 | ₹1,21,700.00 |
5 × ₹34.98
₹174.90
excl. GST
₹206.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232IPWR-JSM
₹174.90 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Features
- Short-Circuit Protection
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The MAX3232 interface IC integrates two drivers, two receivers, and a dual charge pump circuit, with serial port pins protected by ±15kV IEC ESD. The device complies with TIA/EIA-232-F and provides an electrical interface between asynchronous communication controllers and serial port connectors. Its internal charge pump, combined with four small external capacitors, supports single-supply operation from 3V to 5.5V. The MAX3232 supports data rates up to 500kbit/s with a driver output slew rate of up to 30V/μs.
Applications
- Industrial PC
- Wired Networking
- Data Center and Enterprise Computing
- Battery-Powered Systems
- Laptop Computers
Key features
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supports 0.1μF external capacitors
- Operating supply voltage range: 3V to 5.5V
- Data transfer rate up to 500kbps
- Integrated dual drivers and dual receivers
- Enhanced ESD protection on serial pins: ±15kV HBM; IEC 61000-4-2 contact discharge ±10kV, air discharge ±15kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232ECPWR-JSM#C49006646JSMSEMI · TSSOP-16 | JSMSEMI | TSSOP-16 | 230 | ₹51.73 · 230 in stock | View |
 | MAX3232EUE-JSM#C49006643JSMSEMI · TSSOP-16 | JSMSEMI | TSSOP-16 | 3,029 | ₹67.58 · 3,029 in stock | View |
 | MAX3232EIPWR-JSM#C49006644JSMSEMI · TSSOP-16 | JSMSEMI | TSSOP-16 | 1,730 | ₹34.98 · 1,730 in stock | View |
 | SN65C3232EPWR-JSM#C49006647JSMSEMI · TSSOP-16 | JSMSEMI | TSSOP-16 | 2,948 | ₹93.99 · 2,948 in stock | View |
 | SP3232EEY-JSM#C49006648JSMSEMI · TSSOP-16 | JSMSEMI | TSSOP-16 | 5,200 | ₹37.84 · 5,200 in stock | View |
