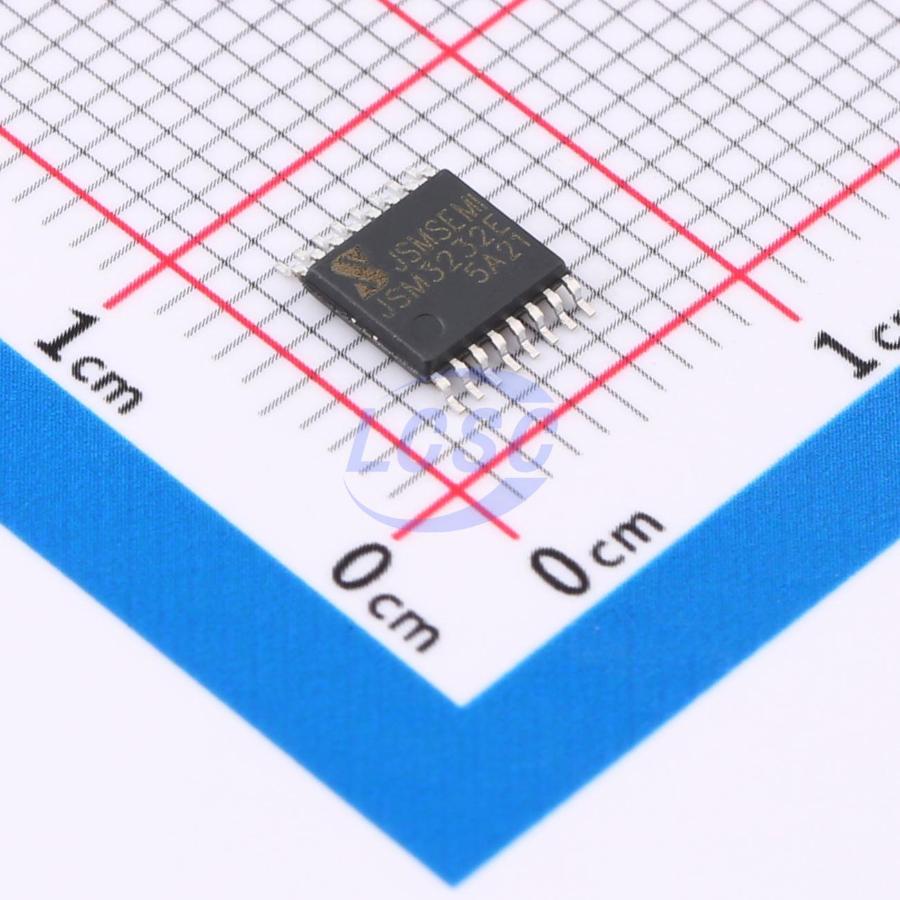

SN65C3232EPWR-JSM
Transceiver 3V~5.5V 1Mbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SN65C3232EPWR-JSM
- Store part #
- C49006647
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,948 in stock
#C49006647
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.99 | ₹93.99 |
| 10+ | ₹75.32 | ₹753.20 |
| 30+ | ₹66.08 | ₹1,982.40 |
| 100+ | ₹56.86 | ₹5,686.00 |
| 500+ | ₹52.79 | ₹26,395.00 |
| 1,000+ | ₹49.78 | ₹49,780.00 |
1 × ₹93.99
₹93.99
excl. GST
₹110.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65C3232EPWR-JSM
₹93.99 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Features
- Short-Circuit Protection
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.328 g
Overview
The SN65C3232E/SN75C3232E interface IC integrates two drivers, two receivers, and a dual charge pump circuit, with ±15kV IEC ESD protection on the serial port. The device complies with TIA/EIA-232-F and provides an electrical interface between asynchronous communication controllers and serial port connectors. The on-chip charge pump, combined with four small external capacitors, supports single-supply operation from 3V to 5.5V. The SN65C3232E/SN75C3232E supports data signaling rates up to 1Mbit/s, with a driver output slew rate of up to 30V/μs.
Applications
- Industrial personal computers
- Wired networking
- Data center and enterprise computing
- Battery-powered systems
- Laptops
- Handheld devices
Key features
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supports 0.1μF small external capacitors
- Powered by 3V to 5.5V Vcc supply
- Data rates up to 1Mbps
- Two drivers and two receivers
- Enhanced ESD protection on serial pins: Human Body Model ±15kV; IEC 61000-4-2 contact discharge ±10kV, air discharge ±15kV
