ElecSuper

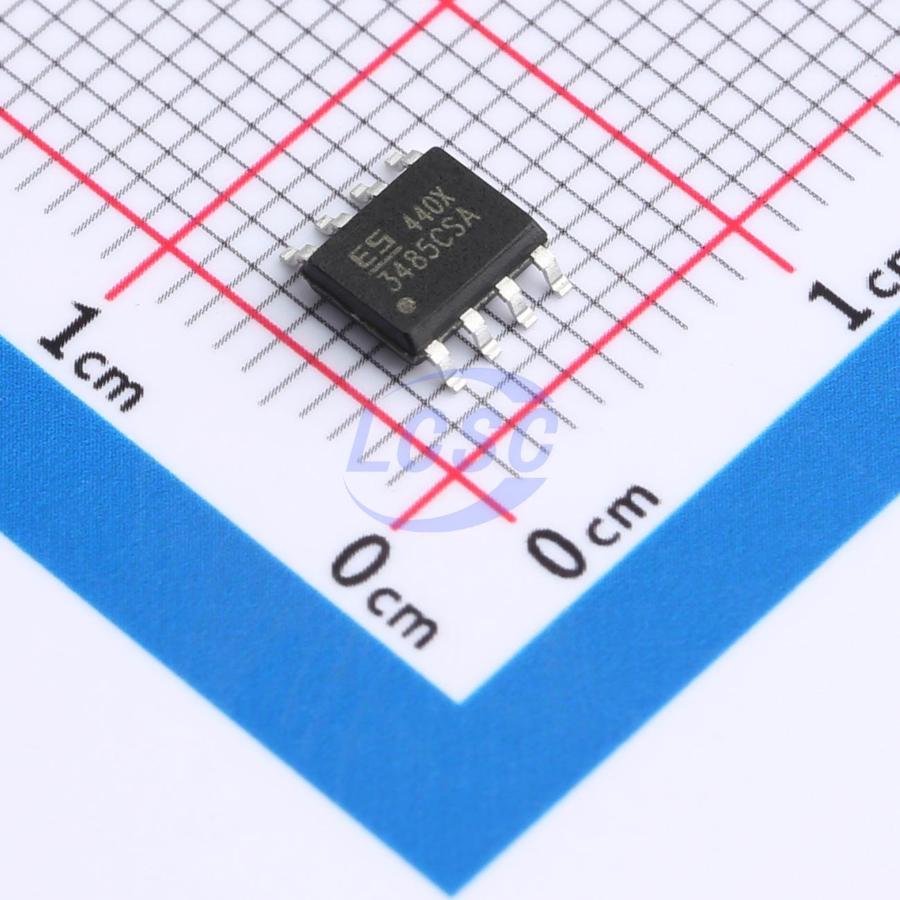

MAX3485CSA+T(ES)

1/1 Transceiver Half RS422, RS485 SOP-8

SOP-8ROHS CompliantActive

RS-485/RS422 Transceiver

Manufacturer: ElecSuper
Manufacturer part #: MAX3485CSA+T(ES)
Store part #: C41438303
Package / case: SOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,665 in stock

#C41438303

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹26.94	₹134.70
50+	₹23.52	₹1,176.00
150+	₹22.07	₹3,310.50
500+	₹20.24	₹10,120.00
2,500+	₹19.42	₹48,550.00
5,000+	₹18.95	₹94,750.00

Quantity (min 5, multiples of 5)

5 × ₹26.94

₹134.70

excl. GST

₹158.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX3485CSA+T(ES)

₹134.70 for 5 + GST

Specifications

Voltage - Supply: 3V~5.5V
Type: Transceiver
Data Rate: 14Mbps
Operating Temperature: -40℃~+125℃
Number of Nodes: 256
ESD Protect: ±15kV
Communication Mode: Half-Duplex
Number of Drivers: 1
Features: Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode
Number of Receivers: 1
Quiescent Supply Current: 240uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

MAX3485CSA+T是一款3.0V~5.5V宽电源供电、总线端口ESD保护能力HBM达到15kV以上、总线耐压范围达到±15V、半双工、低功耗，功能完全满足TIA/EIA - 485标准要求的RS - 485收发器。包括一个驱动器和一个接收器，两者均可独立使能与关闭。当两者均禁用时，驱动器与接收器均输出高阻态。具有1/8负载，允许256个MAX3485CSA+T收发器并接在同一通信总线上。可实现高达14Mbps的无差错数据传输。工作电压为3.3V，具备失效安全（fail - safe）、限流保护、过压保护等功能。

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MAX3485ESA#C41365338ElecSuper · SOP-8	ElecSuper	SOP-8	775	₹39.57 · 775 in stock	View
SP3485EEN#C41365339ElecSuper · SOP-8	ElecSuper	SOP-8	9,685	₹28.05 · 9,685 in stock	View
SP3485EN-L/TR#C41365340ElecSuper · SOP-8	ElecSuper	SOP-8	36,620	₹28.30 · 36,620 in stock	View
SSP3485(ES)#C41438284ElecSuper · SOP-8	ElecSuper	SOP-8	1,440	₹38.49 · 1,440 in stock	View
MAX3485ESA+T(ES)#C41438286ElecSuper · SOP-8	ElecSuper	SOP-8	765	₹38.01 · 765 in stock	View
