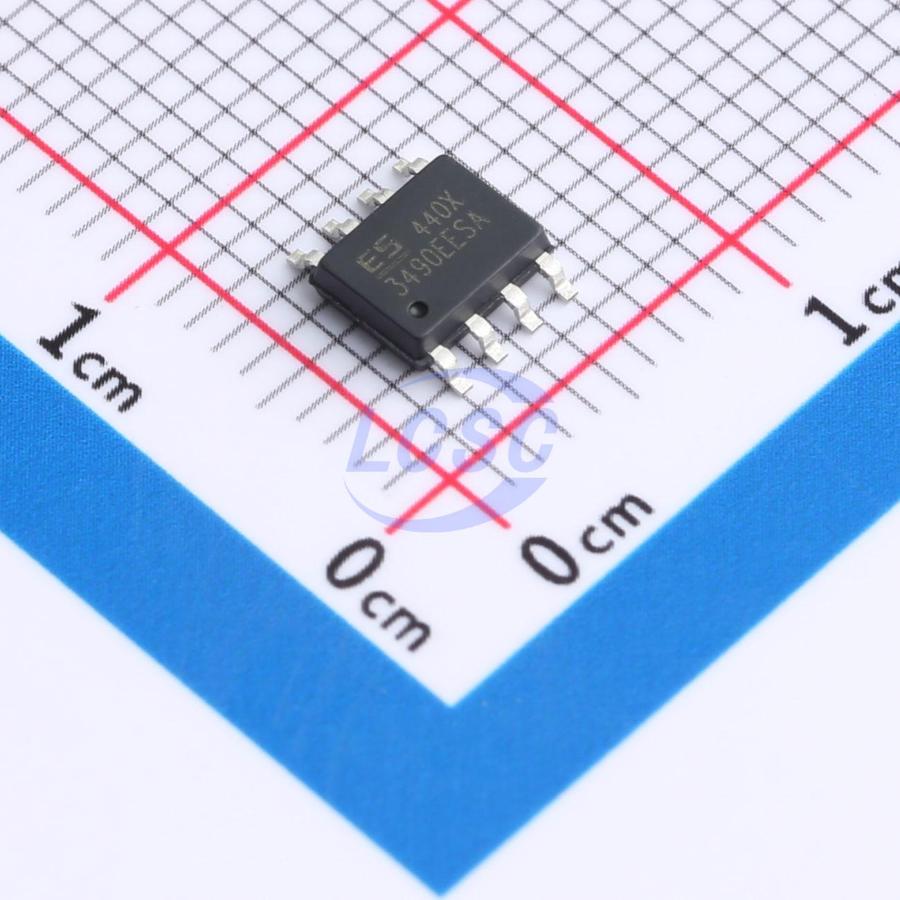

MAX3490ESA+T(ES)
1/1 Transceiver Full RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
MAX3490E RS-485/RS422 Transceiver
- Manufacturer
- ElecSuper
- Manufacturer part #
- MAX3490ESA+T(ES)
- Store part #
- C41438278
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C41438278
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.80 | ₹112.80 |
| 10+ | ₹91.19 | ₹911.90 |
| 30+ | ₹80.61 | ₹2,418.30 |
| 100+ | ₹69.80 | ₹6,980.00 |
| 500+ | ₹60.94 | ₹30,470.00 |
| 1,000+ | ₹57.70 | ₹57,700.00 |
1 × ₹112.80
₹112.80
excl. GST
₹133.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3490ESA+T(ES)
₹112.80 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 14Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 240uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
3.0V~5.5V supply, full-duplex, low-power RS-485/RS-422 transceiver fully compliant with TIA/EIA-485 standard. Includes one driver and one receiver, each capable of independent signal transmission. Features 1/8 unit load, allowing up to 256 transceivers to be connected on the same bus. Supports error-free data transmission at up to 14Mbps. Operating voltage range: 3.0V~5.5V, with failsafe, current limiting, and overvoltage protection. Excellent ESD performance with HBM rating up to ±15kV.
Key features
- 3.0V~5.5V supply voltage, full-duplex
- 1/8 unit load, supports up to 256 devices on the bus
- Driver short-circuit output protection
- Enhanced noise immunity
- Integrated transient voltage suppression
- Data transfer rate up to 14Mbps in electrically noisy environments
- A, B, Y, Z port protection: HBM ±15kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3490EEN-L/TR(ES)#C41438279ElecSuper · SOP-8 | ElecSuper | SOP-8 | 138 | ₹82.66 · 138 in stock | View |
 | ES3490EESA#C41438283ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,062 | ₹51.07 · 1,062 in stock | View |
| SP3490EN-L/TR(ES)#C49108766ElecSuper · SOP-8 | ElecSuper | SOP-8 | 5,272 | ₹73.51 · 5,272 in stock | View | |
 | SP490EEN-L/TR(ES)#C41438280ElecSuper · SOP-8 | ElecSuper | SOP-8 | 2,203 | ₹66.49 · 2,203 in stock | View |
 | MAX490ESA+T(ES)#C41438281ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,814 | ₹86.46 · 1,814 in stock | View |
