TECH PUBLICDatasheet (PDF)

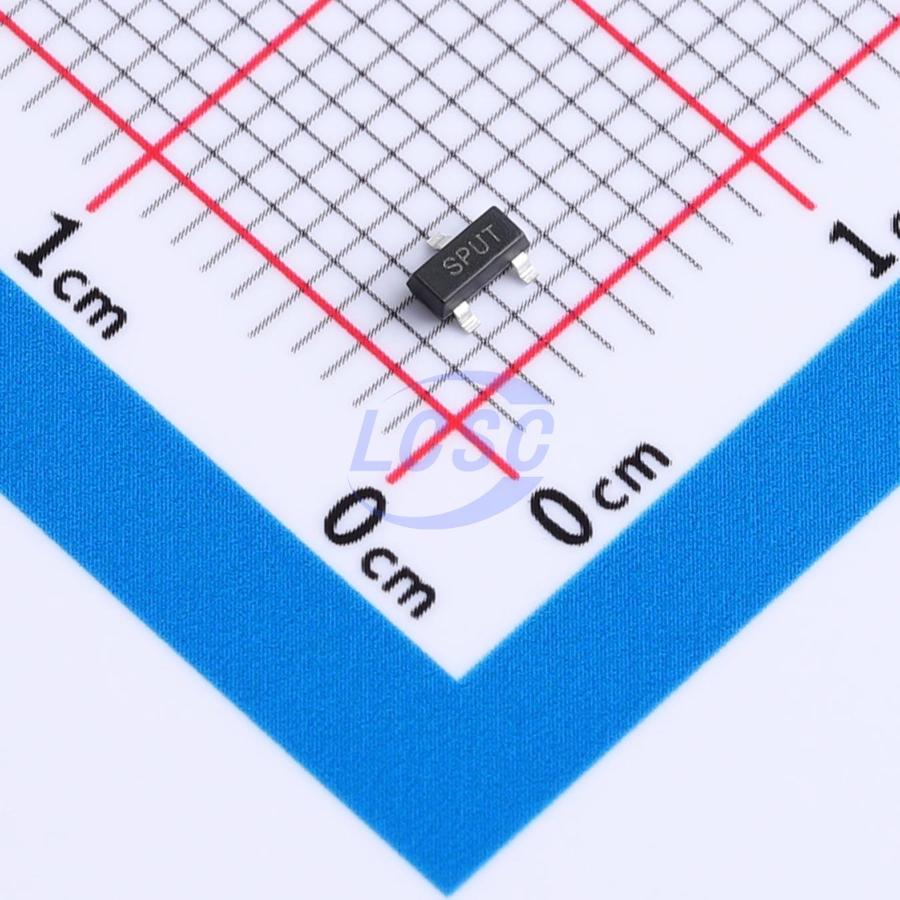

MAX809TTRG-TP
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MAX809TTRG-TP
- Store part #
- C52817139
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,565 in stock
#C52817139
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.41 | ₹52.05 |
| 50+ | ₹8.20 | ₹410.00 |
| 150+ | ₹7.10 | ₹1,065.00 |
| 500+ | ₹6.28 | ₹3,140.00 |
| 3,000+ | ₹5.62 | ₹16,860.00 |
| 6,000+ | ₹5.29 | ₹31,740.00 |
5 × ₹10.41
₹52.05
excl. GST
₹61.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809TTRG-TP
₹52.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Intelligent instruments
- CPU and logic circuit reset
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output down to Vcc = 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX809S-31SR#C50314350TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 990 | ₹13.69 · 990 in stock | View |
 | TPCAT809TTBI-GT3#C52098282TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,770 | ₹7.49 · 2,770 in stock | View |
 | TPADM809TARTZ#C52817188TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,275 | ₹18.22 · 2,275 in stock | View |
 | TPAPX809S-31SA#C52817201TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,920 | ₹7.85 · 2,920 in stock | View |
 | TPMCP809T-315I/TT#C52817247TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,200 | ₹10.40 · 2,200 in stock | View |
