TECH PUBLICDatasheet (PDF)

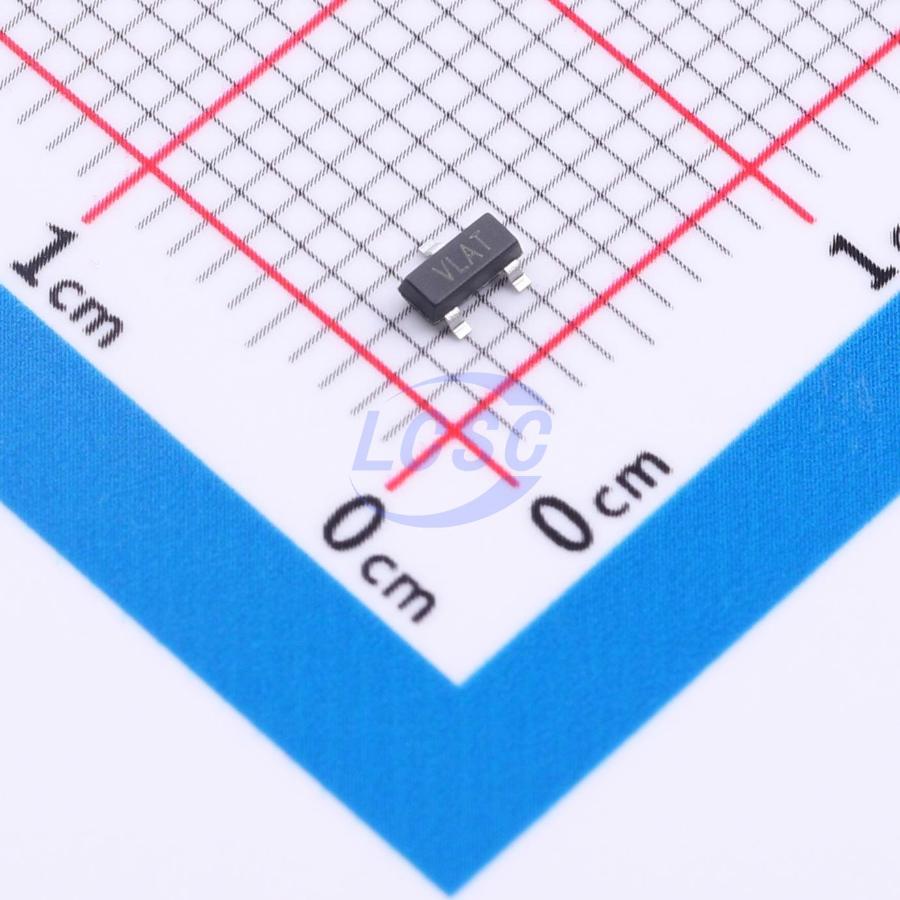

TPCAT809TTBI-GT3
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPCAT809TTBI-GT3
- Store part #
- C52098282
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C52098282
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.49 | ₹74.90 |
| 100+ | ₹5.89 | ₹589.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 3,000+ | ₹4.48 | ₹13,440.00 |
| 6,000+ | ₹4.01 | ₹24,060.00 |
| 9,000+ | ₹3.77 | ₹33,930.00 |
10 × ₹7.49
₹74.90
excl. GST
₹88.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPCAT809TTBI-GT3
₹74.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output at Vcc=1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX809S-31SR#C50314350TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 990 | ₹13.69 · 990 in stock | View |
 | MAX809TTRG-TP#C52817139TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,565 | ₹10.41 · 1,565 in stock | View |
 | TPADM809TARTZ#C52817188TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,275 | ₹18.22 · 2,275 in stock | View |
 | TPAPX809S-31SA#C52817201TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,920 | ₹7.85 · 2,920 in stock | View |
 | TPMCP809T-315I/TT#C52817247TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,200 | ₹10.40 · 2,200 in stock | View |
