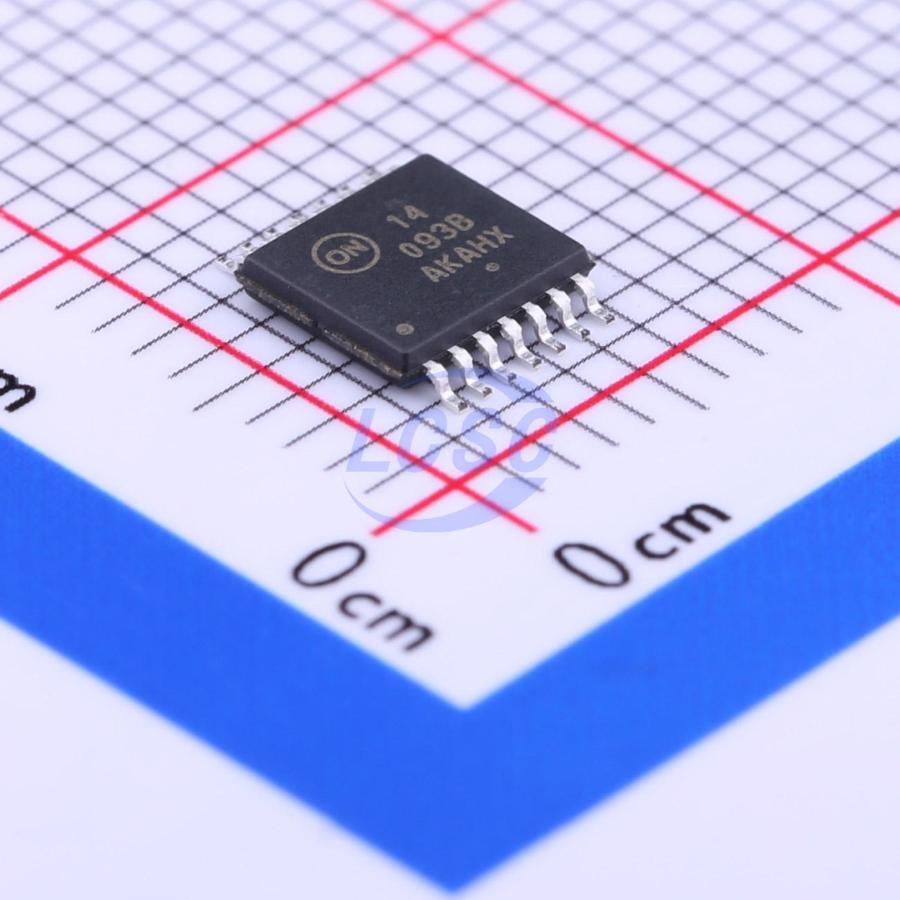

MC14093BDTR2G
Schmitt trigger 3V~18V 80ns@15V,50pF 1uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-Input NAND Schmitt Trigger
- Manufacturer
- onsemi
- Manufacturer part #
- MC14093BDTR2G
- Store part #
- C233507
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C233507
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.54 | ₹182.70 |
| 50+ | ₹28.33 | ₹1,416.50 |
| 150+ | ₹24.81 | ₹3,721.50 |
| 500+ | ₹20.41 | ₹10,205.00 |
| 2,500+ | ₹18.46 | ₹46,150.00 |
| 5,000+ | ₹17.29 | ₹86,450.00 |
5 × ₹36.54
₹182.70
excl. GST
₹215.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14093BDTR2G
₹182.70 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000B Series
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 0V~50mV
- Propagation Delay
- 80ns@15V,50pF
- Input Logic Level - High
- 3.6V~10.8V
- Input Logic Level - Low
- 900mV~4V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 4.95V~5V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.197 g
Overview
The MC14093B Schmitt trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14093B may be used in place of the MC14011B quad 2−input NAND gate for enhanced noise immunity or to “square up” slowly changing waveforms.
Key features
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
- Triple Diode Protection on All Inputs
- Pin−for−Pin Compatible with CD4093
- Can be Used to Replace MC14011B
- Independent Schmitt−Trigger at each Input
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
