HGSEMIDatasheet (PDF)

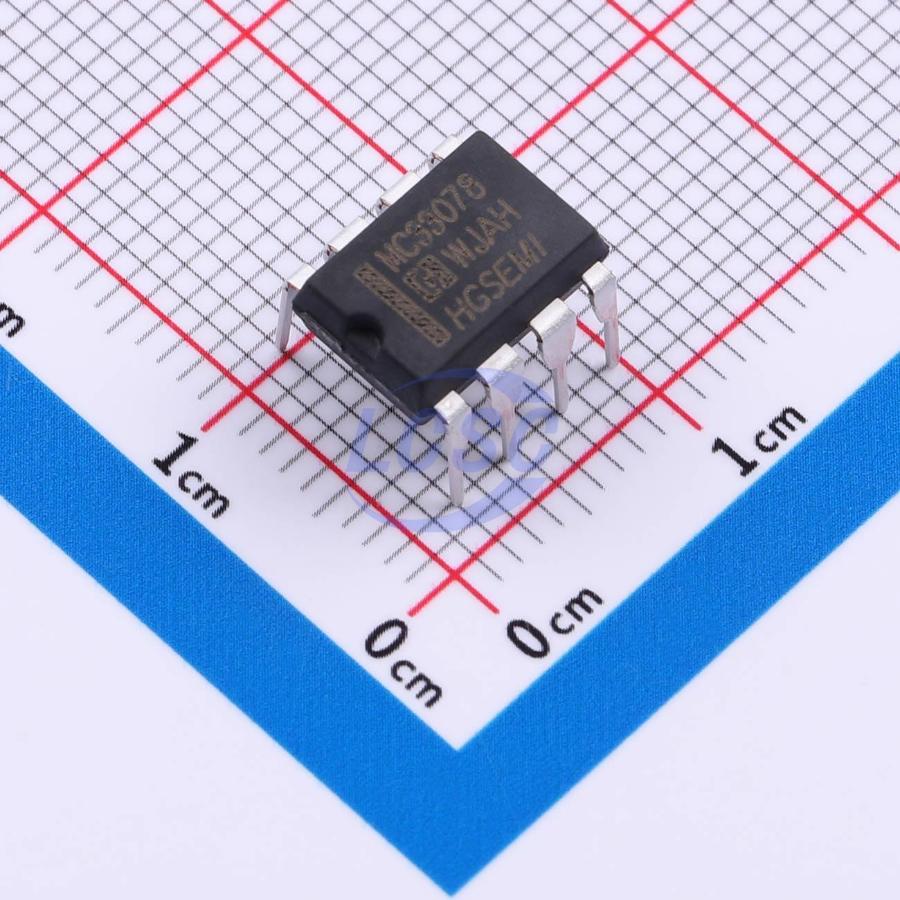

MC33078N
2 500uV 5V/us 110dB 100nA 6mA 15MHz DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- MC33078N
- Store part #
- C52121520
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C52121520
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.45 | ₹147.25 |
| 50+ | ₹23.26 | ₹1,163.00 |
| 150+ | ₹20.61 | ₹3,091.50 |
| 500+ | ₹17.30 | ₹8,650.00 |
| 2,000+ | ₹15.84 | ₹31,680.00 |
| 4,000+ | ₹14.95 | ₹59,800.00 |
5 × ₹29.45
₹147.25
excl. GST
₹173.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC33078N
₹147.25 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 15MHz
- Dual Supply
- -16V~-2V;2V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.894 g
Overview
The MC33078 is a dual operational amplifier specifically designed for improved tone control, making it ideal for audio applications. Featuring low noise, high gain-bandwidth, high output current, and low distortion, it is well-suited for the acoustic electronics section of audio preamplifiers and active filters, as well as industrial measurement instruments. Its high output current capability also makes it suitable for headphone amplifiers. In addition, it can be used as a low-voltage, single-supply general-purpose portable op-amp with appropriately biased inputs for low-voltage power supplies.
Key features
- Supply Voltage: ±2 V ~ ±16 V
- Low Input Noise Voltage: 0.8 μV rms (typical)
- Wide Gain Bandwidth Product: 15 MHz (typical)
- Low Distortion: 0.0005% (typical)
- Slew Rate: 5 V/μs (typical)
- Package: DIP-8, SIP-8, and MSOP-8
- Bipolar Technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| JRC4580N#C41427258HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,875 | ₹28.11 · 1,875 in stock | View | |
 | NJM4580N#C41427257HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,810 | ₹28.11 · 1,810 in stock | View |
 | RC4580N#C2987281HGSEMI · DIP-8 | HGSEMI | DIP-8 | 295 | ₹31.02 · 295 in stock | View |
| JRC4560N#C41415964HGSEMI · DIP-8 | HGSEMI | DIP-8 | 965 | ₹26.47 · 965 in stock | View | |
 | LM833N#C2987280HGSEMI · DIP-8 | HGSEMI | DIP-8 | 660 | ₹26.39 · 660 in stock | View |
