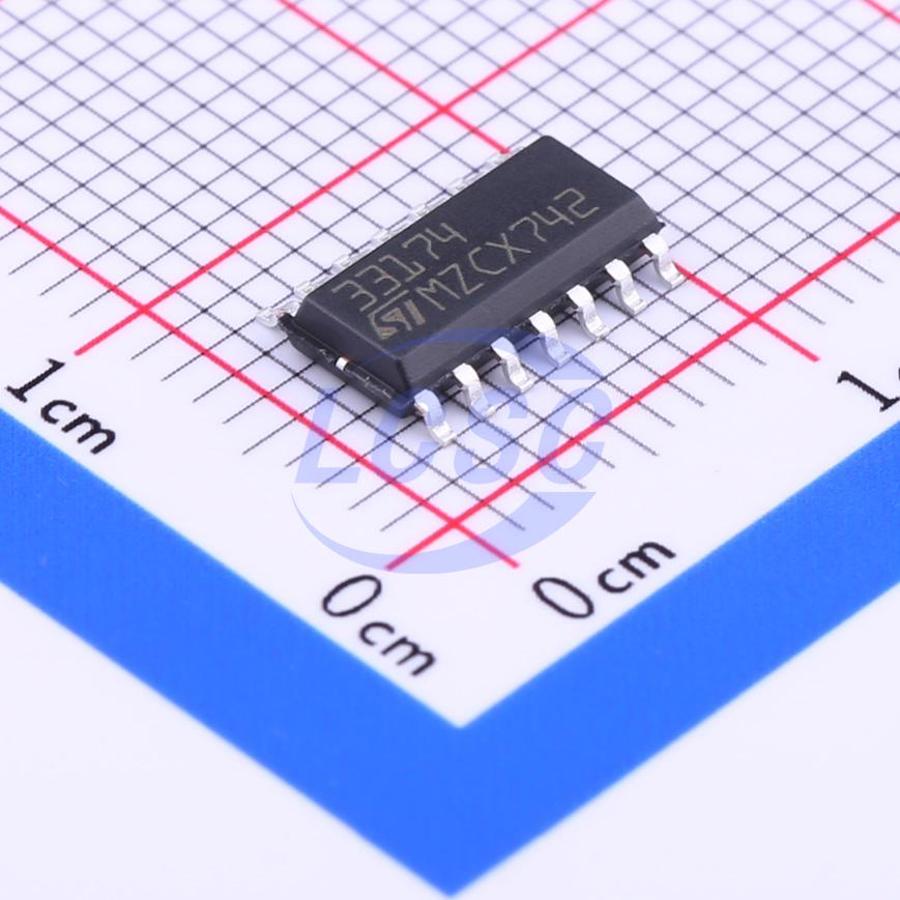

MC33174DT
6mA 4 1mV 2V/us 100dB 20nA 220uA 2.1MHz SO-14 Instrumentation, Op Amps, Buffer Amps RoHS
SO-14ROHS3 CompliantActive
Low Power Quad Bipolar Operational Amplifiers
- Manufacturer
- ST
- Manufacturer part #
- MC33174DT
- Store part #
- C262924
- Package / case
- SO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C262924
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.07 | ₹98.07 |
| 10+ | ₹76.69 | ₹766.90 |
| 30+ | ₹66.11 | ₹1,983.30 |
| 100+ | ₹55.53 | ₹5,553.00 |
| 500+ | ₹49.26 | ₹24,630.00 |
| 1,000+ | ₹46.01 | ₹46,010.00 |
1 × ₹98.07
₹98.07
excl. GST
₹115.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33174DT
₹98.07 for 1 + GST
Specifications
- Output Current
- 6mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 220uA
- Gain Bandwidth Product
- 2.1MHz
- Input Voltage Noise Density
- 29nV/√Hz@1kHz
- Dual Supply
- 2V~22V;-22V~-2V
- Single Supply
- 4V~44V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.268 g
Overview
The MC3x174 series are quad bipolar operational amplifier offering both low consumption (200μA) and good speed (2.1MHz, 2V/μs). Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V.
Key features
- GOOD CONSUMPTION/SPEED RATIO :ONLY 200μA FOR 2.1MHz, 2V/μs
- SINGLE (OR DUAL) SUPPLY OPERATION FROM +4V TO +44V (±2V TO ±22V)
- WIDE INPUT COMMON MODE VOLTAGE RANGE INCLUDING
- LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC: 100mV TYPICAL
- PIN TO PIN COMPATIBLE WITH STANDARD QUAD OP-AMPs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP604-I/SL#C469399MICROCHIP · SOIC-14 | MICROCHIP | SOIC-14 | 341 | ₹147.33 · 341 in stock | View |
 | TL3474AIDR#C544568TI · SOIC-14 | TI | SOIC-14 | 4 | ₹178.55 · 4 in stock | View |
 | TL3474IDR#C82953TI · SOIC-14 | TI | SOIC-14 | 146 | ₹131.08 · 146 in stock | View |
 | MCP604T-I/SL#C116582MICROCHIP · SOIC-14 | MICROCHIP | SOIC-14 | 2,552 | ₹83.77 · 2,552 in stock | View |
 | MC33179DR2G#C153743onsemi · SOIC-14 | onsemi | SOIC-14 | 12,665 | ₹49.28 · 12,665 in stock | View |
