MICROCHIP

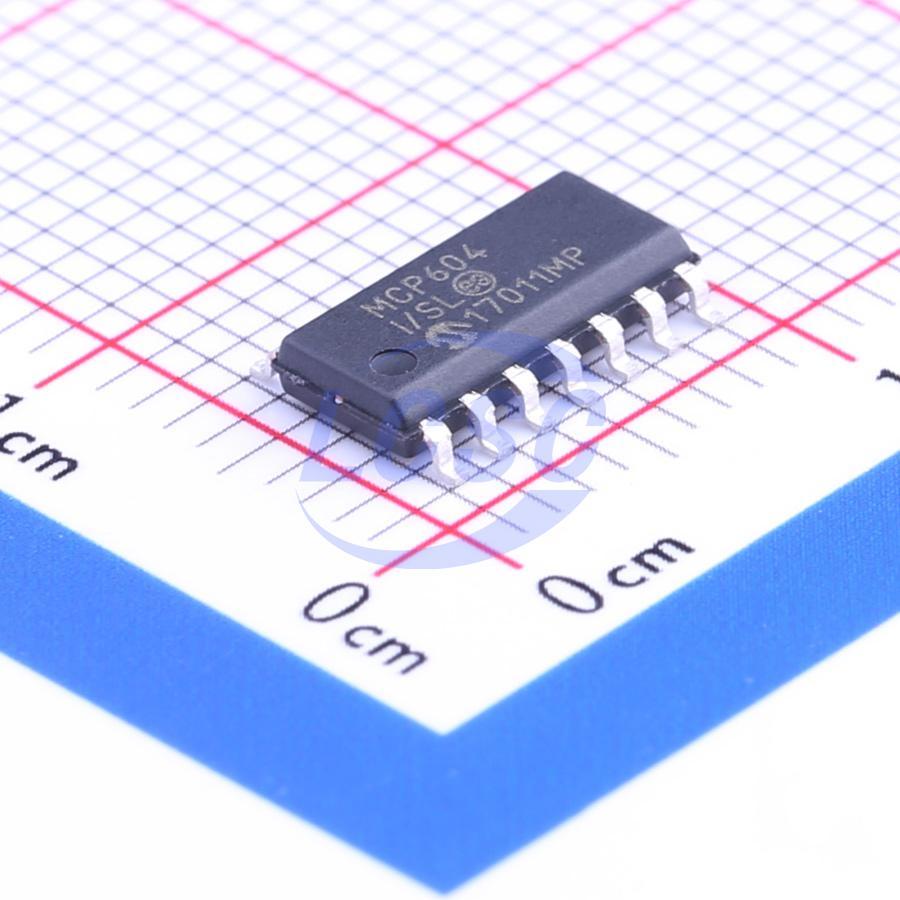

MCP604T-I/SL

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Output SOIC-14

SOIC-14ROHS3 CompliantActive

Single-supply CMOS operational amplifier

Manufacturer: MICROCHIP
Manufacturer part #: MCP604T-I/SL
Store part #: C116582
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,552 in stock

#C116582

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹83.77	₹83.77
10+	₹73.10	₹731.00
30+	₹67.76	₹2,032.80
100+	₹62.42	₹6,242.00
500+	₹59.14	₹29,570.00
1,000+	₹57.50	₹57,500.00

Quantity (min 1)

1 × ₹83.77

₹83.77

excl. GST

₹98.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,600 per reel

MCP604T-I/SL

₹83.77 for 1 + GST

Specifications

Output Current: 22mA
Number of Channels: 4
Vos - Input Offset Voltage: 700uV
Slew Rate: 2.3V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Quiescent Current: 230uA
Gain Bandwidth Product: 2.8MHz
Features: Built-in compensation
Input Voltage Noise Density: 29nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,600 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.339 g

Overview

Microchip's MCP601/2/3/4 series low-power op-amps are available in single (MCP601), single with chip select (CS) (MCP603), dual (MCP602), and quad (MCP604) configurations. Fabricated using advanced CMOS technology, these devices feature low bias current, high operating speed, high open-loop gain, and rail-to-rail output. The series operates from a single supply as low as 2.7V with quiescent current under 230 µA. In addition, the common-mode input voltage range extends 0.3V below ground, making these amplifiers well suited for single-supply operation.

Applications

Portable devices
A/D converter drivers
Photodiode preamplifiers
Analog filters
Data acquisition
Laptops and PDAs
Sensor interfaces

Key features

Single supply: 2.7V to 5.5V
Rail-to-rail output
Input range includes ground
Gain bandwidth product: 2.8MHz (typical)
Unity-gain stable
Low quiescent current: 230µA/amplifier (typical)
Chip select (CS(overline)): MCP603 only
Temperature range: Industrial: -40°C to +85°C; Extended: -40°C to +125°C
Available in single, dual, and quad configurations

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP604-I/SL#C469399MICROCHIP · SOIC-14	MICROCHIP	SOIC-14	341	₹147.33 · 341 in stock	View
MSAD8608ARZ-REEL7#C49208534MSKSEMI · SOP-14	MSKSEMI	SOP-14	2,402	₹53.89 · 2,402 in stock	View
MCP604T-E/SL#C626798MICROCHIP · SOIC-14	MICROCHIP	SOIC-14	10	₹213.24 · 10 in stock	View
MCP604T-I/SL-TUDI#C36533676Tudi · SOP-14	Tudi	SOP-14	1,840	₹57.03 · 1,840 in stock	View
MAX4478ASD+T#C2057360MAXIM · SO-14	MAXIM	SO-14	65	₹464.64 · 65 in stock	View
