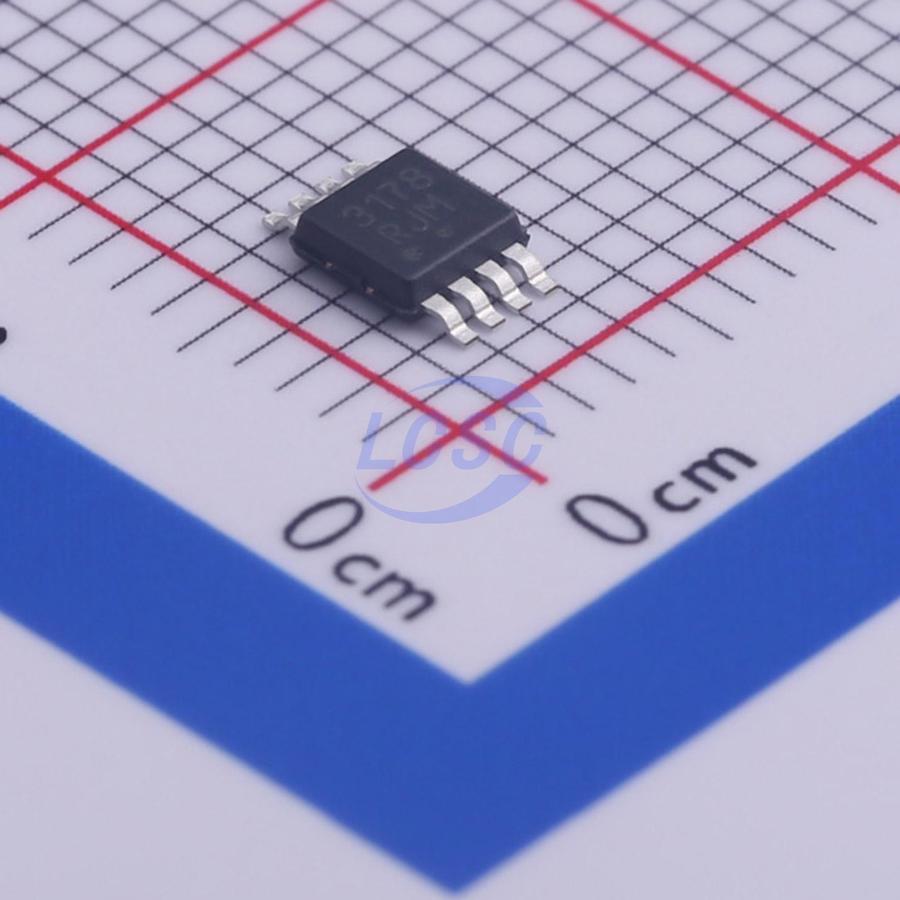

onsemi

MC33178DMR2G

80mA 2 150uV 2V/us 110dB 100nA 1.7mA 5MHz MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

Low-Power, Low-Noise Operational Amplifier

Manufacturer: onsemi
Manufacturer part #: MC33178DMR2G
Store part #: C179575
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,750 in stock

#C179575

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹43.21	₹216.05
50+	₹34.54	₹1,727.00
150+	₹30.83	₹4,624.50
500+	₹26.18	₹13,090.00
2,500+	₹24.12	₹60,300.00
4,000+	₹22.89	₹91,560.00

Quantity (min 5, multiples of 5)

5 × ₹43.21

₹216.05

excl. GST

₹254.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

MC33178DMR2G

₹216.05 for 5 + GST

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 150uV
Slew Rate: 2V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 100nA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 1.7mA
Gain Bandwidth Product: 5MHz
Features: ESD protection
Input Voltage Noise Density: 7.5nV/√Hz@1kHz
Dual Supply: -18V~-2V;2V~18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

The MC33178/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This device family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input offset voltage, noise and distortion. In addition, the amplifier provides high output current drive capability while consuming only 420 μA of drain current per amplifier. The NPN output stage used, exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open−loop high frequency output impedance, symmetrical source and sink AC frequency performance. The MC33178/9 family offers both dual and quad amplifier versions in several package options.

Applications

telecom applications
digital circuits
audio circuits

Key features

600 Ω Output Drive Capability
Large Output Voltage Swing
Low Offset Voltage: 0.15 mV (Mean)
Low T.C. of Input Offset Voltage: 2.0 μV/°C
Low Total Harmonic Distortion: 0.0024% (@ 1.0 kHz w 600 Ω Load)
High Gain Bandwidth: 5.0 MHz
High Slew Rate: 2.0 V/μs
Dual Supply Operation: ±2.0 V to ±18 V
ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Performance
Pb−Free Packages are Available
