STDatasheet (PDF)

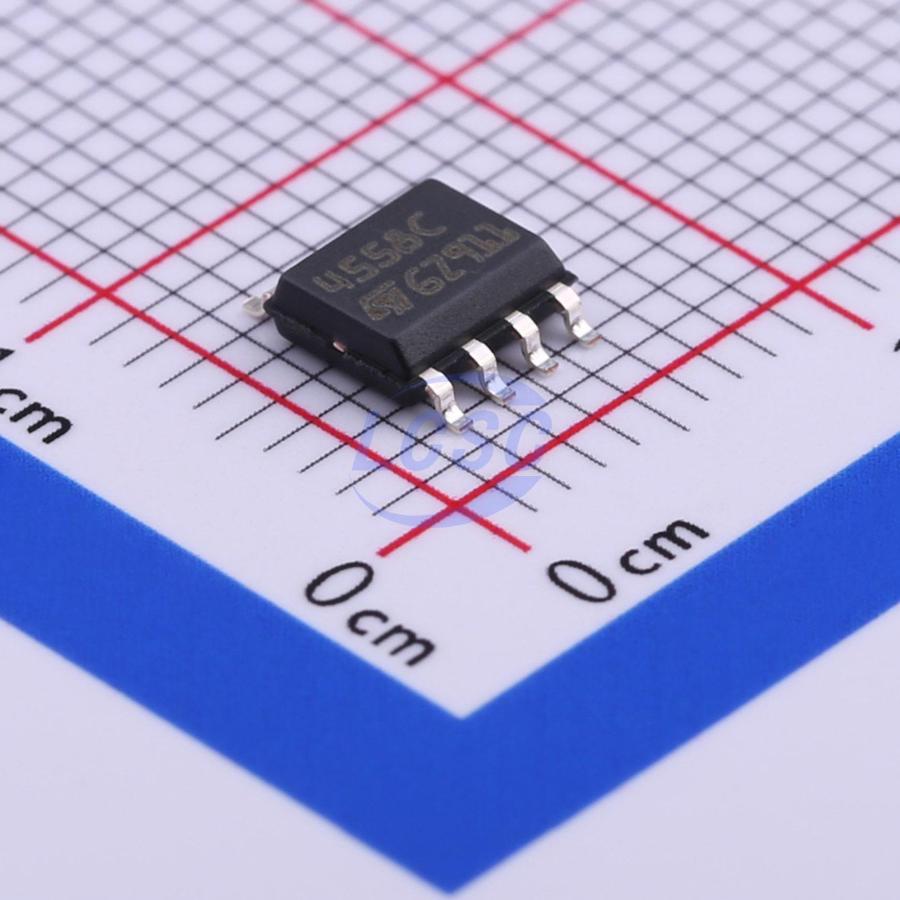

MC4558CDT
40mA 2 6mV 2.2V/us 90dB 500nA 2.3mA 5.5MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Wide bandwidth dual bipolar operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- MC4558CDT
- Store part #
- C435907
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,680 in stock
#C435907
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.01 | ₹80.05 |
| 50+ | ₹14.13 | ₹706.50 |
| 150+ | ₹13.32 | ₹1,998.00 |
| 500+ | ₹12.33 | ₹6,165.00 |
| 2,500+ | ₹11.88 | ₹29,700.00 |
| 5,000+ | ₹11.62 | ₹58,100.00 |
5 × ₹16.01
₹80.05
excl. GST
₹94.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC4558CDT
₹80.05 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 2.2V/us
- Input Offset Current(Ios)
- 20nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 500nA
- Quiescent Current
- 2.3mA
- Gain Bandwidth Product
- 5.5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Dual Supply
- 2V~20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The MC4558 is a high performance monolithic dual operational amplifier. The circuit combines all of the outstanding features of the MC1458, and in addition possesses three times the unity gain bandwidth of the industry standard.
Key features
- Internally compensated
- Short-circuit protection
- Gain and phase match between amplifier
- Low power consumption
- Pin-to-pin compatible with MC1458/LM358
- Gain bandwidth (at 100 kHz): 5.5 MHz
