STDatasheet (PDF)

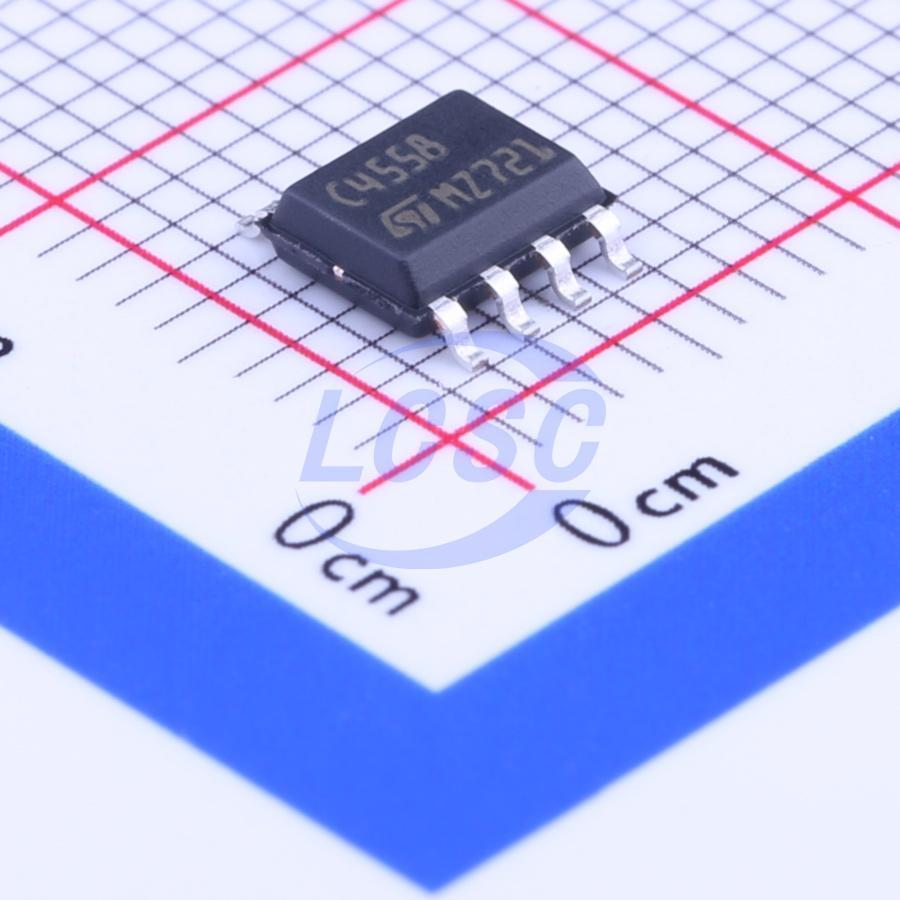

TJM4558CDT
20mA 2 1mV 2.2V/us 90dB 50nA 5.5MHz 2.3mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Wide-bandwidth bipolar operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- TJM4558CDT
- Store part #
- C6955
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
71,385 in stock
#C6955
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.35 | ₹51.75 |
| 50+ | ₹8.11 | ₹405.50 |
| 150+ | ₹6.99 | ₹1,048.50 |
| 500+ | ₹6.15 | ₹3,075.00 |
| 2,500+ | ₹5.48 | ₹13,700.00 |
| 5,000+ | ₹5.15 | ₹25,750.00 |
5 × ₹10.35
₹51.75
excl. GST
₹61.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJM4558CDT
₹51.75 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 2.2V/us
- Input Offset Current(Ios)
- 20nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 50nA
- Gain Bandwidth Product
- 5.5MHz
- Quiescent Current
- 2.3mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.267 g
Overview
The TJM4558 is a high performance monolithic dual operational amplifier. The circuit combines all the outstanding features of the MC1458 and, in addition, possesses three times the unity gain bandwidth of the industry standard.
Key features
- Internally compensated
- Short-circuit protection
- Gain and phase match between amplifier
- Low power consumption
- Pin to pin compatible with MC1458/LM358
- Gain bandwidth product (at 100kHz): 5.5MHz
