onsemiDatasheet (PDF)

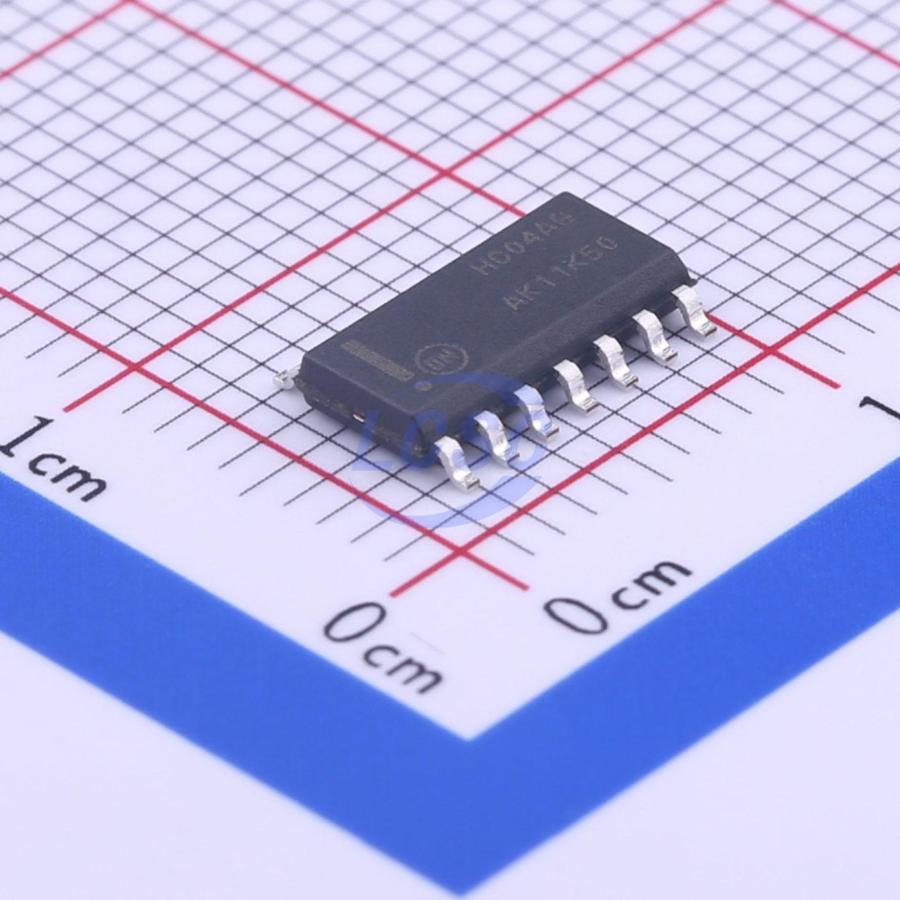

MC74HC04ADR2G
StandardCMOS 2V~6V 13ns@6V,50pF 1uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HC04ADR2G
- Store part #
- C7330
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C7330
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.61 | ₹193.05 |
| 50+ | ₹30.79 | ₹1,539.50 |
| 150+ | ₹27.44 | ₹4,116.00 |
| 500+ | ₹23.26 | ₹11,630.00 |
| 2,500+ | ₹21.39 | ₹53,475.00 |
| 5,000+ | ₹20.28 | ₹1,01,400.00 |
5 × ₹38.61
₹193.05
excl. GST
₹227.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74HC04ADR2G
₹193.05 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- StandardCMOS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 13ns@6V,50pF
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V~5.9V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC74HC04A is identical in pinout to the LS04 and the MC14069. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The device consists of six three−stage inverters.
Key features
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1 μA
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance With the JEDEC Standard No. 7A Requirements
- Chip Complexity: 36 FETs or 9 Equivalent Gates
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free and are RoHS Compliant
