onsemiDatasheet (PDF)

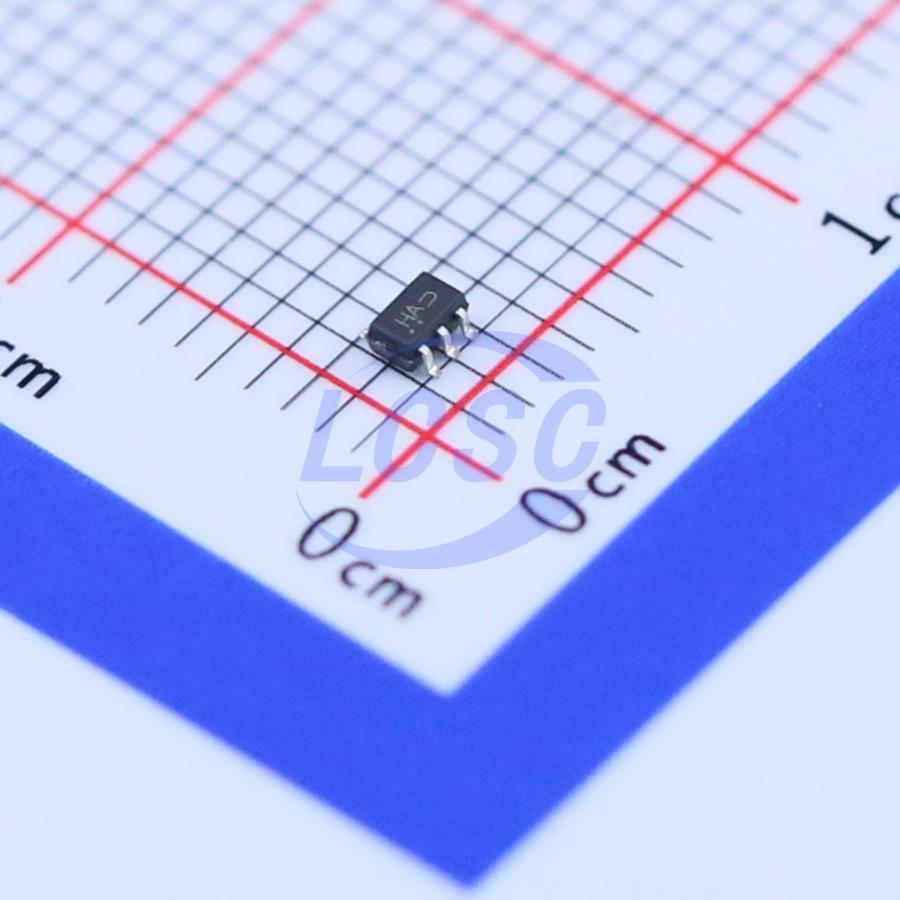

MC74HC1G14DFT2G
Schmitt trigger 2V~6V 17ns@6V,50pF 1uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
Single Inverter with Schmitt-Trigger Input
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HC1G14DFT2G
- Store part #
- C99676
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,210 in stock
#C99676
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.77 | ₹53.85 |
| 50+ | ₹8.39 | ₹419.50 |
| 150+ | ₹7.20 | ₹1,080.00 |
| 500+ | ₹6.31 | ₹3,155.00 |
| 3,000+ | ₹5.60 | ₹16,800.00 |
| 6,000+ | ₹5.24 | ₹31,440.00 |
5 × ₹10.77
₹53.85
excl. GST
₹63.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1G14DFT2G
₹53.85 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 17ns@6V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 900mV~1.65V
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 2.2V~3.85V
- Output Logic Level - High
- 5.68V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The MC74HC1G14 is a high speed CMOS inverter with Schmitt−Trigger input fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74HC1G14 output drive current is 1/2 compared to MC74HC series.
Key features
- High Speed: tpp = 7.0 ns (Typ) at VCC = 5.0 V
- Low Power Dissipation: ICC = 1.0 μA (Max) at TA = 25 ℃
- High Noise Immunity
- Balanced Propagation Delays (tpLH = tPHL)
- Symmetrical Output Impedance (IOH = IOL = 2.0 mA)
- Chip Complexity: FET = 101
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G14DFT1G#C233605onsemi · SC-70-5 | onsemi | SC-70-5 | 2,880 | ₹12.57 · 2,880 in stock | View |
 | 74AHC1G14GW,125#C282410Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 9,560 | ₹18.50 · 9,560 in stock | View |
 | 74AHC1G14SE-7#C460491DIODES · SOT-353 | DIODES | SOT-353 | 5,780 | ₹15.24 · 5,780 in stock | View |
| 74AHC1G14GW-Q100,1#C554295Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 855 | ₹20.73 · 855 in stock | View | |
 | SN74AHC1G14DCKR#C66196TI · SC-70-5 | TI | SC-70-5 | 10,875 | ₹10.95 · 10,875 in stock | View |
