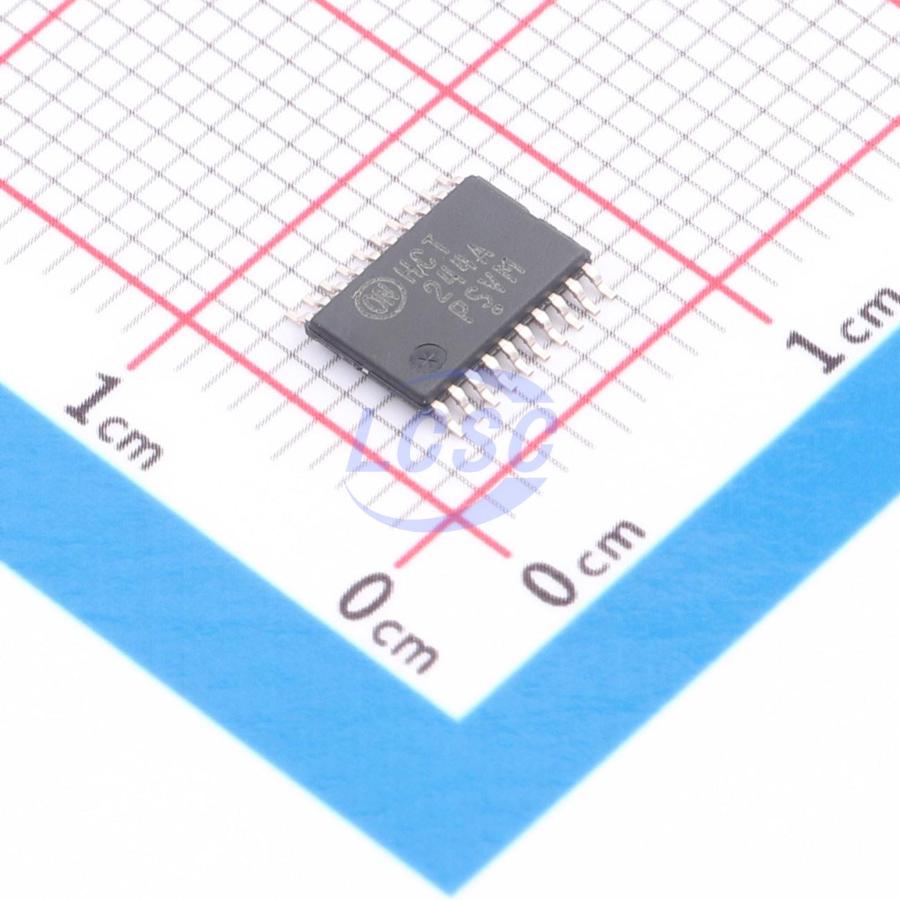

MC74HCT244ADTR2G

The MC74HCT244A is identical in pinout to the LS244. This device may be used as a level converter for interfacing TTL or NMOS outputs to High−Speed CMOS inputs. The HCT244A is an octal noninverting buffer line driver line receiver designed to be used with 3 - state memory address drivers, clock drivers, and other bus−oriented systems. The device has non−inverted outputs and two active−low output enables. The HCT244A is the non−inverting version of the HCT240. See also HCT241.

Key features

• Output Drive Capability: 15 LSTTL Loads
• TTL NMOS−Compatible Input Levels
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1 μA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7 A
• Chip Complexity: 112 FETs or 28 Equivalent Gates
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
