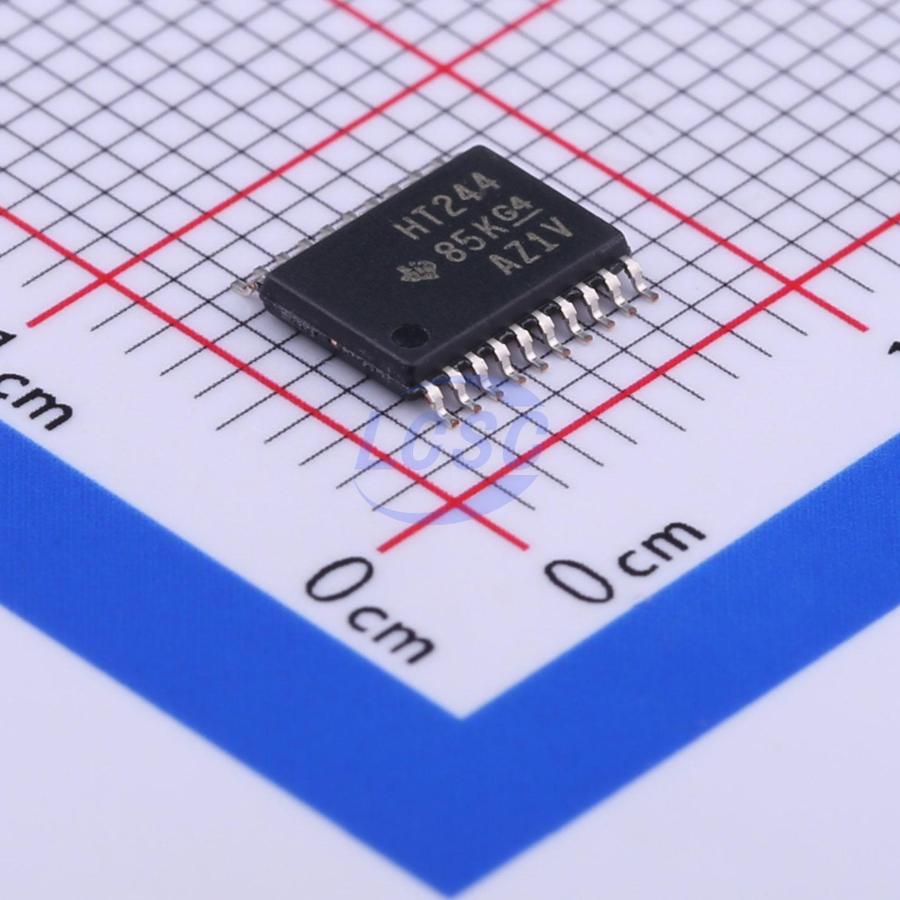

SN74HCT244PWR
2 Element 4 Bit per Element Tri-State Output TSSOP-20
TSSOP-20ROHS3 CompliantActive
OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT244PWR
- Store part #
- C6778
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,270 in stock
#C6778
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.35 | ₹196.75 |
| 50+ | ₹30.50 | ₹1,525.00 |
| 150+ | ₹26.71 | ₹4,006.50 |
| 500+ | ₹21.98 | ₹10,990.00 |
| 2,000+ | ₹19.87 | ₹39,740.00 |
| 4,000+ | ₹18.61 | ₹74,440.00 |
5 × ₹39.35
₹196.75
excl. GST
₹232.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT244PWR
₹196.75 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Series
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 25ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.244 g
Overview
These octal buffers and line drivers are specifically designed to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNx4HCT244 devices feature two 4-bit buffers or drivers with separate output-enable (OE) inputs. When OE is low, the device passes non-inverted data from the A inputs to the Y outputs. When OE is high, the outputs are in a high-impedance state.
Applications
- Servers
- LED displays
- Network switches
- Telecom infrastructure
- Motor drivers
- I/O expanders
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- High - Current Outputs Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical propagation delay time (tpd) = 13 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL - Voltage Compatible
- 3 - State Outputs Drive Bus Lines or Buffer Memory Address Registers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HCT244QPWRQ1#C544591TI · TSSOP-20 | TI | TSSOP-20 | 64 | ₹116.58 · 64 in stock | View |
 | SN74HCT240PWR#C543088TI · TSSOP-20 | TI | TSSOP-20 | 968 | ₹62.59 · 968 in stock | View |
 | 74HCT244PW,118#C131088Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 24,980 | ₹36.01 · 24,980 in stock | View |
 | SN74HCT244PWR(LX)#C41413107lingxingic · TSSOP-20 | lingxingic | TSSOP-20 | 1,835 | ₹20.60 · 1,835 in stock | View |
 | SN74HCT244QPWREP#C2876973TI · TSSOP-20 | TI | TSSOP-20 | 10 | ₹496.18 · 10 in stock | View |
