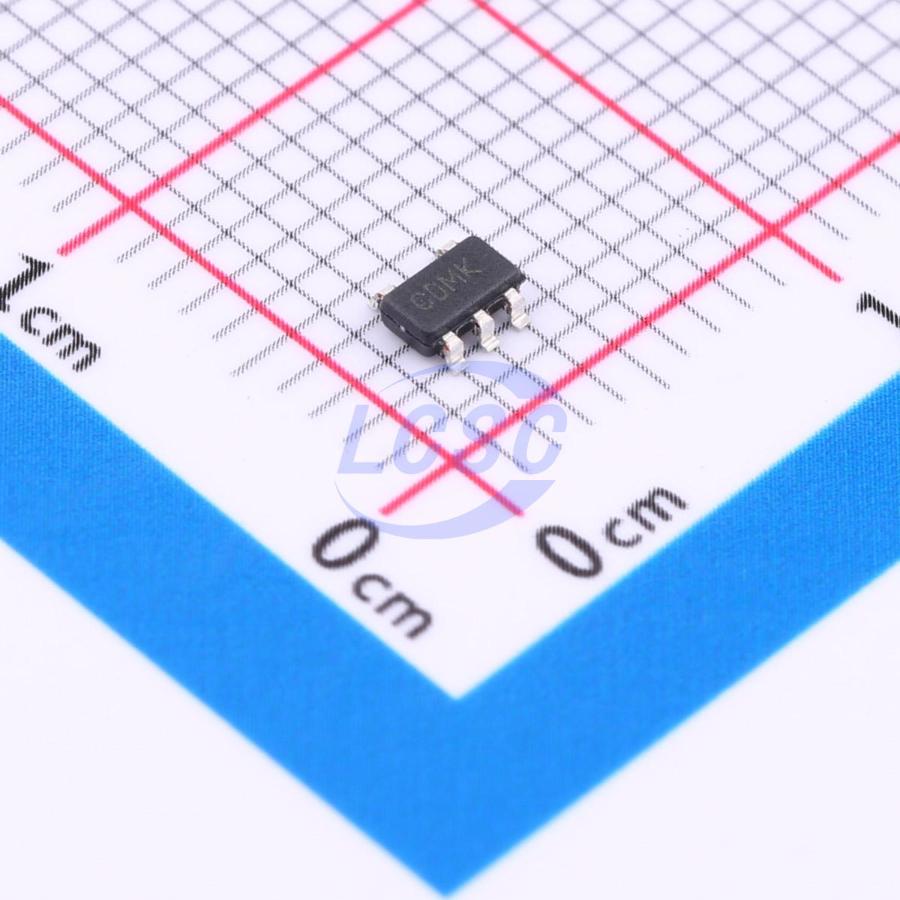

MCP6001T-E/OT

23mA 1 4.5mV 600V/ms 76dB 1pA 1MHz 100uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

1 MHz, Low-Power Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MCP6001T-E/OT
Store part #: C29429
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

45,790 in stock

#C29429

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹48.88	₹244.40
50+	₹37.94	₹1,897.00
150+	₹33.26	₹4,989.00
500+	₹27.41	₹13,705.00
3,000+	₹24.81	₹74,430.00
6,000+	₹23.25	₹1,39,500.00

Quantity (min 5, multiples of 5)

5 × ₹48.88

₹244.40

excl. GST

₹288.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6001T-E/OT

₹244.40 for 5 + GST

Specifications

Output Current: 23mA
Number of Channels: 1
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 100uA
Features: ESD protection
Input Voltage Noise Density: 28nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The MCP6001/2/4 family of operational amplifiers (opamps) is specifically designed for general purpose applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typical). It also maintains a 45° phase margin (typical) with a 500 pF capacitive load. This family operates from a single-supply voltage as low as 1.8V, while drawing 100 μA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a Common-mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of op amps is designed with advanced CMOS process. The MCP6001/2/4 family is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 6.0V.

Applications

Automotive
Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in 5-Lead SC-70 and 5-Lead SOT-23 Packages
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 100 μA (typical)
Phase Margin: 90° (typical)
Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
Available in Single, Dual and Quad Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP6001T-E/OTVAO#C1137458MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	2,530	₹50.57 · 2,530 in stock	View
MCP6001RT-I/OT#C154973MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	20,754	₹66.71 · 20,754 in stock	View
MCP6001T-E/OT(UMW)#C32713104UMW · SOT-23-5	UMW	SOT-23-5	15,870	₹12.98 · 15,870 in stock	View
MCP6001UT-E/OT#C412821MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	13,860	₹68.28 · 13,860 in stock	View
MCP6001RT-E/OT#C623454MICROCHIP · SOT-23-5	MICROCHIP	SOT-23-5	54	₹77.46 · 54 in stock	View
