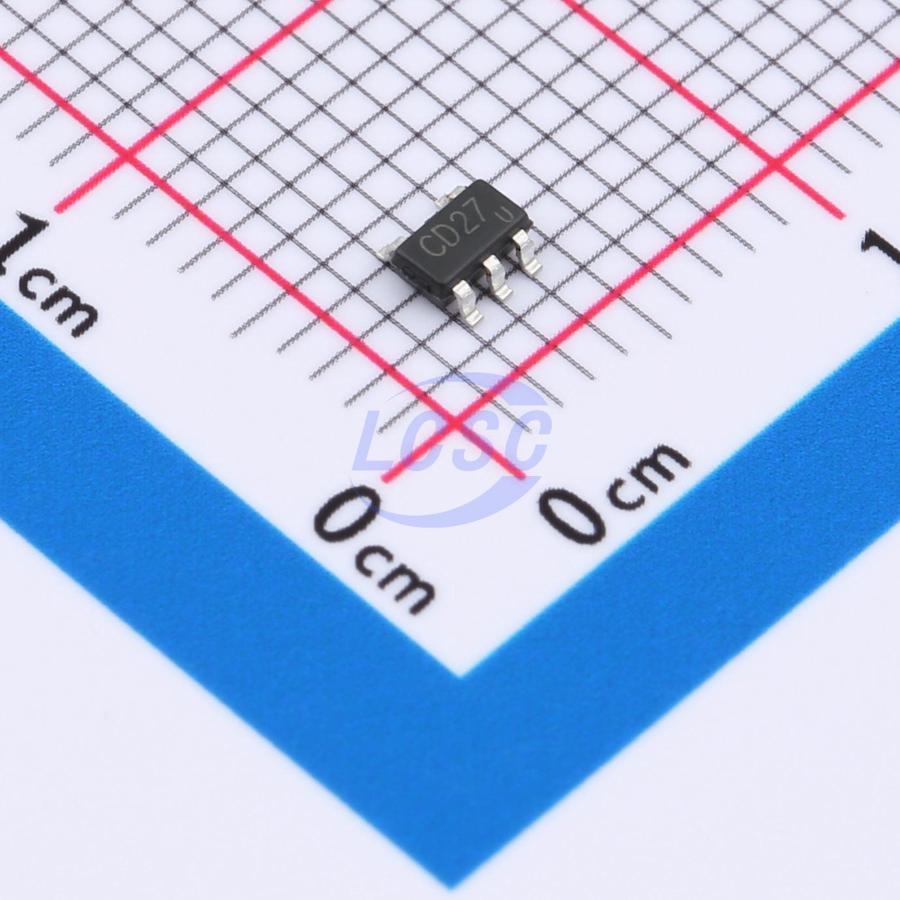

MCP6001T-E/OT(UMW)
23mA 1 4.5mV 600V/ms 1pA 76dB 1MHz 100uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- UMW
- Manufacturer part #
- MCP6001T-E/OT(UMW)
- Store part #
- C32713104
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,870 in stock
#C32713104
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.98 | ₹64.90 |
| 50+ | ₹10.16 | ₹508.00 |
| 150+ | ₹8.75 | ₹1,312.50 |
| 500+ | ₹7.70 | ₹3,850.00 |
| 3,000+ | ₹6.85 | ₹20,550.00 |
| 6,000+ | ₹6.43 | ₹38,580.00 |
5 × ₹12.98
₹64.90
excl. GST
₹76.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP6001T-E/OT(UMW)
₹64.90 for 5 + GST
Specifications
- Output Current
- 23mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4.5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 76dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 100uA
- Input Voltage Noise Density
- 28nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6001T-I/OT(UMW)#C32713103UMW · SOT-23-5 | UMW | SOT-23-5 | 15,280 | ₹12.98 · 15,280 in stock | View |
 | AD8631ARTZ(UMW)#C18207559UMW · SOT23-5 | UMW | SOT23-5 | 1,970 | ₹22.52 · 1,970 in stock | View |
 | TLV313IDBVR(UMW)#C22365322UMW · SOT-23-5 | UMW | SOT-23-5 | 4,910 | ₹15.78 · 4,910 in stock | View |
 | TP321-TR(UMW)#C20754794UMW · SOT-23-5 | UMW | SOT-23-5 | 2,950 | ₹12.95 · 2,950 in stock | View |
 | AD8541ARTZ(UMW)#C18207557UMW · SOT23-5 | UMW | SOT23-5 | 2,040 | ₹30.68 · 2,040 in stock | View |
