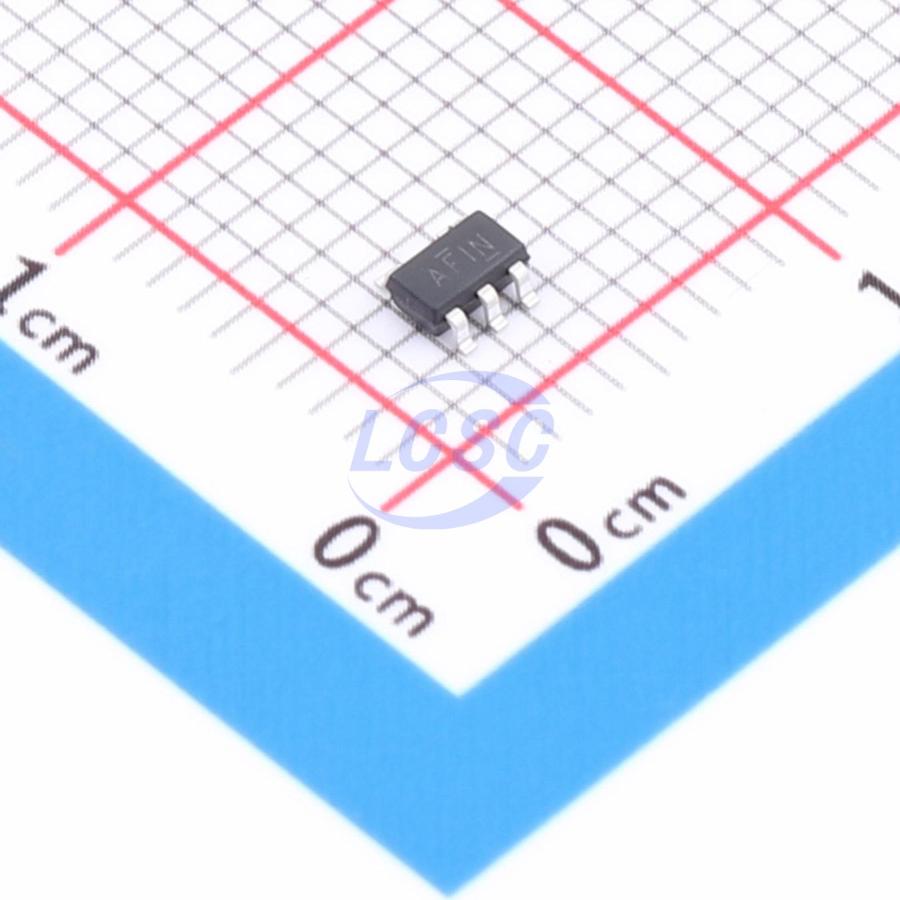

MCP6001UM5/TR
84mA 1 3.5mV 800V/ms 1pA 70dB 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
1MHz CMOS Rail-to-Rail IO Opamp with RF Filter
- Manufacturer
- HGSEMI
- Manufacturer part #
- MCP6001UM5/TR
- Store part #
- C42400734
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,370 in stock
#C42400734
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.73 | ₹68.65 |
| 50+ | ₹10.85 | ₹542.50 |
| 150+ | ₹9.42 | ₹1,413.00 |
| 500+ | ₹8.33 | ₹4,165.00 |
| 3,000+ | ₹7.47 | ₹22,410.00 |
| 6,000+ | ₹7.04 | ₹42,240.00 |
5 × ₹13.73
₹68.65
excl. GST
₹81.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP6001UM5/TR
₹68.65 for 5 + GST
Specifications
- Output Current
- 84mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 800V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 75uA
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -900mV~3V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6001M5/TR#C910875HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | On request | ₹16.05 · 0 in stock | View |
| HGV6001UM5/TR#C42400735HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,940 | ₹13.73 · 2,940 in stock | View | |
| HGV6001M5/TR#C30170089HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 455 | ₹13.73 · 455 in stock | View | |
 | MCP6001UAIM5/TR#C51949664HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,045 | ₹11.93 · 2,045 in stock | View |
 | HGV6001UAIM5/TR#C51949665HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,890 | ₹11.93 · 2,890 in stock | View |
