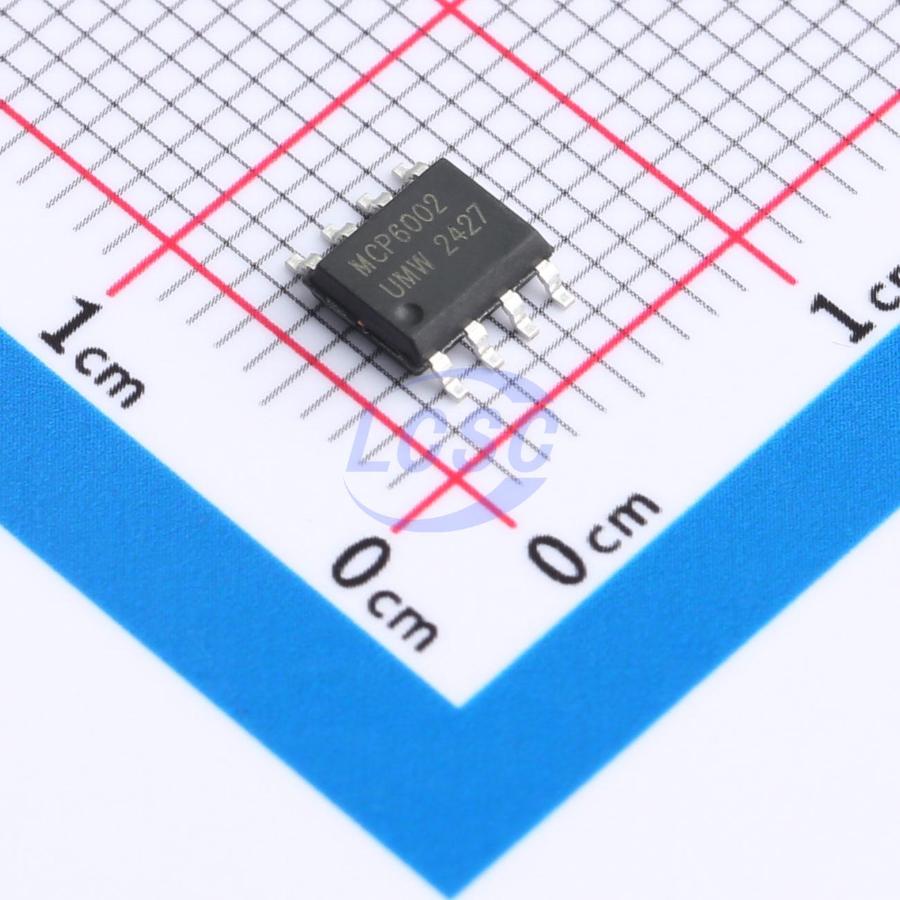

MCP6002T-I/SN(UMW)
23mA 2 4.5mV 600V/ms 1pA 76dB 100uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
1 MHz, Low-Power Op Amp
- Manufacturer
- UMW
- Manufacturer part #
- MCP6002T-I/SN(UMW)
- Store part #
- C32713106
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,230 in stock
#C32713106
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.49 | ₹67.45 |
| 50+ | ₹10.57 | ₹528.50 |
| 150+ | ₹9.10 | ₹1,365.00 |
| 500+ | ₹8.00 | ₹4,000.00 |
| 2,500+ | ₹7.13 | ₹17,825.00 |
| 5,000+ | ₹6.69 | ₹33,450.00 |
5 × ₹13.49
₹67.45
excl. GST
₹79.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MCP6002T-I/SN(UMW)
₹67.45 for 5 + GST
Specifications
- Output Current
- 23mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4.5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 76dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 100uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 28nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
