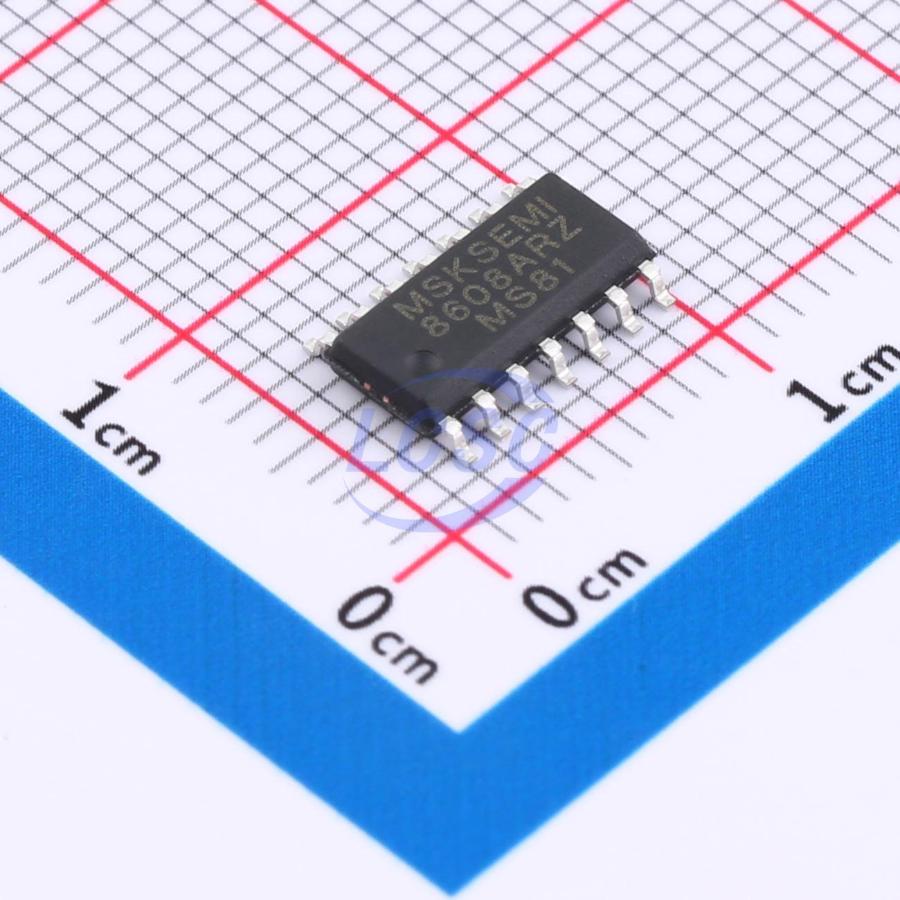

MSAD8608ARZ-REEL7

26mA 4 2.5mV 6V/us 95dB 10pA 510uA 8MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MSAD8608ARZ-REEL7
Store part #: C49208534
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,402 in stock

#C49208534

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹53.89	₹53.89
10+	₹48.02	₹480.20
30+	₹44.98	₹1,349.40
100+	₹42.15	₹4,215.00
500+	₹38.46	₹19,230.00
1,000+	₹37.59	₹37,590.00

Quantity (min 1)

1 × ₹53.89

₹53.89

excl. GST

₹63.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MSAD8608ARZ-REEL7

₹53.89 for 1 + GST

Specifications

Output Current: 26mA
Number of Channels: 4
Vos - Input Offset Voltage: 2.5mV
Slew Rate: 6V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 600nV/℃
Quiescent Current: 510uA
Gain Bandwidth Product: 8MHz
Input Voltage Noise Density: 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.286 g

Overview

The MSAD860x series offers low-voltage operation and rail-to-rail input/output, along with an excellent speed-to-power ratio — delivering 8MHz bandwidth, 6.5V/μs slew rate, and 510μA quiescent current per amplifier at 5V. The op-amps are unity-gain stable and feature ultralow input bias current. The MSAD860x is designed to deliver performance in low-voltage systems. They provide rail-to-rail input/output with a maximum input offset voltage of 2.5mV. They also exhibit strong capacitive load drive capability at low supply voltages. Operating voltage range is 2.2V to 5.5V. The MSAD860x series op-amps are specified over the full temperature range of -40°C to +85°C on single or dual supplies from 2.2V to 5.5V.

Applications

Photodiode amplification
Active filters and buffers
Battery-powered electronics
Sensors
Test equipment

Key features

Input Offset Voltage: 2.5mV (maximum)
Supply Current: 510μA/channel
Supply Voltage Range: 2.2V to 5.5V
Gain Bandwidth: 8MHz
Slew Rate: 6.5V/μs
Rail-to-Rail Input and Output
Compact Packages: MSAD8605ARTZ-REEL7: SOT-23-5; MSAD8606ARZ: SOP-8; MSAD8608ARZ-REEL7: SOP-14
