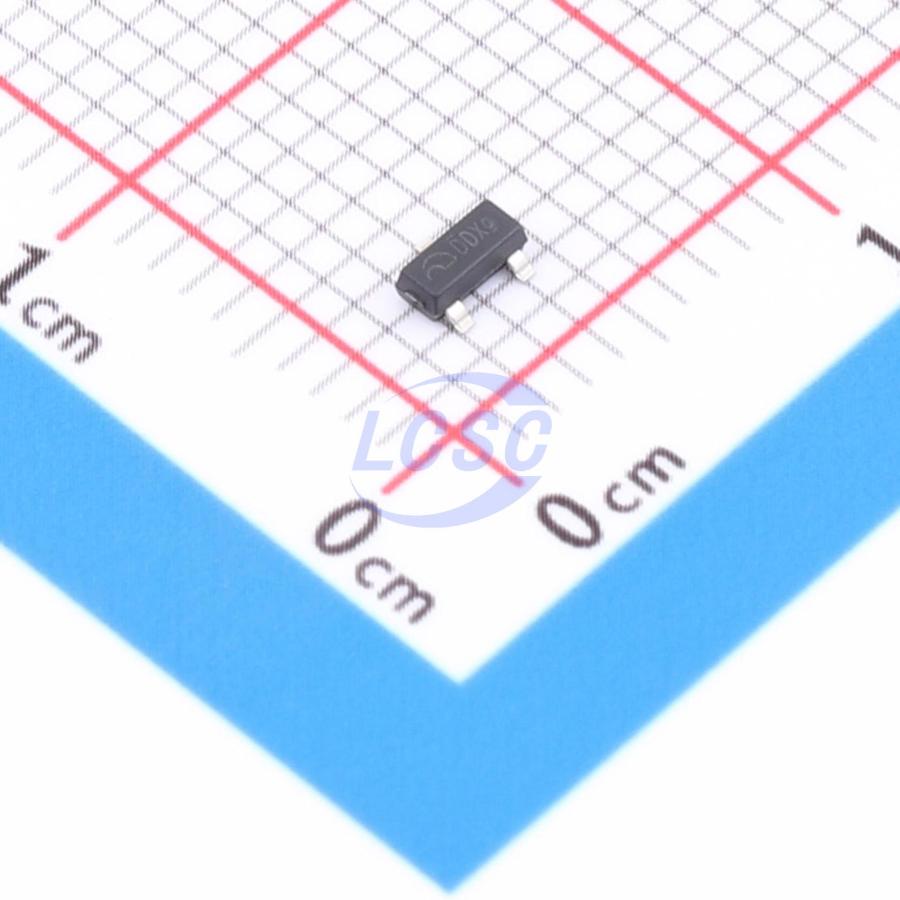

ME6206B28XG
7uA 250mA 70dB@(100Hz) 5.5V Fixed 2.8V Positive 1 SOT-23 AC DC Converters, Offline Switchers
SOT-23RoHSActive
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206B28XG
- Store part #
- C5565412
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C5565412
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.59 | ₹31.80 |
| 200+ | ₹1.55 | ₹310.00 |
| 600+ | ₹1.52 | ₹912.00 |
| 3,000+ | ₹1.49 | ₹4,470.00 |
20 × ₹1.59
₹31.80
excl. GST
₹37.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206B28XG
₹31.80 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 7uA
- Output Current
- 250mA
- Power Supply Rejection Ratio (PSRR)
- 70dB@(100Hz)
- Voltage - Supply
- 5.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
- Output Voltage
- 2.8V
- Output Configuration
- Positive
- Number of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
The ME6206B series are CMOS step-down voltage regulators featuring high ripple rejection ratio, low power consumption, low dropout voltage, and overcurrent/short-circuit protection.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Electronic equipment
- Automotive electronics
- Voltage reference sources
Key features
- High-precision output voltage: ±2%
- Output voltage range: 1.5V~5.0V
- Maximum operating voltage: 5.5V
- Ultra-low quiescent current: 7.0μA typical
- Strong load capability: IOUT=250mA at VIN=4.3V and VOUT=3.3V
- Ultra-low dropout voltage: 0.2V (at 100mA), 0.4V (at 200mA, Vout=3.3V)
- Good input stability
- Low temperature coefficient
- Usable as both regulator and voltage reference
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6216A28M3G#C236658MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 1,550 | ₹7.44 · 1,550 in stock | View |
 | ME6211A28M3G-N#C236676MICRONE · SOT-23 | MICRONE | SOT-23 | 340 | ₹8.82 · 340 in stock | View |
 | ME6206A28M3G#C78995MICRONE · SOT-23-3L | MICRONE | SOT-23-3L | 1,780 | ₹7.20 · 1,780 in stock | View |
 | ME6216A28XG#C427601MICRONE · SOT-23 | MICRONE | SOT-23 | 3,200 | ₹5.08 · 3,200 in stock | View |
 | ME6206A28XG#C236702MICRONE · SOT-23 | MICRONE | SOT-23 | 9,960 | ₹5.24 · 9,960 in stock | View |
