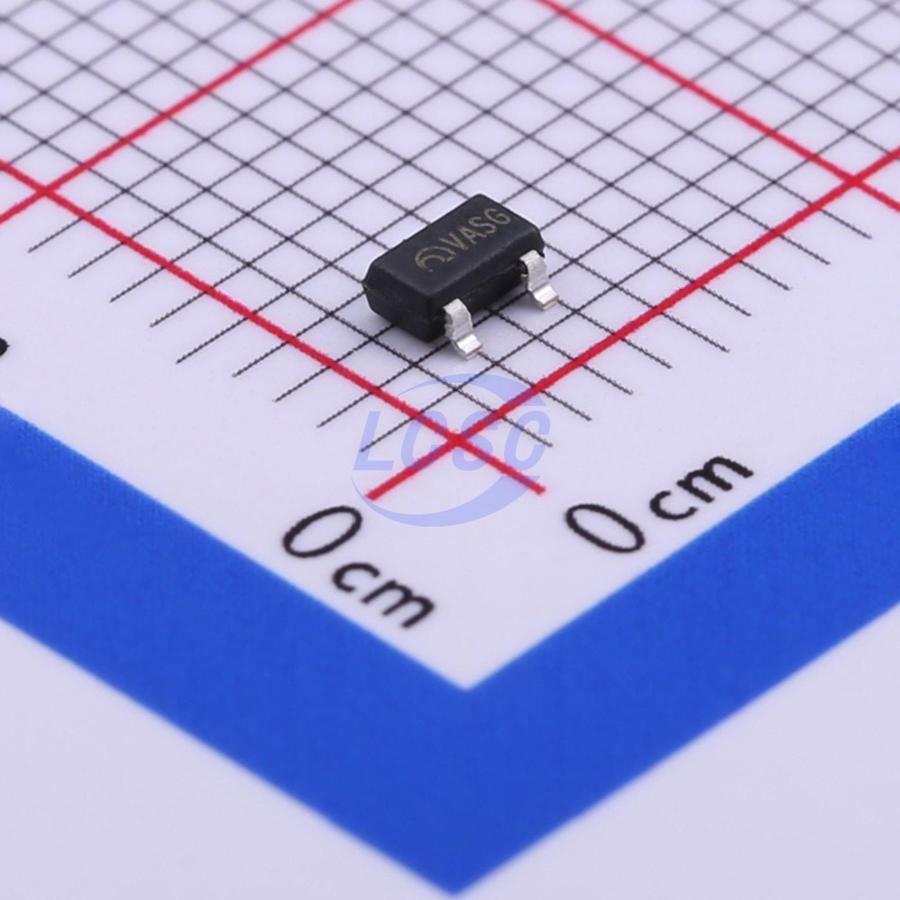

ME6249A33M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3ROHS CompliantActive
250mA LDO with 18V voltage withstand and output overshoot protection
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6249A33M3G
- Store part #
- C427606
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,830 in stock
#C427606
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.47 | ₹74.70 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.21 | ₹1,563.00 |
| 3,000+ | ₹4.41 | ₹13,230.00 |
| 6,000+ | ₹3.94 | ₹23,640.00 |
| 9,000+ | ₹3.72 | ₹33,480.00 |
10 × ₹7.47
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6249A33M3G
₹74.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
ME6249 is a low dropout, low power linear regulator fabricated using CMOS process, with an integrated voltage reference, error amplifier, and feedback resistor network. The ME6249 supports an input voltage up to 18V and an output current up to 250mA. The internal feedback voltage enables fixed output voltage setting, with an output voltage range of 1.8V to 5.0V. An output overshoot protection circuit ensures no significant overshoot during hot-plug power-on.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Output voltage overshoot protection
- High input voltage: up to 18V
- Low quiescent current: 3uA (Typ)
- Output voltage accuracy: ±1%
- Output current: IOUT=250mA (VIN=4.3V & VOUT=3.3V)
- Low temperature coefficient
- Stable output with low ESR ceramic capacitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6209A33M3G#C83508MICRONE · SOT-23-3L | MICRONE | SOT-23-3L | 1,02,510 | ₹8.53 · 1,02,510 in stock | View |
 | ME6231A33M3G#C2765181MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 1,16,330 | ₹12.30 · 1,16,330 in stock | View |
 | ME6210A33M3G#C236680MICRONE · SOT23-3 | MICRONE | SOT23-3 | 17,630 | ₹8.82 · 17,630 in stock | View |
 | ME6214A33M3G#C427598MICRONE · SOT-23-3 | MICRONE | SOT-23-3 | 36,030 | ₹11.35 · 36,030 in stock | View |
 | ME6239A33M3G#C151879MICRONE · SOT-23 | MICRONE | SOT-23 | 7,295 | ₹11.17 · 7,295 in stock | View |
