MICRONEDatasheet (PDF)

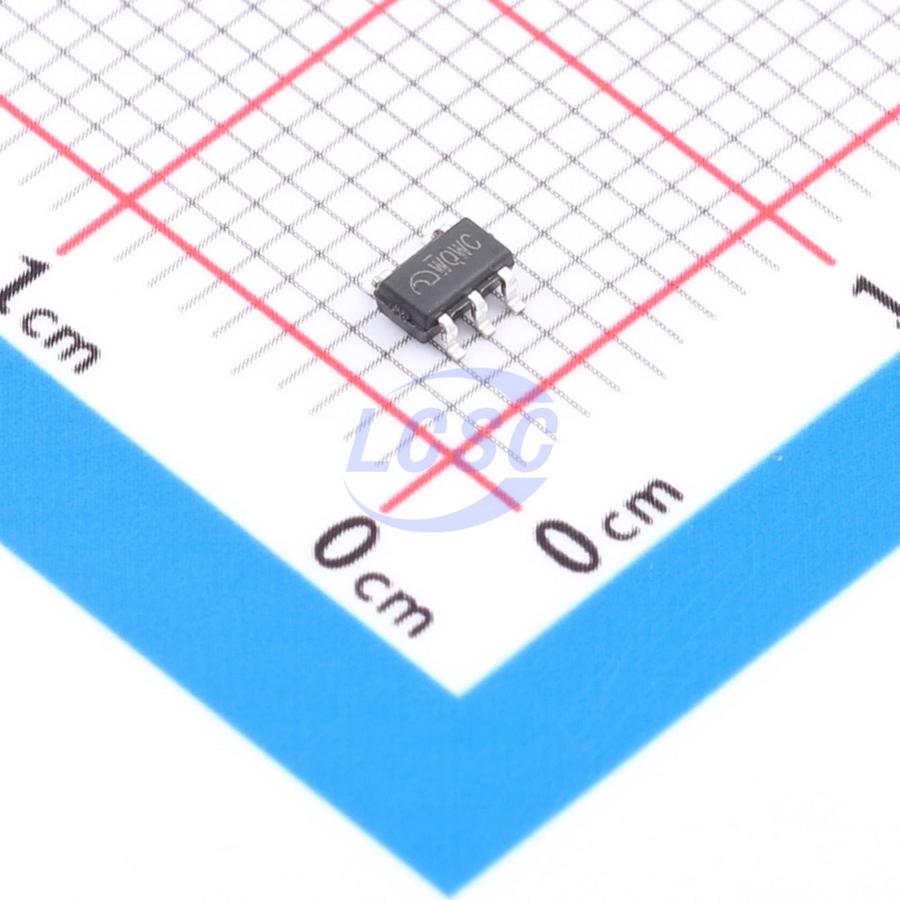

ME6301C33M5G
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6301C33M5G
- Store part #
- C2983860
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,825 in stock
#C2983860
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.34 | ₹81.70 |
| 50+ | ₹12.90 | ₹645.00 |
| 150+ | ₹11.17 | ₹1,675.50 |
| 500+ | ₹9.88 | ₹4,940.00 |
| 3,000+ | ₹8.84 | ₹26,520.00 |
| 6,000+ | ₹8.32 | ₹49,920.00 |
| 9,000+ | ₹8.22 | ₹73,980.00 |
| 21,000+ | ₹8.15 | ₹1,71,150.00 |
5 × ₹16.34
₹81.70
excl. GST
₹96.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6301C33M5G
₹81.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 18uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 5.5V
- Features
- Enable control;Built-in soft-start;Thermal shutdown;Over Current Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.812 g
Overview
The ME6301 is an ultra-low noise, high PSRR LDO linear regulator capable of delivering 250mA output current. When used with 1μF input and 1μF output ceramic capacitors, it achieves excellent noise performance without additional noise bypass capacitors, saving board space. The device is suitable for noise-sensitive applications such as high-performance analog circuits. The output can be disabled via the on-chip enable pin, with 0μA shutdown current consumption. The device integrates soft-start, thermal protection, and current limiting protection, housed in compact DFN1×1-4 and SOT23-5 packages.
Applications
- A/D and D/A converter power supply
- Camera modules
- Audio codecs
- Precision analog circuits
- RF products
- Battery-powered devices
Key features
- High ripple rejection ratio: 98dB@1KHz (output current = 20mA)
- Low noise: 10μV RMS
- Operating voltage range: 1.9V~5.5V
- Output voltage range: 1.2V~5.0V
- Maximum output current: 250mA (input voltage = 4.3V, output voltage = 3.3V)
- Low dropout: 124mV@ output current = 250mA
- High output accuracy: ±1%
- Low quiescent current: 18μA (typical)
- Shutdown current: 0μA (typical)
- Built-in thermal protection and current limiting protection
