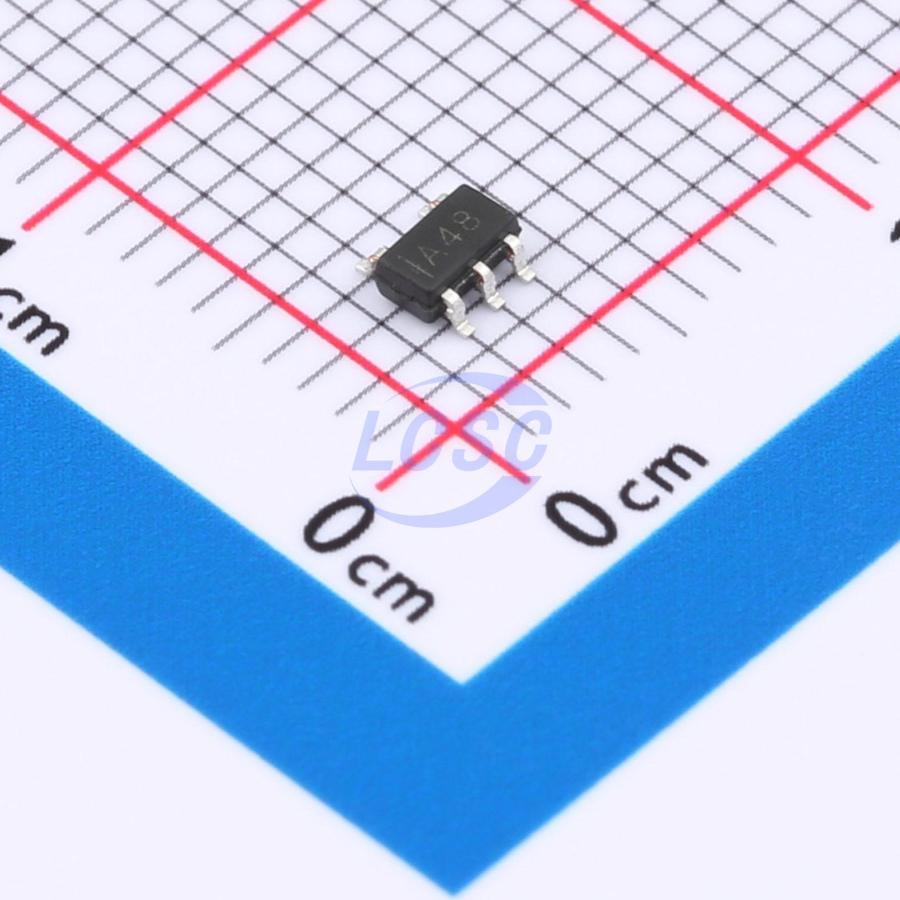

OPA348AIDBVR-MS

1 3mV 1.2V/us 95dB 2pA 28uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

CMOS Operational Amplifiers: Low Offset Voltage, Near-Zero Drift, Miniature High-Precision Amplifiers

Manufacturer: MSKSEMI
Manufacturer part #: OPA348AIDBVR-MS
Store part #: C30197564
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,160 in stock

#C30197564

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.51	₹117.55
50+	₹18.20	₹910.00
150+	₹15.93	₹2,389.50
500+	₹13.08	₹6,540.00
2,500+	₹12.57	₹31,425.00
5,000+	₹11.80	₹59,000.00

Quantity (min 5, multiples of 5)

5 × ₹23.51

₹117.55

excl. GST

₹138.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA348AIDBVR-MS

₹117.55 for 5 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 650nV/℃
Quiescent Current: 28uA
Gain Bandwidth Product: 1.5MHz
Features: Zero drift / auto-zero;Built-in compensation
Dual Supply: -1.35V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The OPA348AIDBVR-MS/OPA348AIDCKR-MS is a CMOS operational amplifier that uses the proprietary auto-calibration technique to simultaneously provide very low offset voltage, near-zero drift over time and temperature. This miniature, high-precision, low quiescent current amplifiers offer high-impedance inputs that have a common-mode range 200mV beyond the rails, and rail-to-rail output that swings within 50mV of the rails, single or dual supplies as low as 2.1V(±1.35V) and up to 5.5V(±2.75V) can be used. This device is optimized for low voltage, single supply operation. The OPA348AIDBVR-MS/OPA348AIDCKR-MS offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADC) without degradation of differential linearity. The OPA348AIDBVR-MS/OPA348AIDCKR-MS is available in the 5-pin SOT-23-5 and SC70-5 packages, and specified for operation from -40°C to 125°C.

Applications

Transducers
Temperature Measurement
Electronic Scales
Medical instrumentation
Handheld Test Equipment

Key features

VDD range: 2.1V to 5.5V
Low Offset Voltage: 0.5mV (Typical)
Low Drift: 0.65μV/°C (Typical)
Low Noise
Quiescent Current: 28μA
Rail to Rail Input/Output
MicroSize Packages: SC70-5 and SOT23-5
